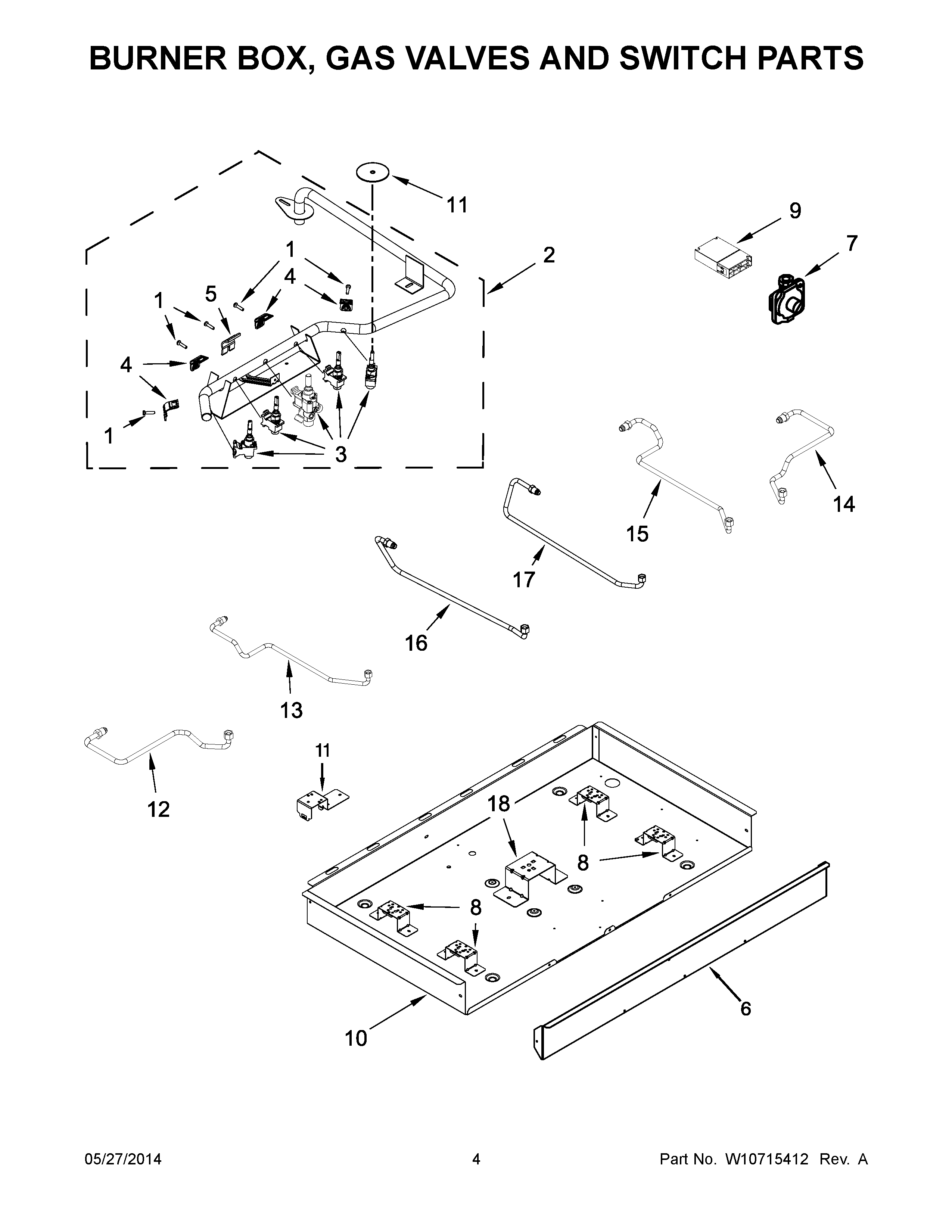

KCGS356ESS00 03 – BURNER BOX, GAS VALVES AND SWITCH PARTS

KCGS356ESS00 03 – BURNER BOX, GAS VALVES AND SWITCH PARTS

Written by

in

KCGS356ESS00 03 – BURNER BOX, GAS VALVES AND SWITCH PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW10685483 Whirlpool Range Griddle
NIW11561436 Whirlpool Spark Ignition Switch and Harness
NISeal, Foam
NIW10676661 Whirlpool Cooktop Spud Orifice
NIW10132200 Whirlpool Strain Relief
NIW10392003 Whirlpool Power Cord
NI16515 Whirlpool Clip
18287057 Whirlpool Oven Screw
2W11676622 Whirlpool Manifold
3W11246817 Whirlpool Burner Valve
3W11712403 Whirlpool Gas Valve
3W11677628 Whirlpool Microwave Gas Valve
3W10859922 Whirlpool Gas Valve
3W11256503 Whirlpool Gas Valve Assembly
48287055 Whirlpool Oven Mounting Bracket
58287056 Whirlpool Oven Mounting Bracket
6W10718141 Whirlpool Manifold Panel
7W11087445 Whirlpool Pressure Regulator
8W10594429 Whirlpool Mounting Bracket
9WPW10475149 Whirlpool Spark Module
10BOX, BURNER
11W10140571 Whirlpool Seal Switch
12W10566305 Whirlpool Gas Tubing
13W10566306 Whirlpool Gas Tubing Assembly
14W10566308 Whirlpool Gas Tubing
15W10566307 Whirlpool Gas Tubing
16W10566296 Whirlpool Gas Tubing
17W10566297 Whirlpool Gas Tubing
18W10594430 Whirlpool Mounting Bracket
