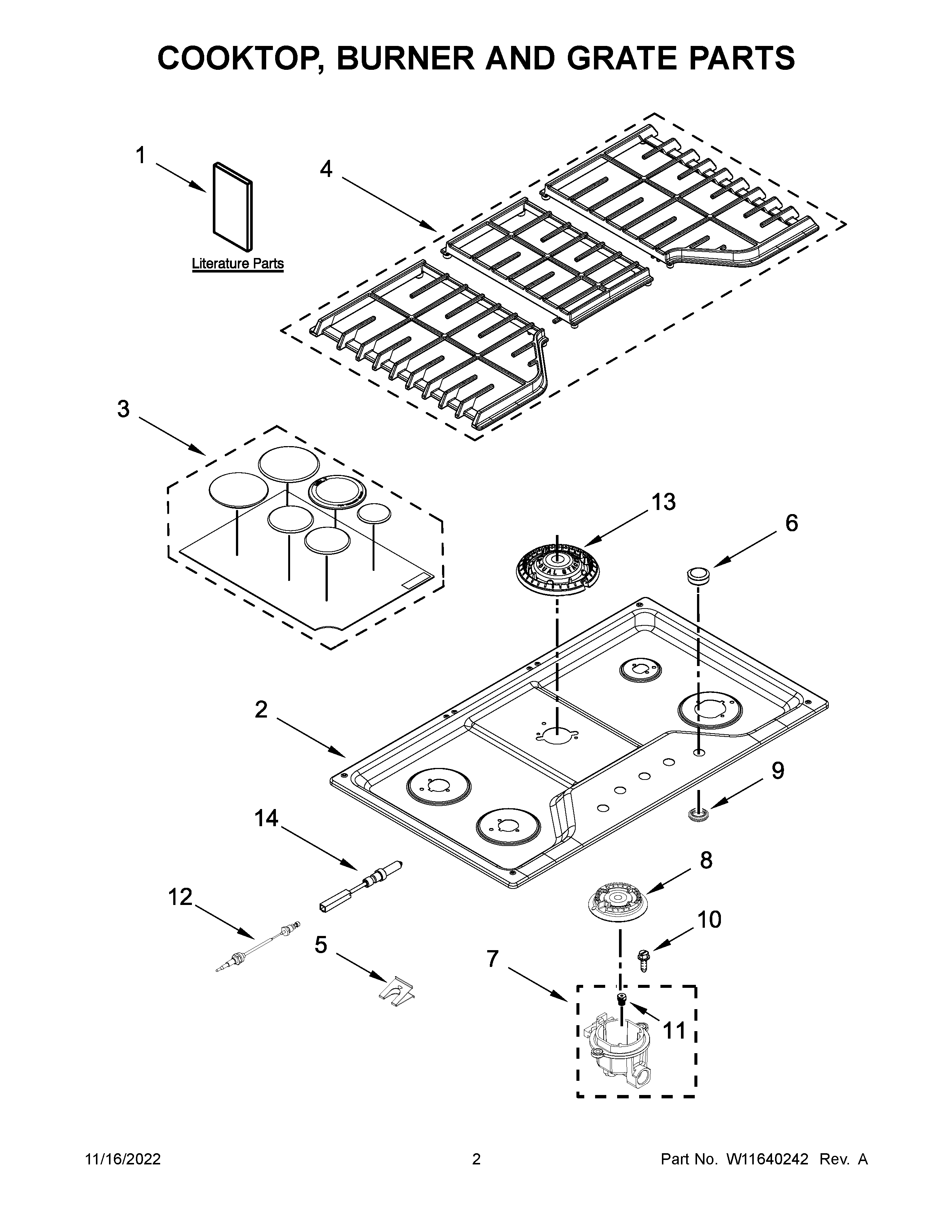

KCGS356ESS05 02 – COOKTOP, BURNER AND GRATE PARTS

KCGS356ESS05 02 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

KCGS356ESS05 02 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1OWNER'S MANUAL
1AQUICK START GUIDE
2W11176110 Whirlpool Cooktop Main Top
3CAP-BURNER
4W11334474 Whirlpool Grate Kit
58286863 Whirlpool Oven Clip
6WPW10545849 Whirlpool Knob
7CW10639869 Whirlpool Orifice Holder
7W10597166 Whirlpool Orifice Holder
7AW10594405 Whirlpool Orifice Holder
7BW10594399 Whirlpool Orifice Holder
8AWP8286815 Whirlpool Burner Head
8BWP8286813 Whirlpool Burner Head
8WP8286814 Whirlpool Burner Head
9W11206740 Whirlpool Grommet
10W11699921 Whirlpool Screw
11BW10791082 Whirlpool Spud Orifice
11W10652710 Whirlpool Orifice Spud
11AW10791079 Whirlpool Orifice Spud
11CW10409146 Whirlpool Orifice Spud
11DW10652706 Whirlpool Spud Orifice
12W11507531 Whirlpool Surface Igniter Assembly
12AW11507532 Whirlpool Surface Igniter
13W10811599 Whirlpool Burner Head
14W10852959 Whirlpool Surface Igniter
