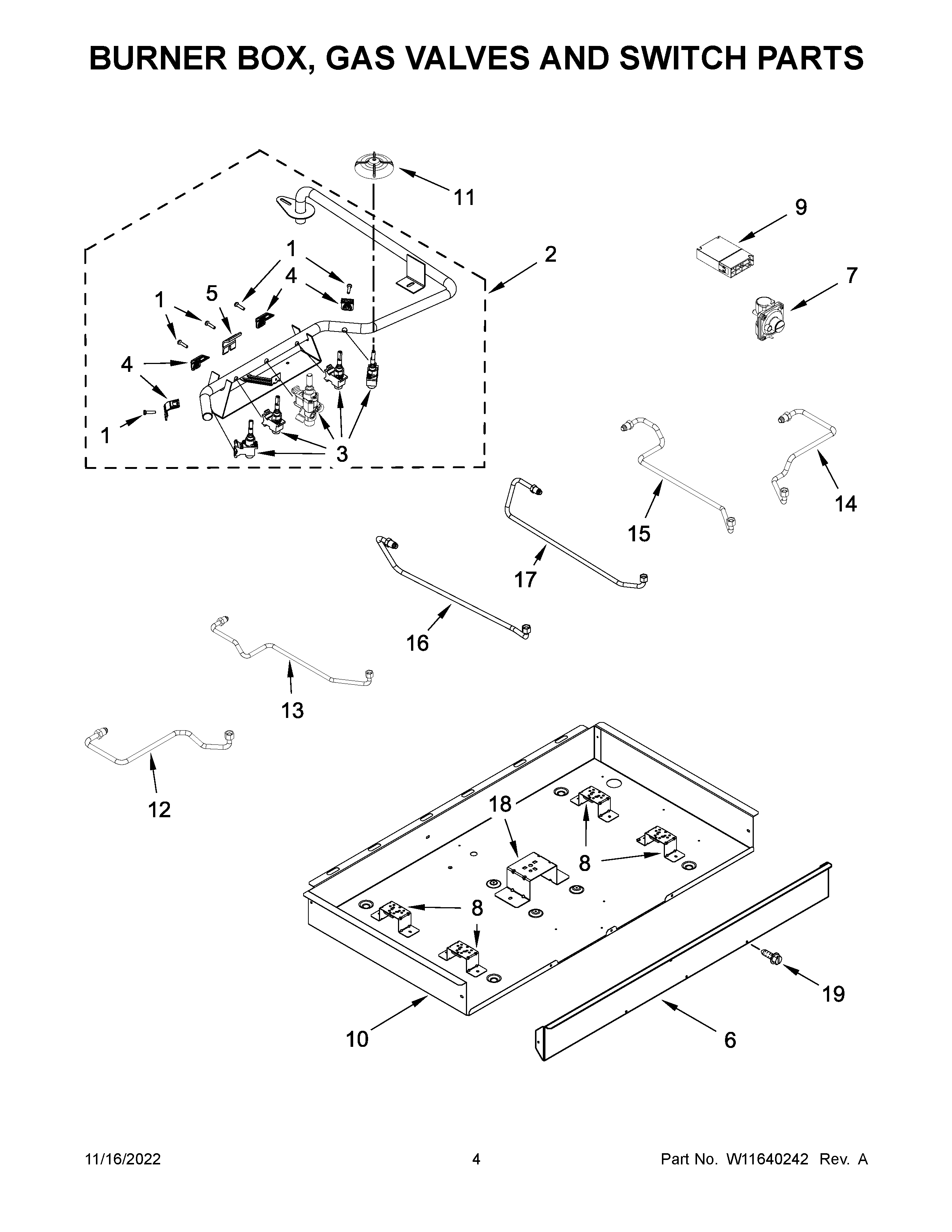

KCGS356ESS05 03 – BURNER BOX, GAS VALVES AND SWITCH PARTS

Products

Position	Product
NI	WP3400015 Whirlpool Screw
NI	TAPE, FOAM
NI	ACCESSORY PARTS, SPRAY, STAINLESS STEEL CLEANING
NI	W11637584 Whirlpool Wire Harness
NI	W10676661 Whirlpool Cooktop Spud Orifice
NI	W11561436 Whirlpool Spark Ignition Switch and Harness
NI	16515 Whirlpool Clip
NI	9760045 Whirlpool Oven Foam Seal
NI	W10132200 Whirlpool Strain Relief
NI	W10392003 Whirlpool Power Cord
NI	BRACKET, MOUNTING
NI	CABINET (NOT A SERVICEABLE PART)
NI	SCREW
1	8287057 Whirlpool Oven Screw
2	W11676622 Whirlpool Manifold
3D	W11246817 Whirlpool Burner Valve
3C	W11712403 Whirlpool Gas Valve
3B	W10859922 Whirlpool Gas Valve
3A	W11256503 Whirlpool Gas Valve Assembly
3	W11677628 Whirlpool Microwave Gas Valve
4	8287055 Whirlpool Oven Mounting Bracket
5	8287056 Whirlpool Oven Mounting Bracket
6	W10718141 Whirlpool Manifold Panel
7	W11087445 Whirlpool Pressure Regulator
8	W10594429 Whirlpool Mounting Bracket
9	WPW10475149 Whirlpool Spark Module
10	BOX, BURNER
11	W11507167 Whirlpool Switch Seal
12	W10566305 Whirlpool Gas Tubing
13	W10566306 Whirlpool Gas Tubing Assembly
14	W10566308 Whirlpool Gas Tubing
15	W10566307 Whirlpool Gas Tubing
16	W10566296 Whirlpool Gas Tubing
17	W10566297 Whirlpool Gas Tubing
18	W10594430 Whirlpool Mounting Bracket
19	WP3196557 Whirlpool Screw
