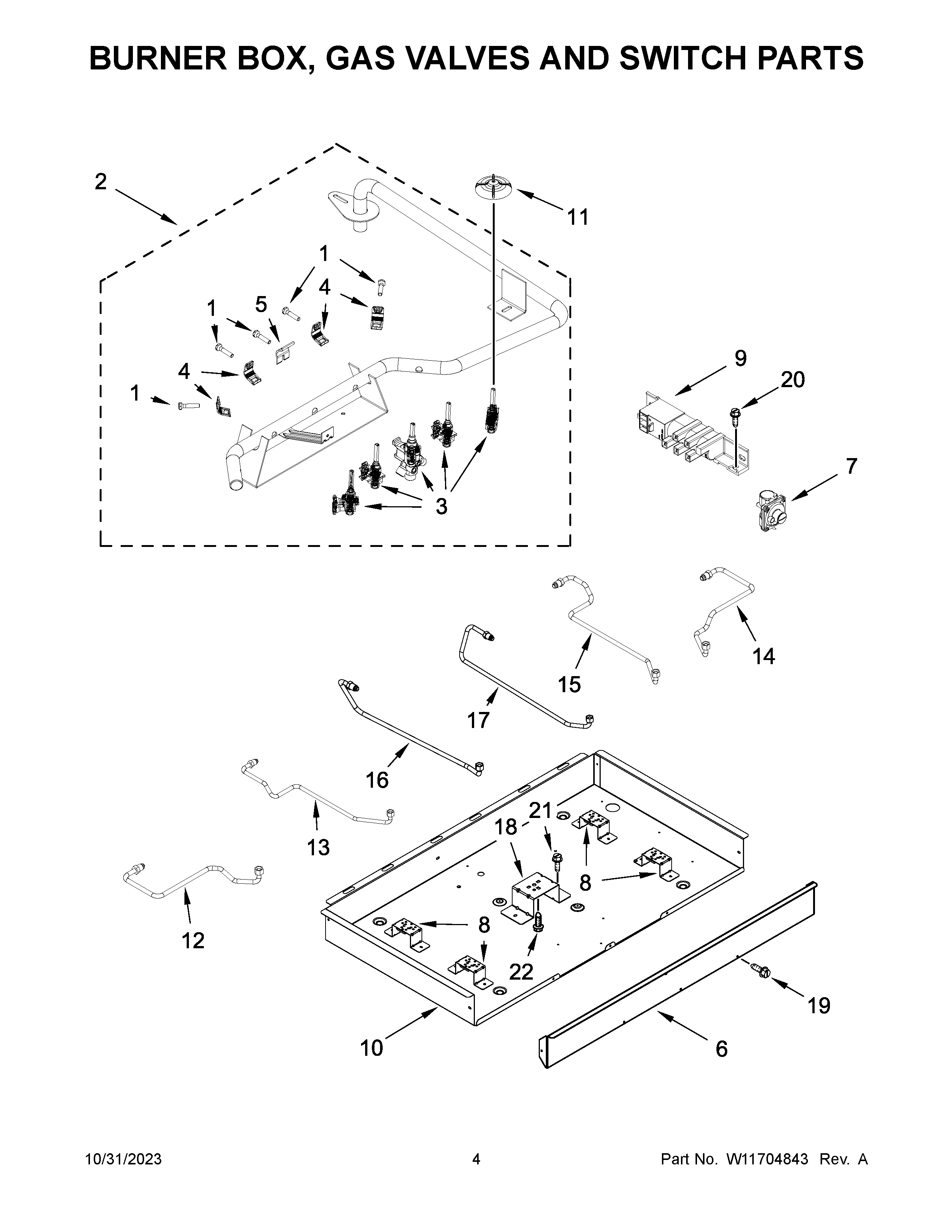

KCGS356ESS06 03 – BURNER BOX, GAS VALVES AND SWITCH PARTS

Products

PositionProduct
18287057 Whirlpool Oven Screw
2PIPE MANIFOLD ASSEMBLY
3AVALVE, SINGLE (LEFT REAR)
3BW11706290 Whirlpool Gas Valve
3VALVE, SINGLE (LEFT FRONT)
3CVALVE, SINGLE (RIGHT REAR)
3DVALVE, DUAL (CENTER)
48287055 Whirlpool Oven Mounting Bracket
58287056 Whirlpool Oven Mounting Bracket
6W10718141 Whirlpool Manifold Panel
7W11087445 Whirlpool Pressure Regulator
8W10594429 Whirlpool Mounting Bracket
9W11703692 Whirlpool Speaker Module
10BOX, BURNER
11W11507167 Whirlpool Switch Seal
12W10566305 Whirlpool Gas Tubing
13W10566306 Whirlpool Gas Tubing Assembly
14W10566308 Whirlpool Gas Tubing
15W10566307 Whirlpool Gas Tubing
16W10566296 Whirlpool Gas Tubing
17W10566297 Whirlpool Gas Tubing
18W10594430 Whirlpool Mounting Bracket
19WP3196557 Whirlpool Screw
20SCREW
21W10443110 Whirlpool Screw
22W11676349 Whirlpool Screw
