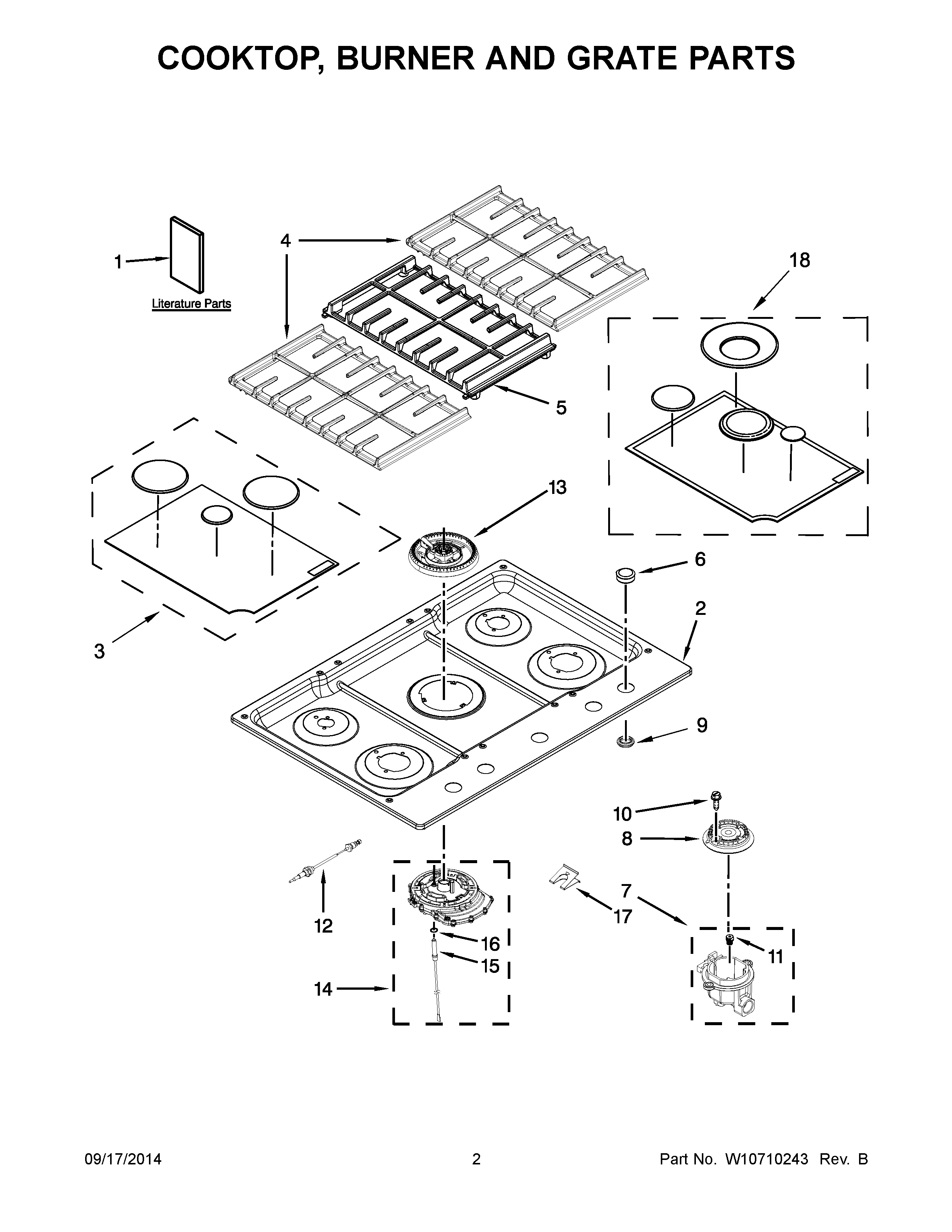

KCGS550ESS00 02 – COOKTOP, BURNER AND GRATE PARTS

KCGS550ESS00 02 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

KCGS550ESS00 02 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW10617403 Whirlpool Insulation
1DSafer Cooking Tips (French)
1CSAFER COOKING TIPS (ENGLISH
1AUNDERCOUNTER INSTALL INSTRUCTIONS
1INSTALLATION INSTRUCTIONS
1BUSE & CARE GUIDE
2W10722084 Whirlpool Cooktop
3W10814915 Whirlpool Surface Burner Cap
4W10583860 Whirlpool Grate Kit
5W10583862 Whirlpool Burner Grate
6WPW10545849 Whirlpool Knob
7BW10674919 Whirlpool Orifice Holder
7AW10674918 Whirlpool Holder Orifice
7W10674920 Whirlpool Orifice Holder
8WP8286815 Whirlpool Burner Head
8AWP8286813 Whirlpool Burner Head
8BWP8286814 Whirlpool Burner Head
9BEZEL-KNOB
10WP8287059 Whirlpool Screw
11AORIFICE (6K) (LEFT REAR)
11BW11727825 Whirlpool Spud Orifice
11W10674732 Whirlpool Orifice Spud
12AW11507532 Whirlpool Surface Igniter
12W11507531 Whirlpool Surface Igniter Assembly
13W10836409 Whirlpool Burner Head
14W10625853 Whirlpool Orifice Holder
15W11610134 Whirlpool Surface Igniter
16W10416057 Whirlpool Ring Assembly
178286863 Whirlpool Oven Clip
18W10811958 Whirlpool Surface Burner Cap
