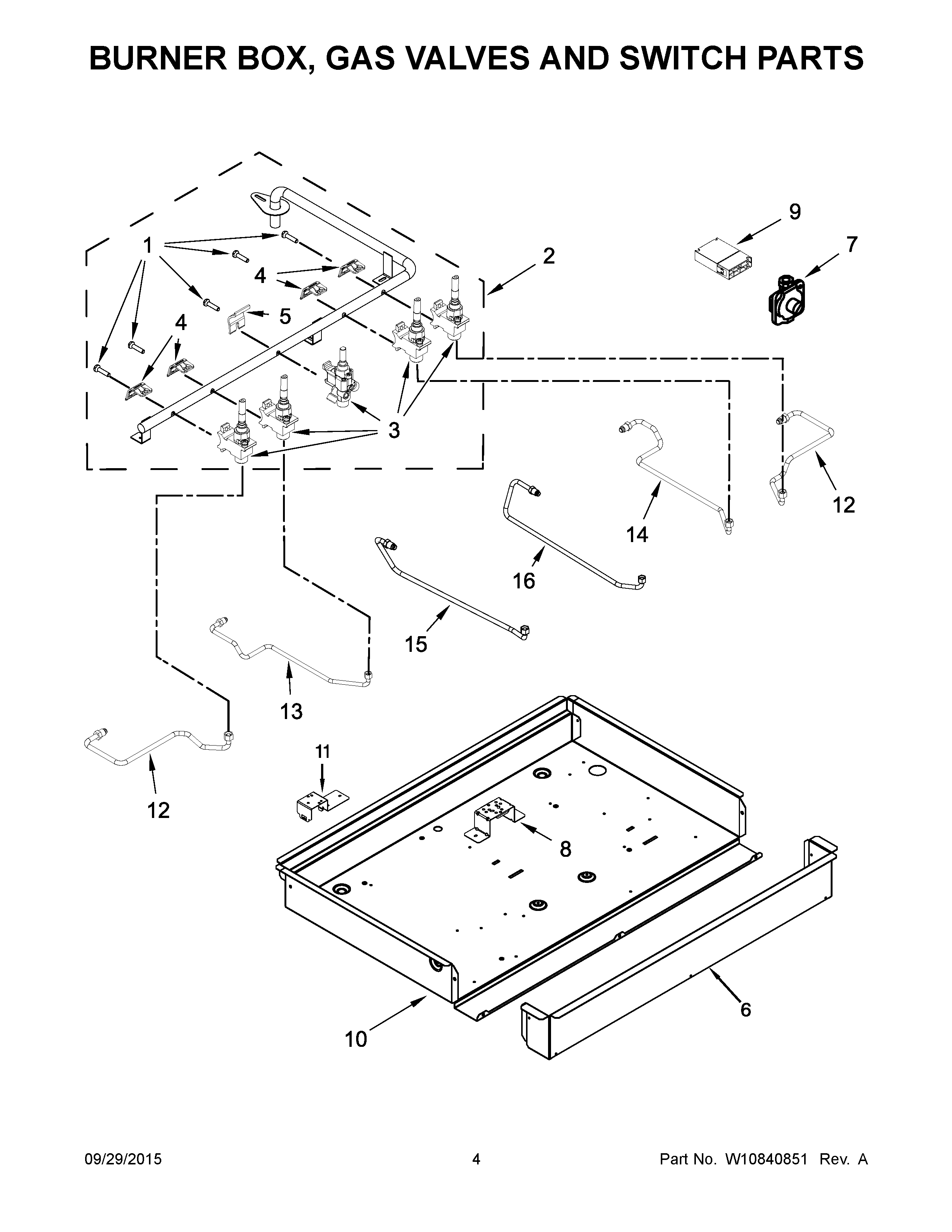

KCGS550ESS01 03 – BURNER BOX, GAS VALVES AND SWITCH PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	GRIDDLE KIT
NI	W10853432 Whirlpool Orifice Spud
NI	W10868536 Whirlpool Microwave Wire Harness
NI	SEAL, MANIFOLD
NI	W10132200 Whirlpool Strain Relief
NI	W10392003 Whirlpool Power Cord
1	8287057 Whirlpool Oven Screw
2	W10682072 Whirlpool Manifold
3C	W11199023 Whirlpool Burner Valve
3B	W10717628 Whirlpool Gas Valve
3A	W10617357 Whirlpool Gas Valve
3	W11209791 Whirlpool Gas Valve
4	8287055 Whirlpool Oven Mounting Bracket
5	8287056 Whirlpool Oven Mounting Bracket
6	PANEL, FRONT
7	W11087445 Whirlpool Pressure Regulator
8	W10594429 Whirlpool Mounting Bracket
9	WPW10475149 Whirlpool Spark Module
10	BOX, BURNER
11	W10545802 Whirlpool Mounting Bracket
12	W10545796 Whirlpool Gas Tubing
13	W10545797 Whirlpool Gas Tubing
14	W10545798 Whirlpool Gas Tubing
15	W10545801 Whirlpool Gas Tubing
16	W10545800 Whirlpool Gas Tubing
