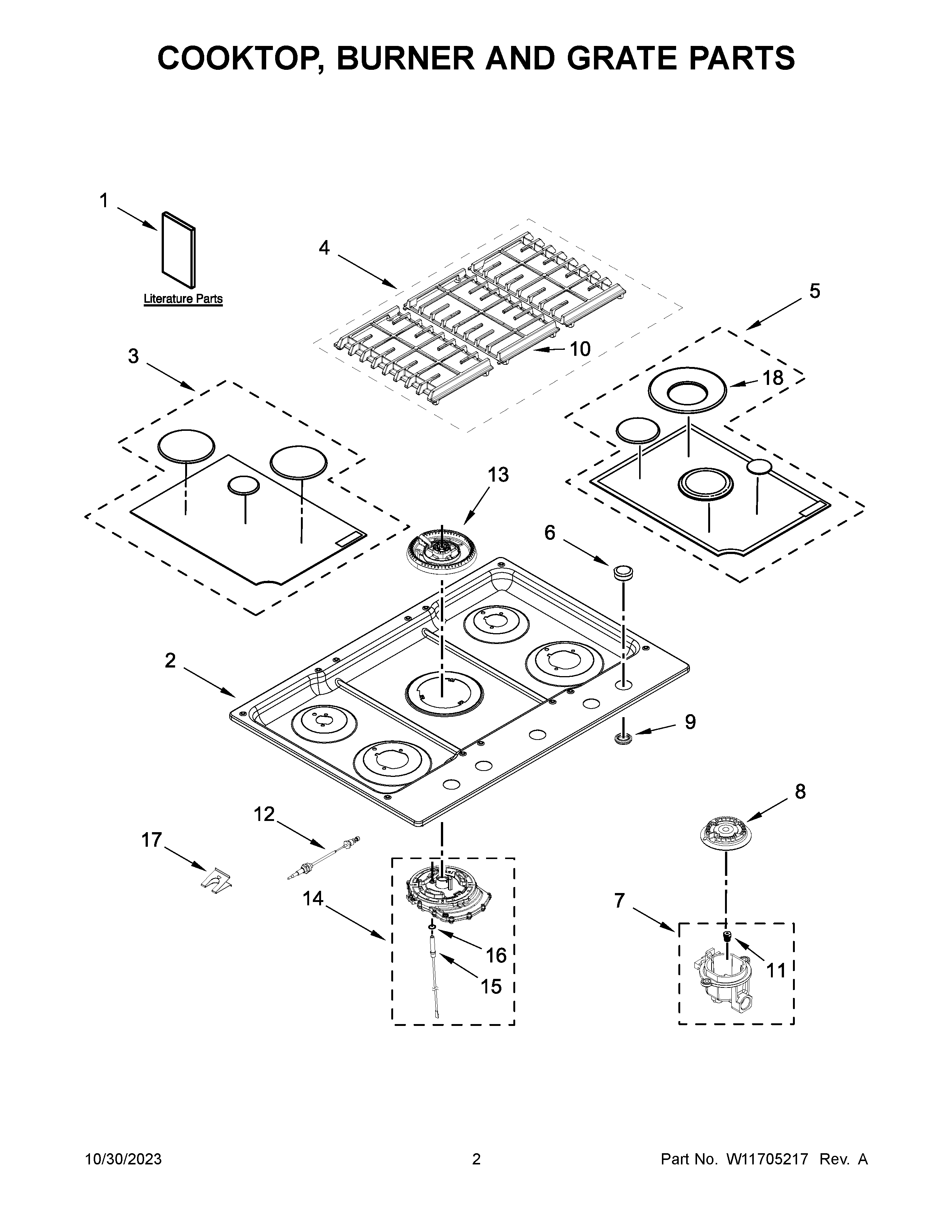

KCGS550ESS06 02 – COOKTOP, BURNER AND GRATE PARTS

Products

Position	Product
NI	WP3400015 Whirlpool Screw
NI	HARNS-WIRE
NI	W10617403 Whirlpool Insulation
NI	INSULATION PARTS NOT ILLUSTRATED
NI	W10853432 Whirlpool Orifice Spud
NI	W11637584 Whirlpool Wire Harness
NI	W10392003 Whirlpool Power Cord
NI	FOLLOWING PARTS NOT ILLUSTRATED
NI	W10132200 Whirlpool Strain Relief
NI	SCREW
NI	BRACKET, MOUNTING
1B	QUICK START GUIDE
1A	OWNER'S MANUAL
1	UNDERCOUNTER INSTALL INSTRUCTIONS
2	W10722084 Whirlpool Cooktop
3	W10814915 Whirlpool Surface Burner Cap
4	GRATE-KIT
5	W10811958 Whirlpool Surface Burner Cap
6	WPW10545849 Whirlpool Knob
7B	W10674919 Whirlpool Orifice Holder
7A	W10674918 Whirlpool Holder Orifice
7	W10674920 Whirlpool Orifice Holder
8B	WP8286814 Whirlpool Burner Head
8A	WP8286813 Whirlpool Burner Head
8	WP8286815 Whirlpool Burner Head
9	BEZEL-KNOB
10	W10583862 Whirlpool Burner Grate
11A	ORIFICE (6K) (LEFT REAR)
11B	W11727825 Whirlpool Spud Orifice
11	W10674732 Whirlpool Orifice Spud
12A	W11507532 Whirlpool Surface Igniter
12	W11507531 Whirlpool Surface Igniter Assembly
13	W10836409 Whirlpool Burner Head
14	W10625853 Whirlpool Orifice Holder
15	W11610134 Whirlpool Surface Igniter
16	W10416057 Whirlpool Ring Assembly
17	8286863 Whirlpool Oven Clip
18	W10617405 Whirlpool Burner Cap
