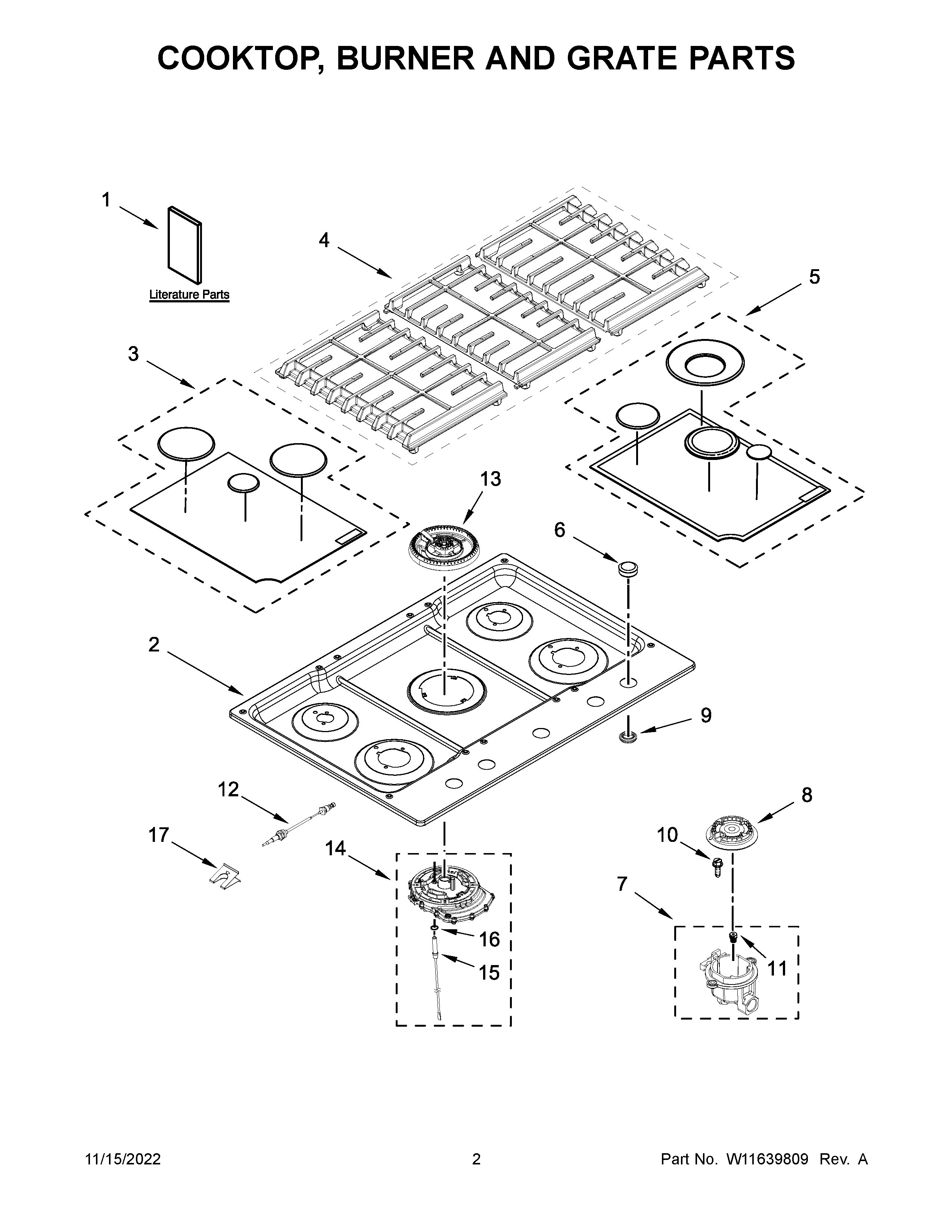

KCGS556ESS05 02 – COOKTOP, BURNER AND GRATE PARTS

Products

Position	Product
NI	WP3400015 Whirlpool Screw
NI	W11637584 Whirlpool Wire Harness
NI	W10853432 Whirlpool Orifice Spud
NI	W11561449 Whirlpool Wire Harness
NI	SEAL, MANIFOLD
NI	INSULATION, COOKTOP
NI	W10132200 Whirlpool Strain Relief
NI	SCREW
NI	BRACKET, MOUNTING
NI	W10392003 Whirlpool Power Cord
NI	CABINET (NOT A SERVICEABLE PART)
1	UNDERCOUNTER INSTALL INSTRUCTIONS
1B	QUICK START GUIDE
1A	OWNER'S MANUAL
2	W11639794 Whirlpool Cooktop
3	W10814915 Whirlpool Surface Burner Cap
4	W11503036 Whirlpool Grate Kit
5	W10811958 Whirlpool Surface Burner Cap
6	WPW10545849 Whirlpool Knob
7B	W10674919 Whirlpool Orifice Holder
7	W10674920 Whirlpool Orifice Holder
7A	W10674918 Whirlpool Holder Orifice
8B	WP8286814 Whirlpool Burner Head
8	WP8286815 Whirlpool Burner Head
8A	WP8286813 Whirlpool Burner Head
9	BEZEL-KNOB
10	W11676349 Whirlpool Screw
11	W10674732 Whirlpool Orifice Spud
11B	W11727825 Whirlpool Spud Orifice
11A	ORIFICE (6K) (LEFT REAR)
12	W11507531 Whirlpool Surface Igniter Assembly
12A	W11507532 Whirlpool Surface Igniter
13	W10836409 Whirlpool Burner Head
14	WPW10639175 Whirlpool Orifice Holder
15	W11610134 Whirlpool Surface Igniter
16	W10416057 Whirlpool Ring Assembly
17	8286863 Whirlpool Oven Clip
