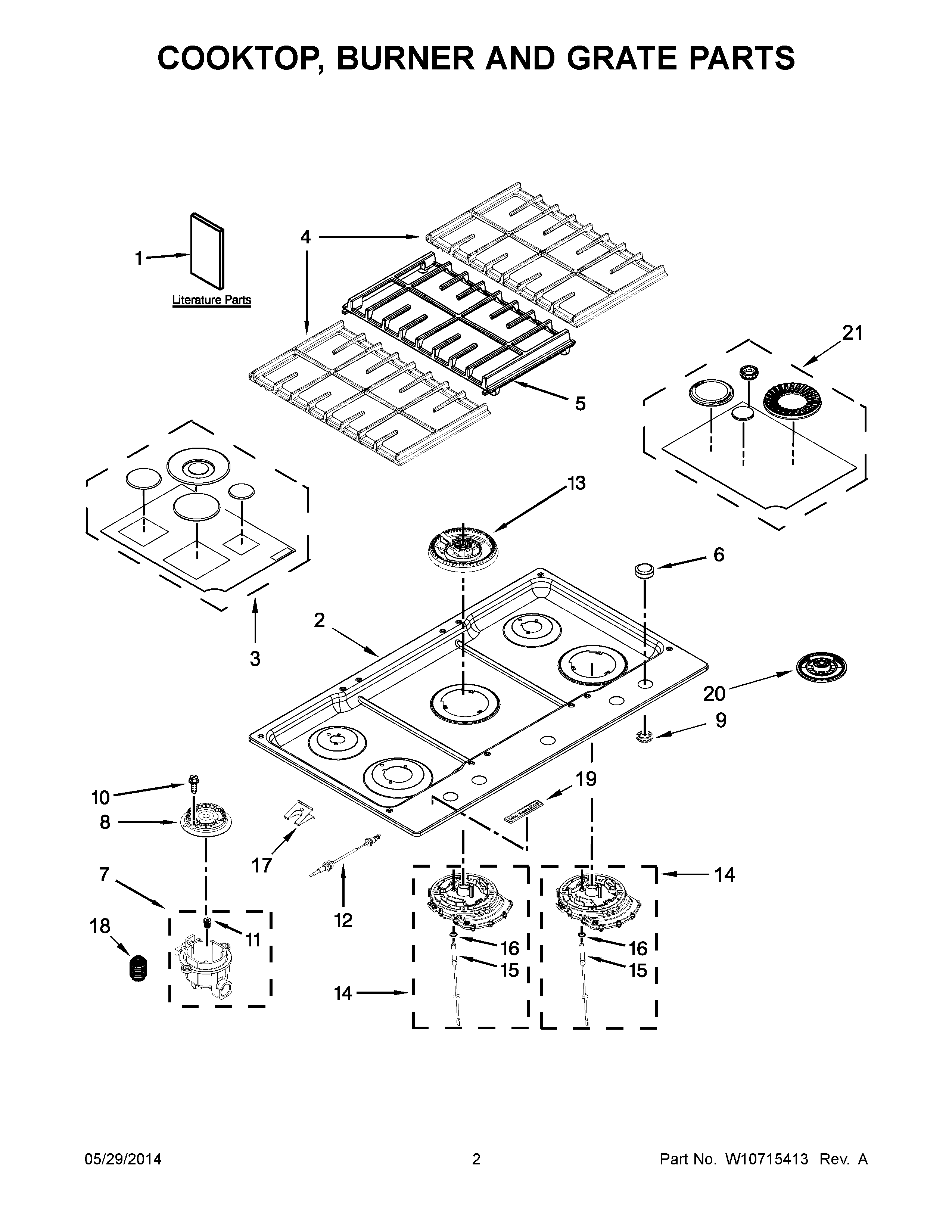

KCGS950ESS00 02 – COOKTOP, BURNER AND GRATE PARTS

KCGS950ESS00 02 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

KCGS950ESS00 02 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIINSULATION, COOKTOP
NIGRIDDLE KIT
1Safer Cooking Tips (French)
1UNDERCOUNTER INSTALL INSTRUCTIONS
1INSTALLATION INSTRUCTIONS
1USE & CARE GUIDE
1SAFER COOKING TIPS (ENGLISH
2W10722086 Whirlpool Cooktop
3W10831828 Whirlpool Burner Cap
4W10583860 Whirlpool Grate Kit
5W10583862 Whirlpool Burner Grate
6WPW10545849 Whirlpool Knob
7W10674919 Whirlpool Orifice Holder
7W10674918 Whirlpool Holder Orifice
7W10674920 Whirlpool Orifice Holder
8WP8286813 Whirlpool Burner Head
8WP8286815 Whirlpool Burner Head
8WP8286814 Whirlpool Burner Head
9W11117438 Whirlpool Knob Bezel
10WP8287059 Whirlpool Screw
11W10674732 Whirlpool Orifice Spud
11W11727825 Whirlpool Spud Orifice
11ORIFICE (6K) (LEFT REAR)
12W10628303 Whirlpool Surface Igniter
12W11507532 Whirlpool Surface Igniter
12W10628302 Whirlpool Surface Igniter
13W10836409 Whirlpool Burner Head
14W10625853 Whirlpool Orifice Holder
14W11173537 Whirlpool Orifice Holder
15W11721763 Whirlpool Surface Igniter
15W11610134 Whirlpool Surface Igniter
16W10416057 Whirlpool Ring Assembly
178286863 Whirlpool Oven Clip
18W11690598 Whirlpool Spring Component
19BADGE
20W11678108 Whirlpool Support
21W10836474 Whirlpool Burner Cap
