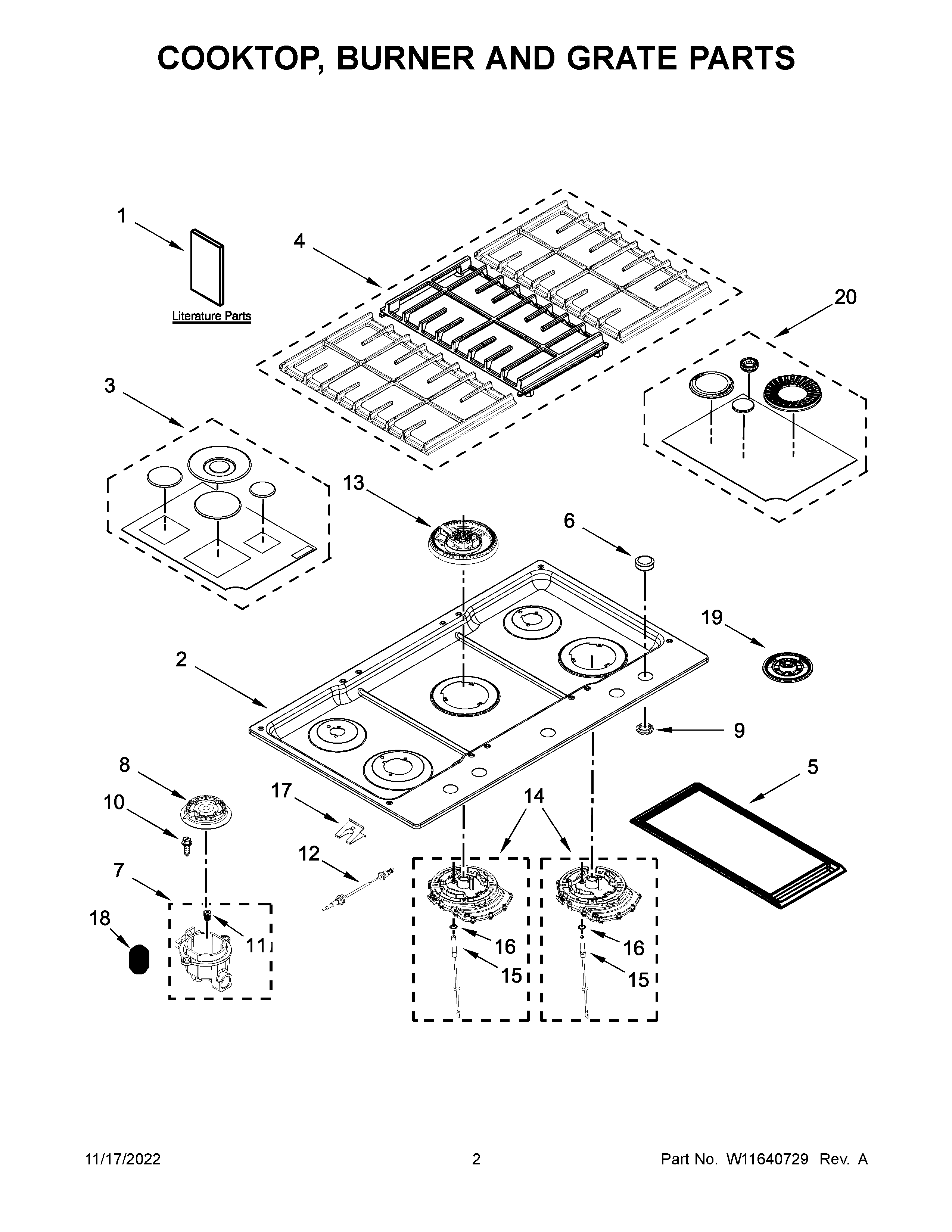

KCGS950ESS05 02 – COOKTOP, BURNER AND GRATE PARTS
Written by
in
KCGS950ESS05 02 – COOKTOP, BURNER AND GRATE PARTS
Products
Position
Product
NI
WP3400015 Whirlpool Screw
NI
SEAL, MANIFOLD
NI
W10577591 Whirlpool Wire Harness
NI
W10619016 Whirlpool Wire Harness
NI
W10853432 Whirlpool Orifice Spud
NI
INSULATION, COOKTOP
NI
SCREW
NI
BRACKET, MOUNTING
NI
CABINET (NOT A SERVICEABLE PART)
NI
W10132200 Whirlpool Strain Relief
NI
W10392003 Whirlpool Power Cord
1
OWNER'S MANUAL
1B
UNDERCOUNTER INSTALL INSTRUCTIONS
1A
QUICK START GUIDE
1C
TECH SHEET
2
W10722086 Whirlpool Cooktop
3
W10831828 Whirlpool Burner Cap
4
GRATE-KIT
5
GRIDDLE KIT
6
WPW10545849 Whirlpool Knob
7B
W10674919 Whirlpool Orifice Holder
7A
W10674918 Whirlpool Holder Orifice
7
W10674920 Whirlpool Orifice Holder
8A
WP8286813 Whirlpool Burner Head
8
WP8286815 Whirlpool Burner Head
8B
WP8286814 Whirlpool Burner Head
9
W11117438 Whirlpool Knob Bezel
10
W11676349 Whirlpool Screw
11A
ORIFICE (6K) (LEFT REAR)
11
W10674732 Whirlpool Orifice Spud
11B
W11727825 Whirlpool Spud Orifice
12
W10628302 Whirlpool Surface Igniter
12B
W10628303 Whirlpool Surface Igniter
12A
W11507532 Whirlpool Surface Igniter
13
W10836409 Whirlpool Burner Head
14A
W10625853 Whirlpool Orifice Holder
14
W11173537 Whirlpool Orifice Holder
15
W11721763 Whirlpool Surface Igniter
15A
W11610134 Whirlpool Surface Igniter
16
W10416057 Whirlpool Ring Assembly
17
8286863 Whirlpool Oven Clip
18
W11690598 Whirlpool Spring Component
19
W11678108 Whirlpool Support
20
W10836474 Whirlpool Burner Cap
←
