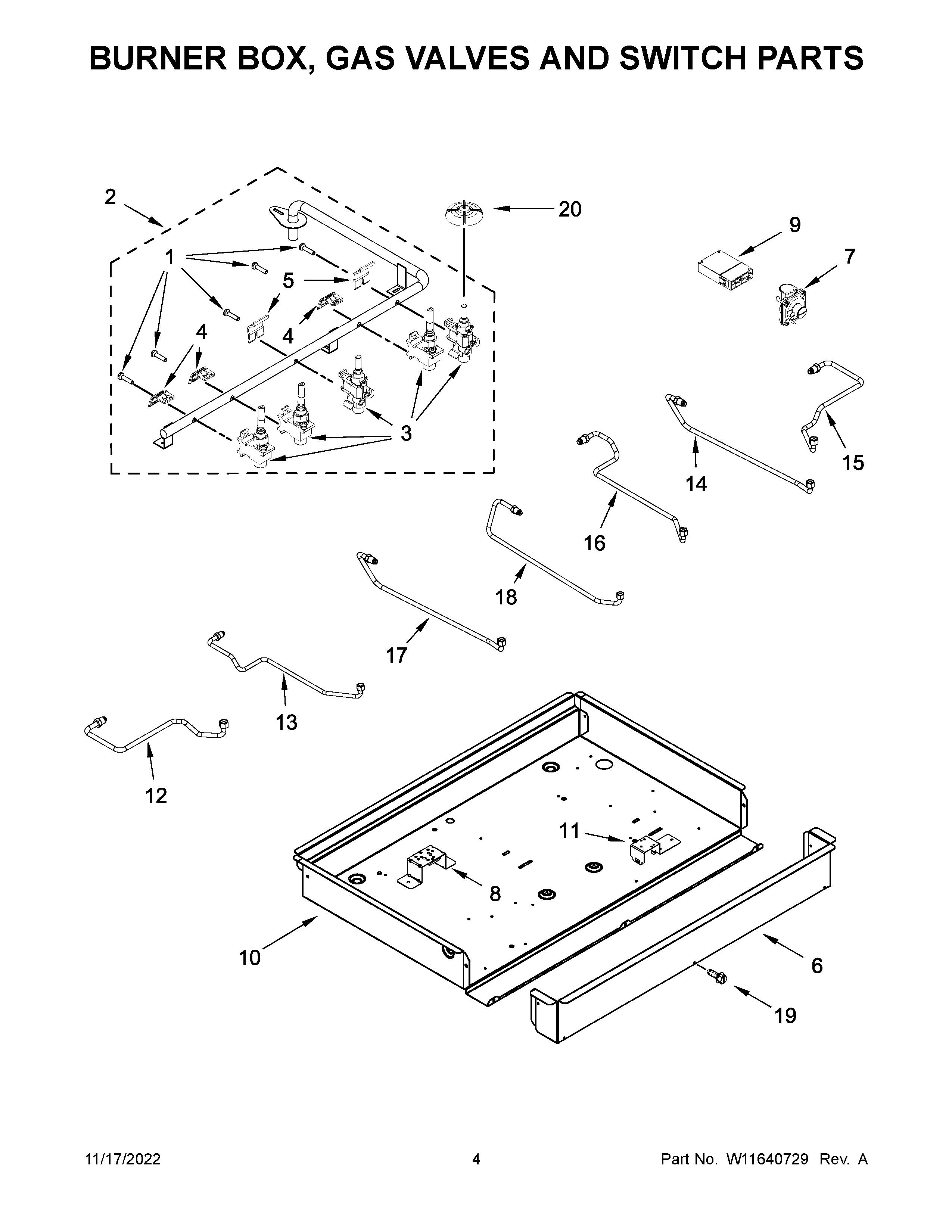

KCGS950ESS05 03 – BURNER BOX, GAS VALVES AND SWITCH PARTS

Products

Position	Product
NI	ACCESSORY PARTS, SPRAY, STAINLESS STEEL CLEANING
1	8287057 Whirlpool Oven Screw
2	W10682074 Whirlpool Manifold
3A	W10717631 Whirlpool Gas Valve
3C	W11199023 Whirlpool Burner Valve
3B	W10717628 Whirlpool Gas Valve
3	W11209791 Whirlpool Gas Valve
4	8287055 Whirlpool Oven Mounting Bracket
5	8287056 Whirlpool Oven Mounting Bracket
6	PANEL, FRONT
7	W11087445 Whirlpool Pressure Regulator
8	W10594429 Whirlpool Mounting Bracket
9	WPW10475150 Whirlpool Spark Module
10	BOX, BURNER
11	W10545802 Whirlpool Mounting Bracket
12	W10545796 Whirlpool Gas Tubing
13	W10545797 Whirlpool Gas Tubing
14	W10545843 Whirlpool Gas Tubing
15	W10545844 Whirlpool Gas Tubing
16	W10545798 Whirlpool Gas Tubing
17	W10545801 Whirlpool Gas Tubing
18	W10545800 Whirlpool Gas Tubing
19	WP3196557 Whirlpool Screw
20	W11507167 Whirlpool Switch Seal
