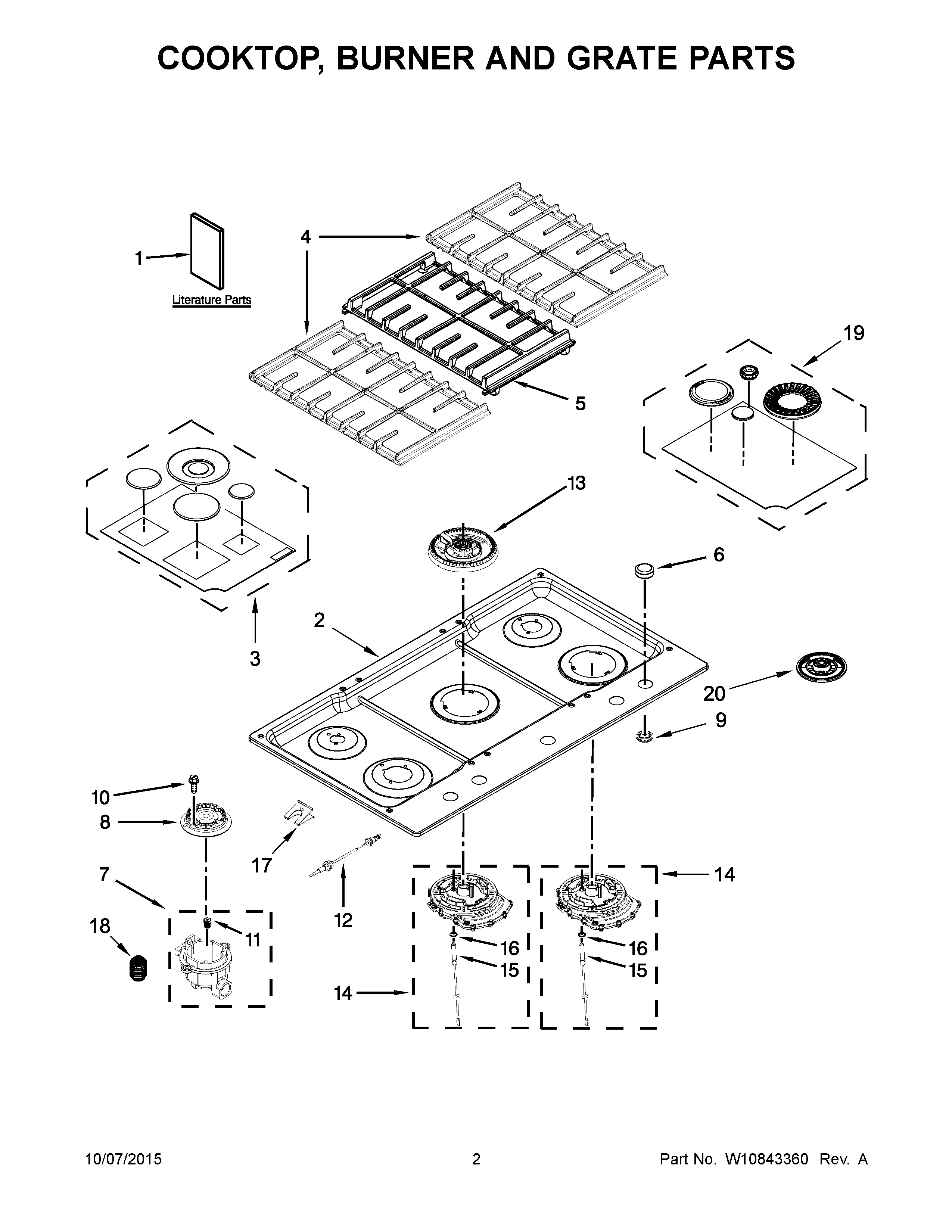

KCGS956ESS02 02 – COOKTOP, BURNER AND GRATE PARTS

KCGS956ESS02 02 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

KCGS956ESS02 02 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIGRIDDLE KIT
NIINSULATION, COOKTOP
1AINSTALLATION INSTRUCTIONS
1BUNDERCOUNTER INSTALL INSTRUCTIONS
1USE & CARE GUIDE
1CINSTRUCTIONS, CONVERSION
1ESafer Cooking Tips (French)
1DSAFER COOKING TIPS (ENGLISH
2W10722087 Whirlpool Cooktop
3W10831828 Whirlpool Burner Cap
4W10861522 Whirlpool Grate Kit
5W11105133 Whirlpool Burner Grate
6WPW10545849 Whirlpool Knob
7W10674921 Whirlpool Orifice Holder
7AW10674918 Whirlpool Holder Orifice
7BW10674919 Whirlpool Orifice Holder
8BWP8286814 Whirlpool Burner Head
8AWP8286813 Whirlpool Burner Head
8WP8286815 Whirlpool Burner Head
9W11117438 Whirlpool Knob Bezel
10WP8287059 Whirlpool Screw
11AORIFICE (6K) (LEFT REAR)
11BW11727825 Whirlpool Spud Orifice
11W10791079 Whirlpool Orifice Spud
12W10628302 Whirlpool Surface Igniter
12BW10628303 Whirlpool Surface Igniter
12AW11507532 Whirlpool Surface Igniter
13W10836409 Whirlpool Burner Head
14AWPW10639175 Whirlpool Orifice Holder
14W11173537 Whirlpool Orifice Holder
15AW11610134 Whirlpool Surface Igniter
15W11721763 Whirlpool Surface Igniter
16W10416057 Whirlpool Ring Assembly
178286863 Whirlpool Oven Clip
18W11690598 Whirlpool Spring Component
19W10836474 Whirlpool Burner Cap
20W11678108 Whirlpool Support
