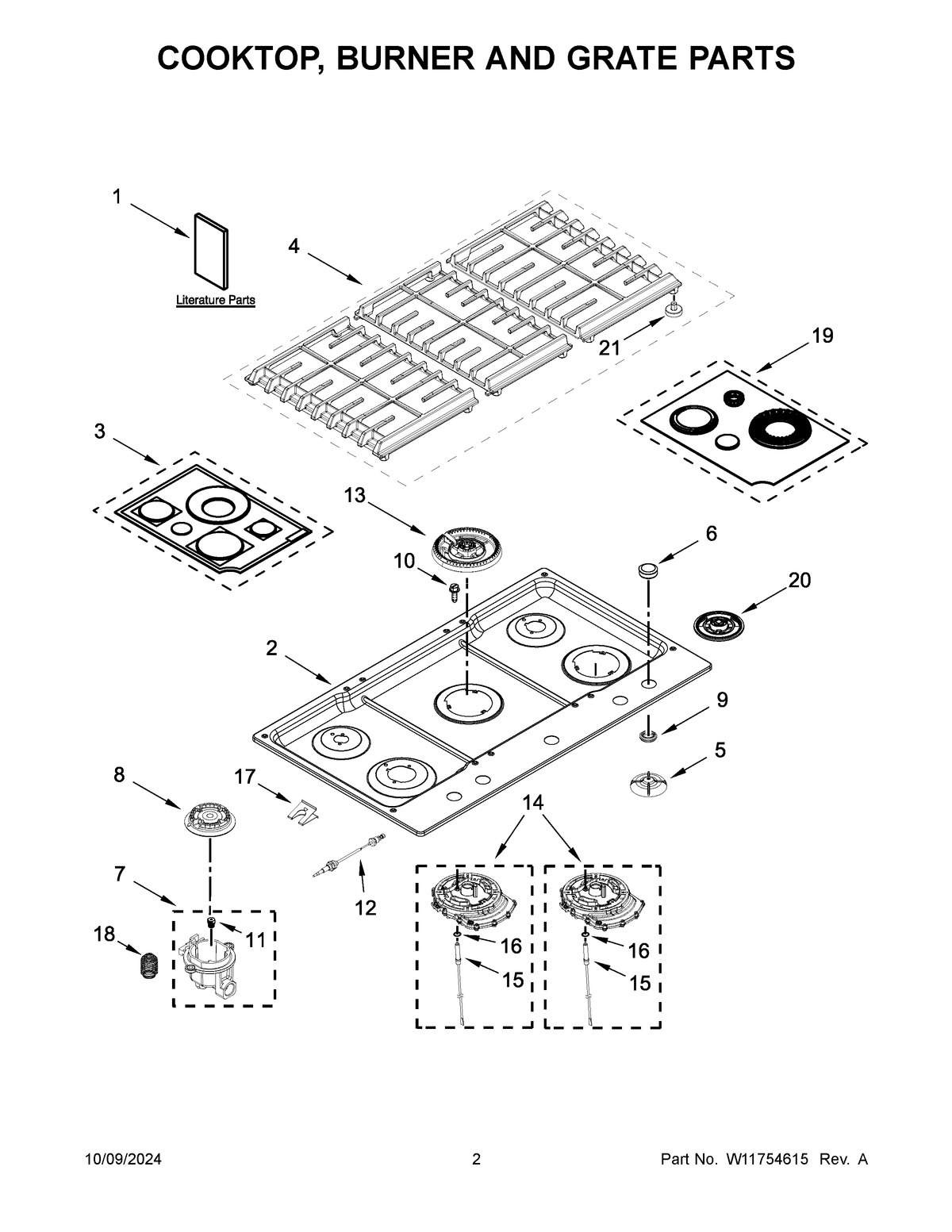

KCGS956ESS06 02 – COOKTOP, BURNER AND GRATE PARTS

Products

Position	Product
NI	FOLLOWING PARTS NOT ILLUSTRATED
NI	INSULATION, COOKTOP
1C	TECH SHEET
1	OWNER'S MANUAL
1A	QUICK START GUIDE
1B	UNDERCOUNTER INSTALL INSTRUCTIONS
2	W10722087 Whirlpool Cooktop
3	W10831828 Whirlpool Burner Cap
4	W11503036 Whirlpool Grate Kit
5	W11507167 Whirlpool Switch Seal
6	WPW10545849 Whirlpool Knob
7B	W10674919 Whirlpool Orifice Holder
7A	W10674918 Whirlpool Holder Orifice
7	W10674921 Whirlpool Orifice Holder
8	WP8286815 Whirlpool Burner Head
8B	WP8286814 Whirlpool Burner Head
8A	WP8286813 Whirlpool Burner Head
9	W11117438 Whirlpool Knob Bezel
10	W11676349 Whirlpool Screw
11	W10791079 Whirlpool Orifice Spud
11B	W11727825 Whirlpool Spud Orifice
11A	ORIFICE (6K) (LEFT REAR)
12	W10628302 Whirlpool Surface Igniter
12B	W10628303 Whirlpool Surface Igniter
12A	W11507532 Whirlpool Surface Igniter
13	W10836409 Whirlpool Burner Head
14A	WPW10639175 Whirlpool Orifice Holder
14	W11173537 Whirlpool Orifice Holder
15	W11721763 Whirlpool Surface Igniter
15A	W11610134 Whirlpool Surface Igniter
16	W10416057 Whirlpool Ring Assembly
17	8286863 Whirlpool Oven Clip
18	W11690598 Whirlpool Spring Component
19	W10836474 Whirlpool Burner Cap
20	W11678108 Whirlpool Support
21	BUMPER, GRATE
