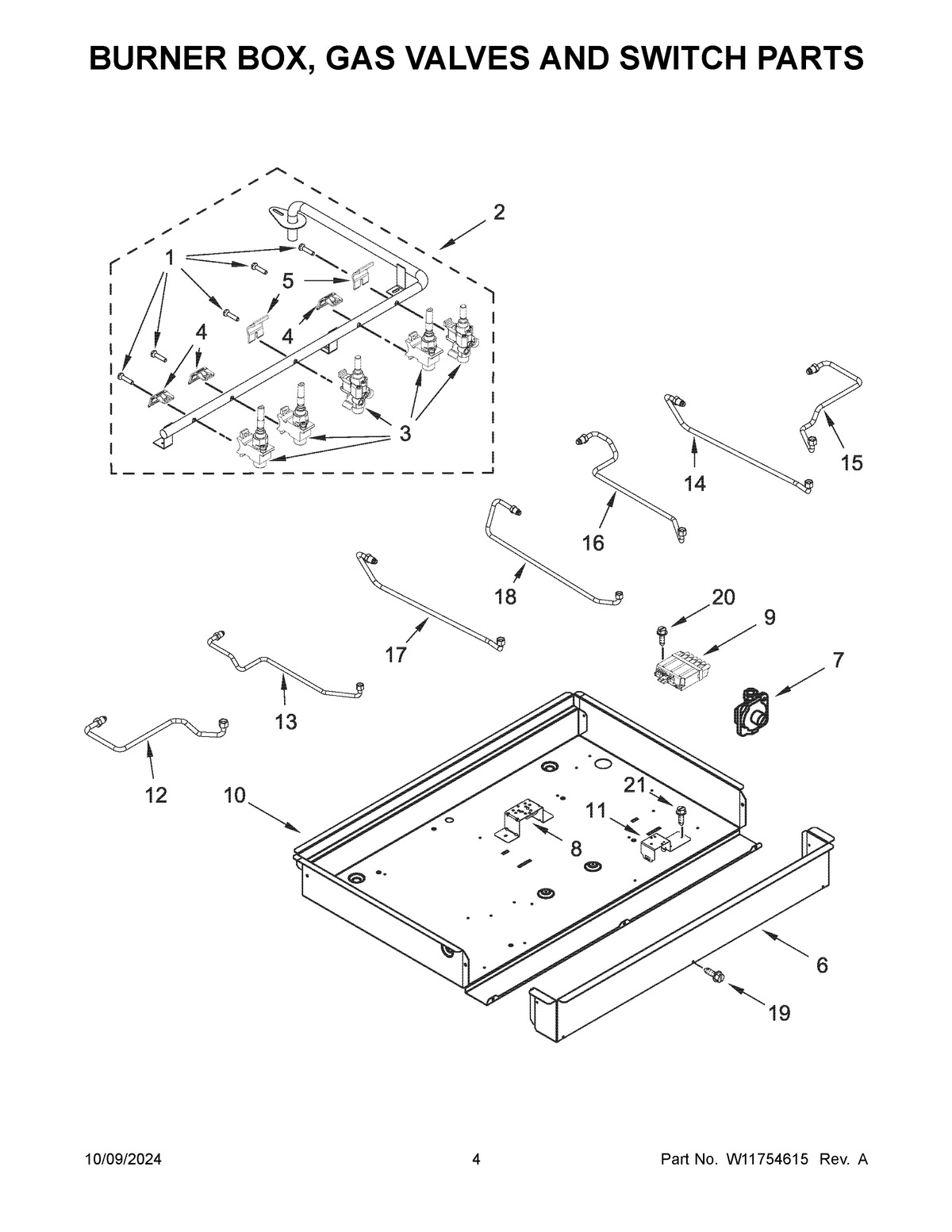

KCGS956ESS06 03 – BURNER BOX, GAS VALVES AND SWITCH PARTS

Products

Position	Product
NI	WP3400015 Whirlpool Screw
NI	W10577591 Whirlpool Wire Harness
NI	W10853432 Whirlpool Orifice Spud
NI	W11661579 Whirlpool Refrigerator Light Switch 5 Brown 36"
NI	SEAL, MANIFOLD
NI	SCREW
NI	W10132200 Whirlpool Strain Relief
NI	W10392003 Whirlpool Power Cord
NI	BRACKET, MOUNTING
1	8287057 Whirlpool Oven Screw
2	W10682075 Whirlpool Manifold
3B	VALVE-BRNR
3A	VALVE-GAS
3	VALVE-GAS
3C	VALVE-GAS
4	8287055 Whirlpool Oven Mounting Bracket
5	8287056 Whirlpool Oven Mounting Bracket
6	W10716840 Whirlpool Manifold Panel
7	W11087445 Whirlpool Pressure Regulator
8	W10594429 Whirlpool Mounting Bracket
9	WPW10475150 Whirlpool Spark Module
10	W10710917 Whirlpool Burner Box
11	W10545802 Whirlpool Mounting Bracket
12	W10545796 Whirlpool Gas Tubing
13	W10545797 Whirlpool Gas Tubing
14	W10545843 Whirlpool Gas Tubing
15	W10545844 Whirlpool Gas Tubing
16	W10545798 Whirlpool Gas Tubing
17	W10545801 Whirlpool Gas Tubing
18	W10545800 Whirlpool Gas Tubing
19	WP3196557 Whirlpool Screw
20	SCREW
21	W10443110 Whirlpool Screw
