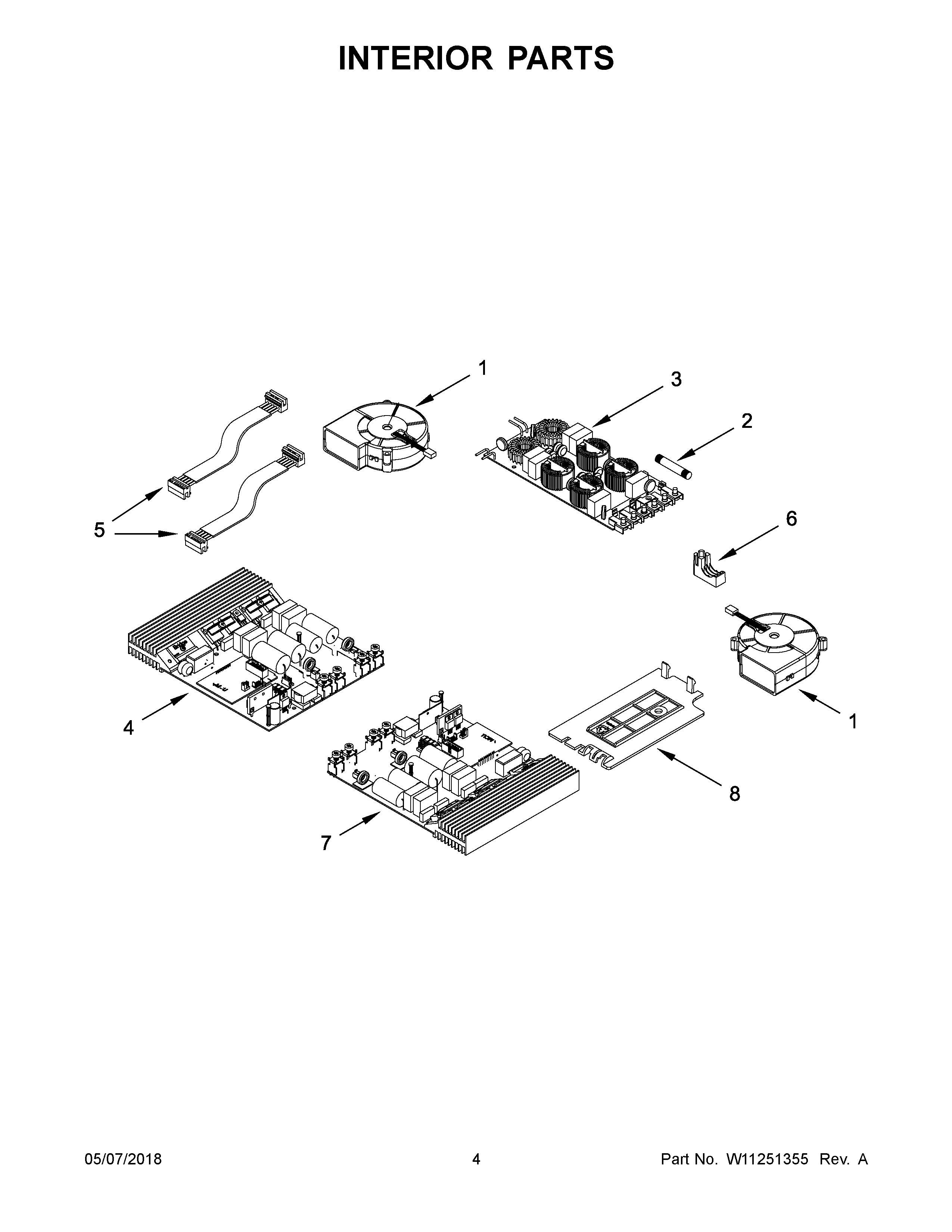

KCIG704FBL0 03 – INTERIOR PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	HARNESS, MAIN
NI	W10328499 Whirlpool Bracket Mounting
NI	W10310006A Whirlpool Cooktop Adhesive, Marble Countertop
1	W10328381 Whirlpool Fan Blower Assembly
1A	W10328378 Whirlpool Blower Fan Assembly
2	WPW10328492 Whirlpool Thermal Fuse
3	MAINS FILTER
4	W11259042 Whirlpool Electronic Control Board + Core
5	W11428265 Whirlpool Wire Harness
5A	W10328395 Whirlpool Wire Harness
6	W10328401 Whirlpool Mounting Bracket
7	W11259038 Whirlpool Electronic Control Board + Core
8	COVER, PLASTIC G8 INDUCTION MODULE
