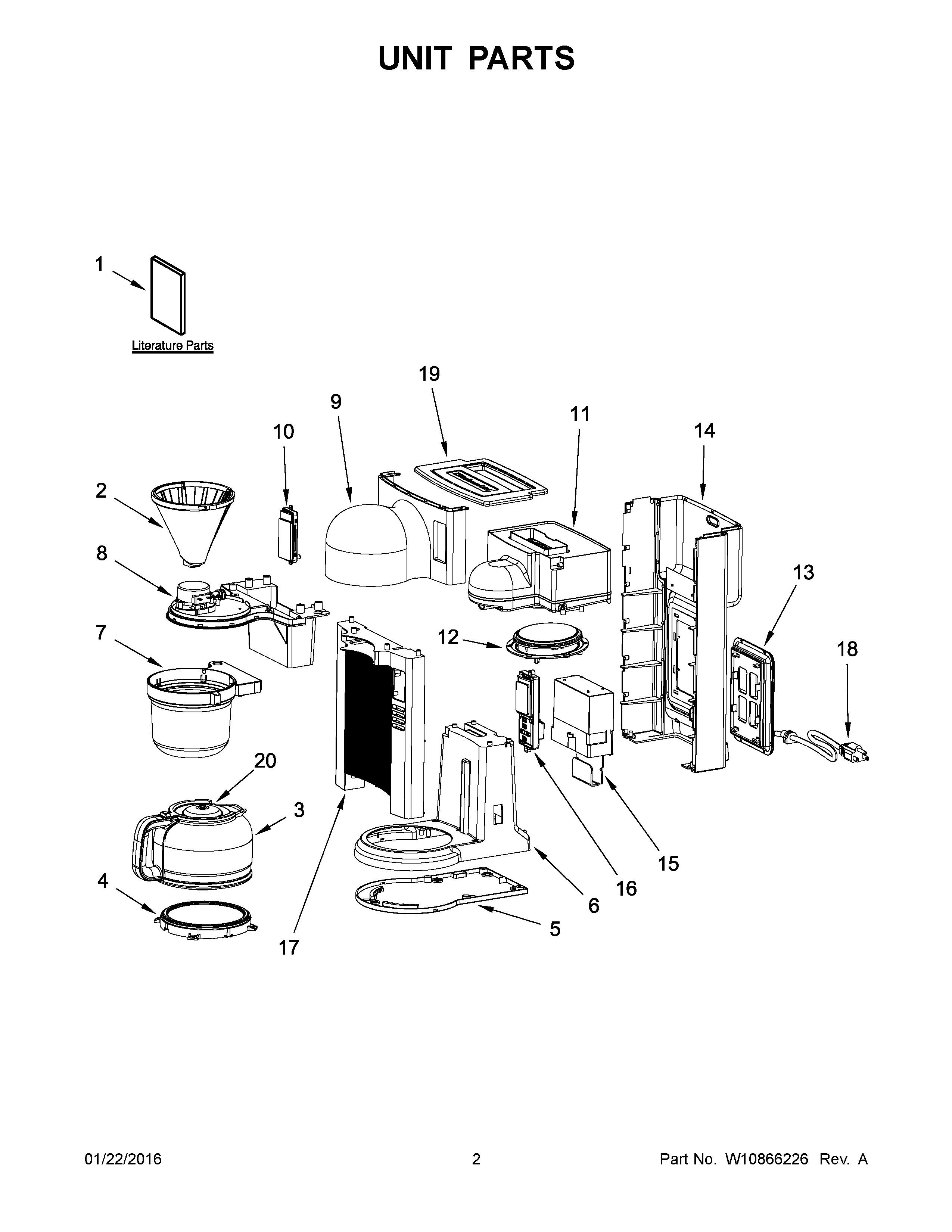

KCM0801OB0 02 – UNIT PARTSadmin2025-04-26T12:30:04+00:00KCM0801OB0 02 – UNIT PARTS
Products
| Position | Product |
|---|
| 1 | USE AND CARE GUIDE (US) |
| 2 | BASKET, BREW |
| 3 | CARAFE, GLASS |
| 4 | PLATE, WARMING (US) |
| 5 | COVER, BASE |
| 6 | LOWER HOUSING (ONYX BLACK) |
| 7 | HOLDER, FUNNEL |
| 8 | W10732620 Whirlpool Umbrella |
| 9 | TOP HOUSING (ONYX BLACK) |
| 10 | GUIDE, WATER LEVEL WINDOW |
| 11 | RESERVOIR, WATER TANK |
| 12 | W10732627 Whirlpool Element Assembly |
| 13 | HOLDER, CORD WRAP PLATE |
| 14 | REAR HOUSING (ONYX BLACK) |
| 15 | CONTROL, POWER PCB |
| 16 | CONTROL, PCB |
| 17 | FRONT HOUSING (ONYX BLACK) |
| 18 | CORD, POWER |
| 19 | TOP LID ASSEMBLY (ONYX BLACK) |
| 20 | LID |
