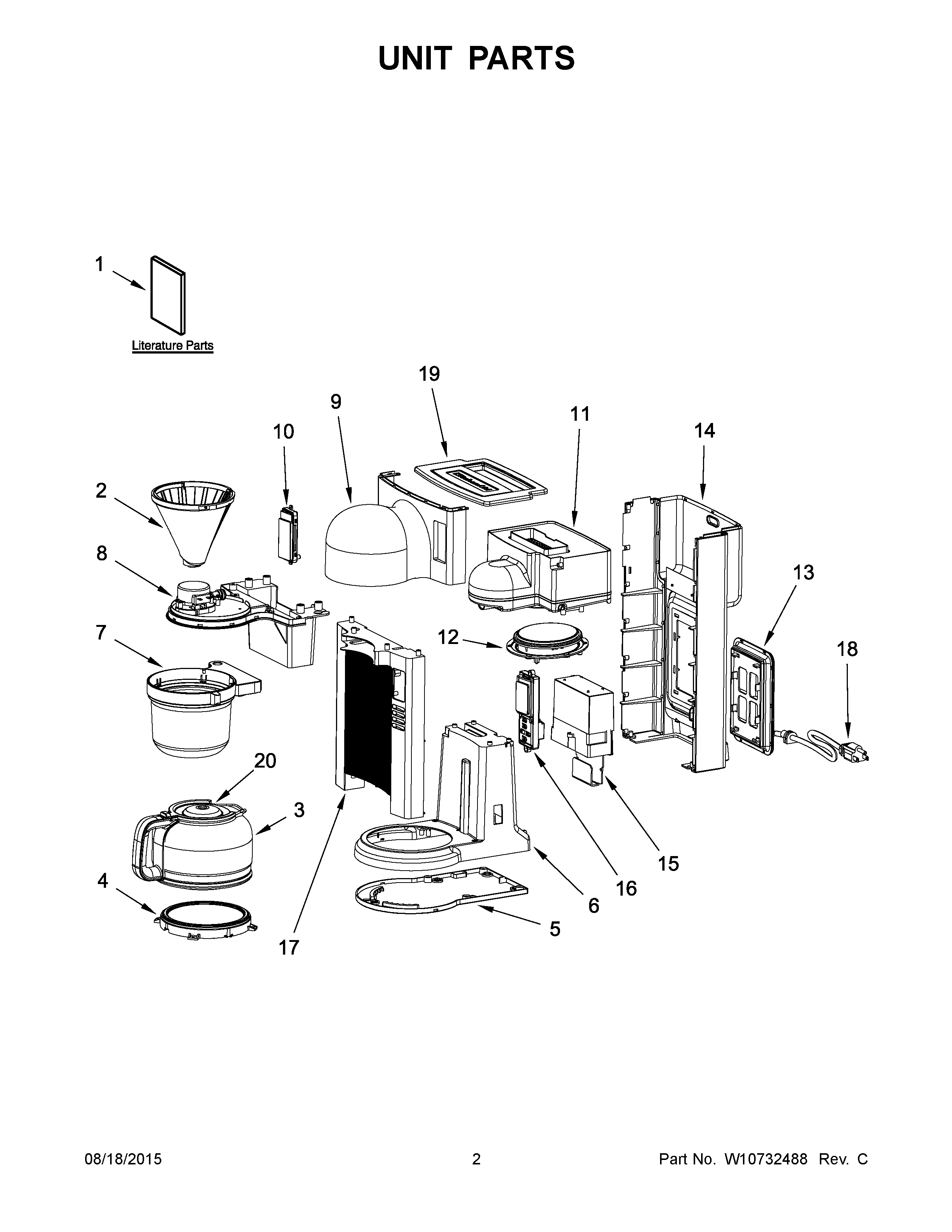

KCM0802OB0 02 – UNIT PARTSadmin2025-04-26T12:28:24+00:00KCM0802OB0 02 – UNIT PARTS
Products
| Position | Product |
|---|
| 1 | USE AND CARE GUIDE (US) |
| 1A | USE AND CARE GUIDE, INTERNATIONAL |
| 2 | W10732611 Whirlpool Basket Assembly |
| 3 | CARAFE, GLASS |
| 4 | PLATE, WARMING (US) |
| 4A | PLATE, WARMING (INTERNATIONAL) |
| 5 | COVER, BASE |
| 6 | LOWER HOUSING (ONYX BLACK) |
| 6D | LOWER HOUSING (ALMOND CREME) |
| 6A | LOWER HOUSING (CONTOUR SILVER) |
| 6B | LOWER HOUSING (EMPIRE RED) |
| 6C | LOWER HOUSING (MEDALLION SILVER) |
| 7 | HOLDER, FUNNEL |
| 8 | W10732620 Whirlpool Umbrella |
| 8A | UMBRELLA, SHOWERHEAD (INTERNATIONAL) |
| 9A | TOP HOUSING (CONTOUR SILVER) |
| 9D | TOP HOUSING (ALMOND CREME) |
| 9 | TOP HOUSING (ONYX BLACK) |
| 9C | TOP HOUSING (MEDALLION SILVER) |
| 9B | TOP HOUSING (EMPIRE RED) |
| 10 | GUIDE, WATER LEVEL WINDOW |
| 11 | RESERVOIR, WATER TANK |
| 12A | ELEMENT, HEATER (INTERNATIONAL) |
| 12 | W10732627 Whirlpool Element Assembly |
| 13 | HOLDER, CORD WRAP PLATE |
| 14D | W10760325 Whirlpool Housing |
| 14C | REAR HOUSING (MEDALLION SILVER) |
| 14B | REAR HOUSING (EMPIRE RED) |
| 14A | REAR HOUSING (CONTOUR SILVER) |
| 14 | REAR HOUSING (ONYX BLACK) |
| 15 | CONTROL, POWER PCB |
| 16 | CONTROL, PCB (US) |
| 16A | CONTROL, PCB (INTERNATIONAL) |
| 17D | FRONT HOUSING (ALMOND CREME) |
| 17C | FRONT HOUSING (MEDALLION SILVER) |
| 17B | FRONT HOUSING (EMPIRE RED) |
| 17A | FRONT HOUSING (CONTOUR SILVER) |
| 17 | FRONT HOUSING (ONYX BLACK) |
| 18 | CORD, POWER |
| 18A | CORD, POWER (BRITAIN) |
| 18B | C |
| 19C | W10732644 Whirlpool Lid |
| 19B | WPL W10732642 |
| 19A | WPL W10732641 |
| 19 | WPL W10732640 |
| 19D | WPL W10760327 |
| 20 | LID |
