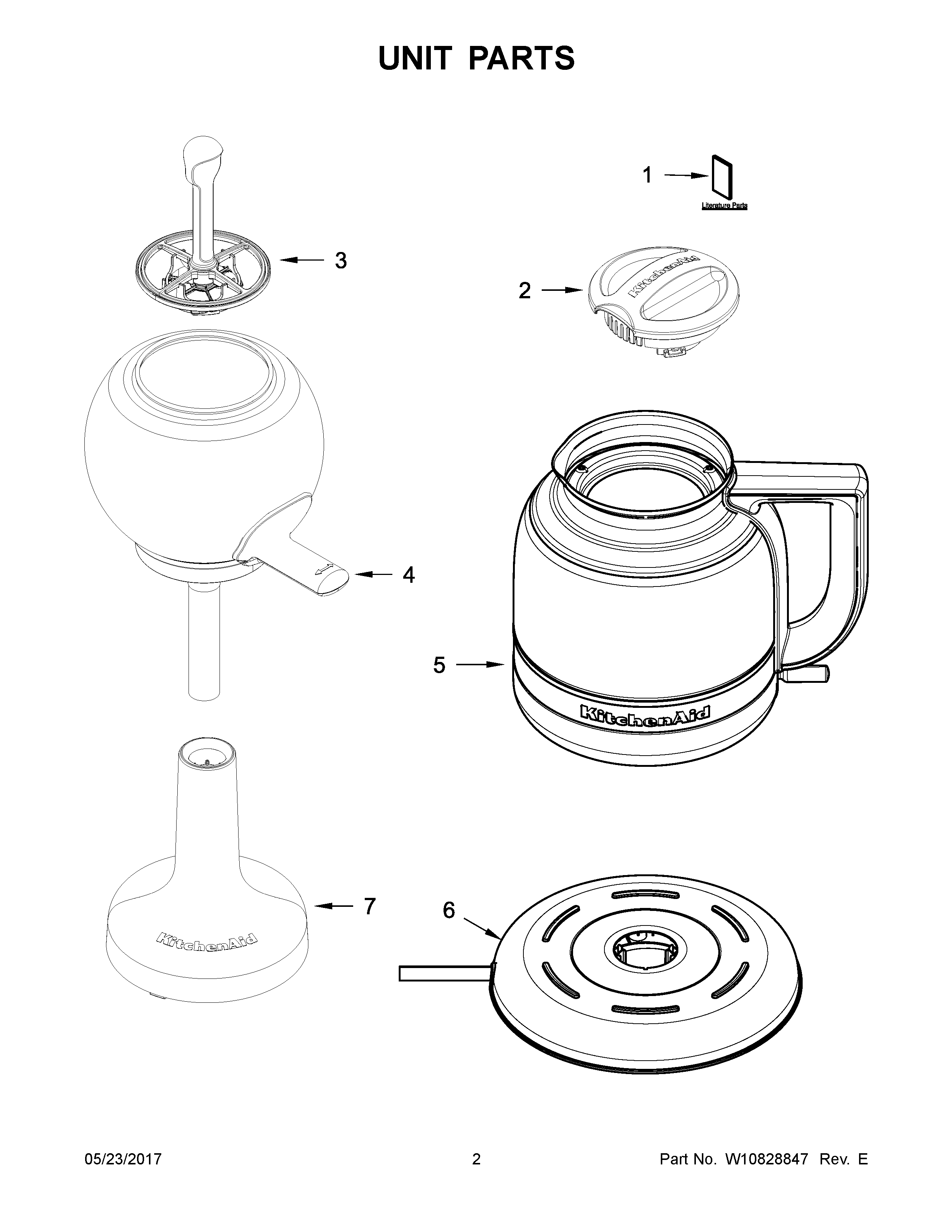

KCM0812QOB0 02 – UNIT PARTS

KCM0812QOB0 02 – UNIT PARTS

Written by

in

KCM0812QOB0 02 – UNIT PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW10788824 Whirlpool Scoop
1AUSE & CARE GUIDE (AUSTRALIA)
1BUSE & CARE GUIDE (EUROPE/UNITED KINGDOM/SWITZERLAND/BRAZIL)
1CUSE & CARE GUIDE (CHINA)
1DUSE & CARE GUIDE (ARGENTINA)
1USE & CARE GUIDE (UNITED STATES)
2W10788810 Whirlpool Lid Assembly
3W11403847 Whirlpool Filter Assembly
4GLASS ASSEMBLY, UPPER KETTLE
5FW11114788 Whirlpool Carafe Assembly
5DGLASS ASSEMBLY, LOWER KETTLE (ONYX BLACK (EUROPE/UNITED KINGDOM/SWITZERLAND/ARGENTINA))
5CGLASS ASSEMBLY, LOWER KETTLE (ONYX BLACK (AUSTRALIA))
5BGLASS ASSEMBLY, LOWER KETTLE (ONYX BLACK (UNITED STATES))
5EGLASS ASSEMBLY, LOWER KETTLE (ONYX BLACK (BRAZIL))
5GLASS ASSEMBLY, LOWER KETTLE (MEDALLION SILVER (UNITED STATES))
5AGLASS ASSEMBLY, LOWER KETTLE (MEDALLION SILVER (ARGENTINA))
6W10788820 Whirlpool Base
6IW11127234 Whirlpool Base Assembly
6HPOWER BASE (ONYX BLACK (CHINA))
6GW10915363 Whirlpool Base Assembly
6FPOWER BASE (ONYX BLACK (SWITZERLAND))
6EPOWER BASE (ONYX BLACK (UNITED KINGDOM))
6CPOWER BASE (ONYX BLACK (AUSTRALIA))
6BW10788819 Whirlpool Base
6APOWER BASE (MEDALLION SILVER (ARGENTINA))
6DPOWER BASE (ONYX BLACK (EUROPE))
7W11399255 Whirlpool Stand
