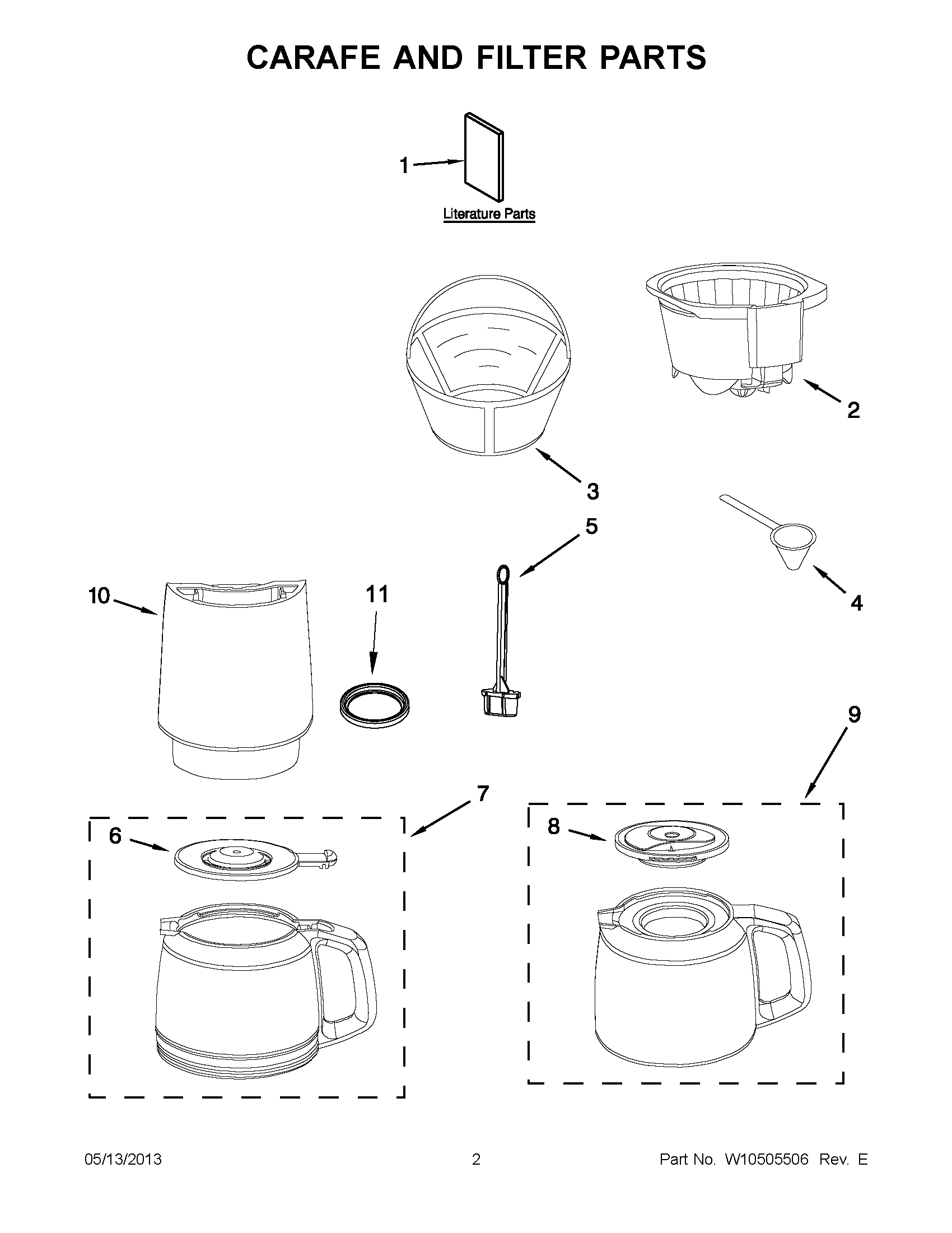

KCM1203CU0 01 – CARAFE AND FILTER PARTS

KCM1203CU0 01 – CARAFE AND FILTER PARTS

Written by

in

KCM1203CU0 01 – CARAFE AND FILTER PARTS

Products

PositionProduct
1USE AND CARE GUIDE
2WPW10505647 Whirlpool Basket Assembly
3W11229686 Whirlpool Filter
4SCOOP, COFFEE
5FILTER, WATER
6LID, GLASS CARAFE
7WPW10505658 Whirlpool Carafe
8LID, THERMAL CARAFE
9WPW10505659 Whirlpool Carafe
10WPW10505654 Whirlpool Housing
10WPW10510657 Whirlpool Housing
11SEAL
