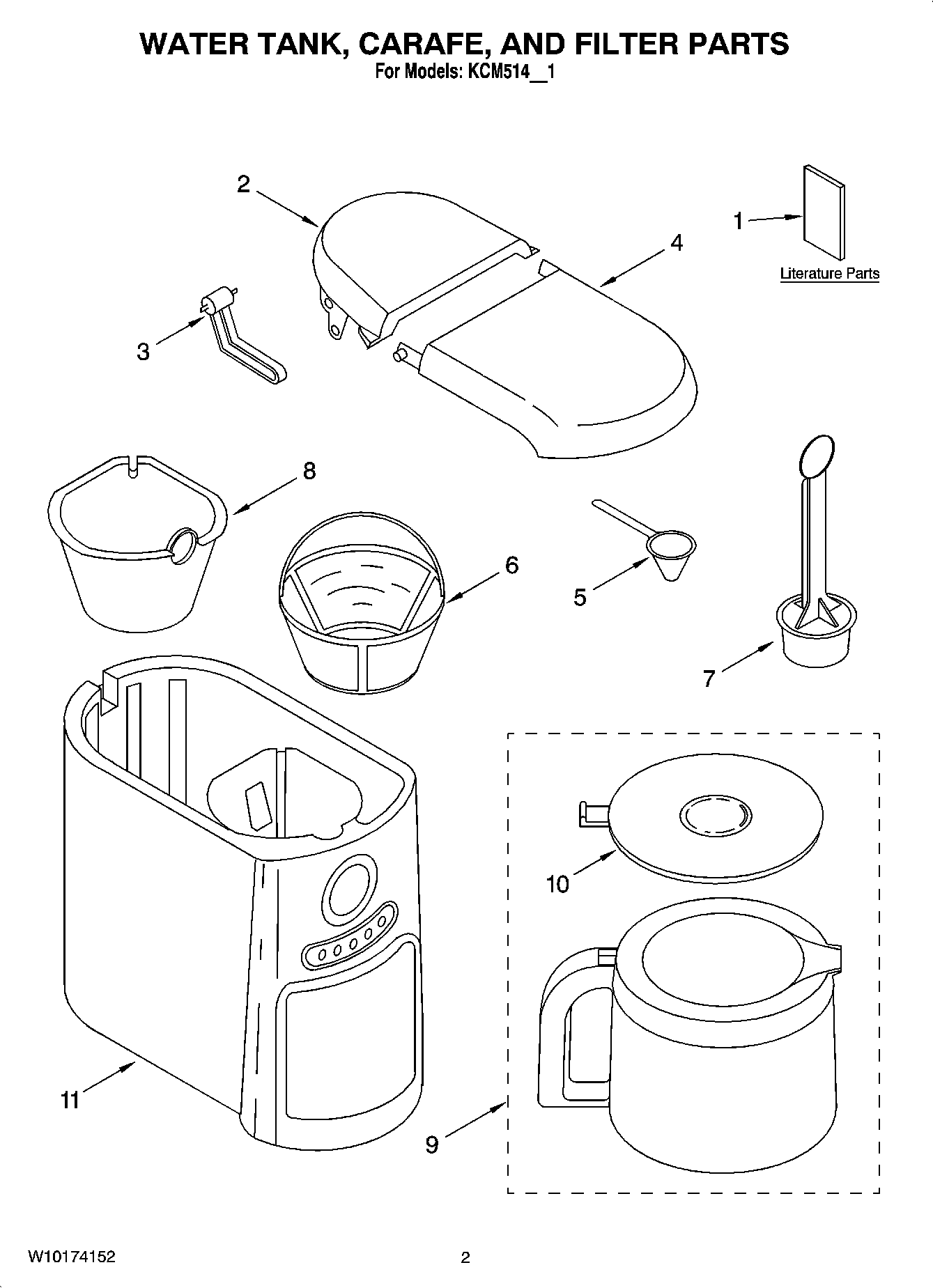

KCM514OB1 01 – WATER TANK, CARAFE, AND FILTER PARTS

Products

Position	Product
1	Repair Parts List
1	Guide, Use & Care
2	Lid Assembly (Rear) (Onyx Black)
2	Lid Assembly (Rear) (Empire Red)
2	Lid Assembly (Rear) (Cobalt Blue)
2	Lid Assembly (Rear) (White)
3	Link, Lid
4	Lid Assembly (Front) (Empire Red)
4	Lid Assembly (Front) (White)
4	Lid Assembly (Front) (Cobalt Blue)
4	Lid Assembly (Front) (Onyx Black)
5	Scoop, Coffee
6	Filter, Goldtone
7	Filter, Charcoal Assembly
8	Brew Basket Assy.
9	Carafe Assembly (Cobalt Blue)
9	Carafe Assembly (Empire Red)
9	Carafe Assembly (White)
9	Carafe Assembly (Onyx Black)
10	Lid, Carafe (Empire Red)
10	Lid, Carafe (Onyx Black)
10	Lid, Carafe (White)
10	Lid, Carafe (Cobalt Blue)
11	Housing (Not Serviced)
