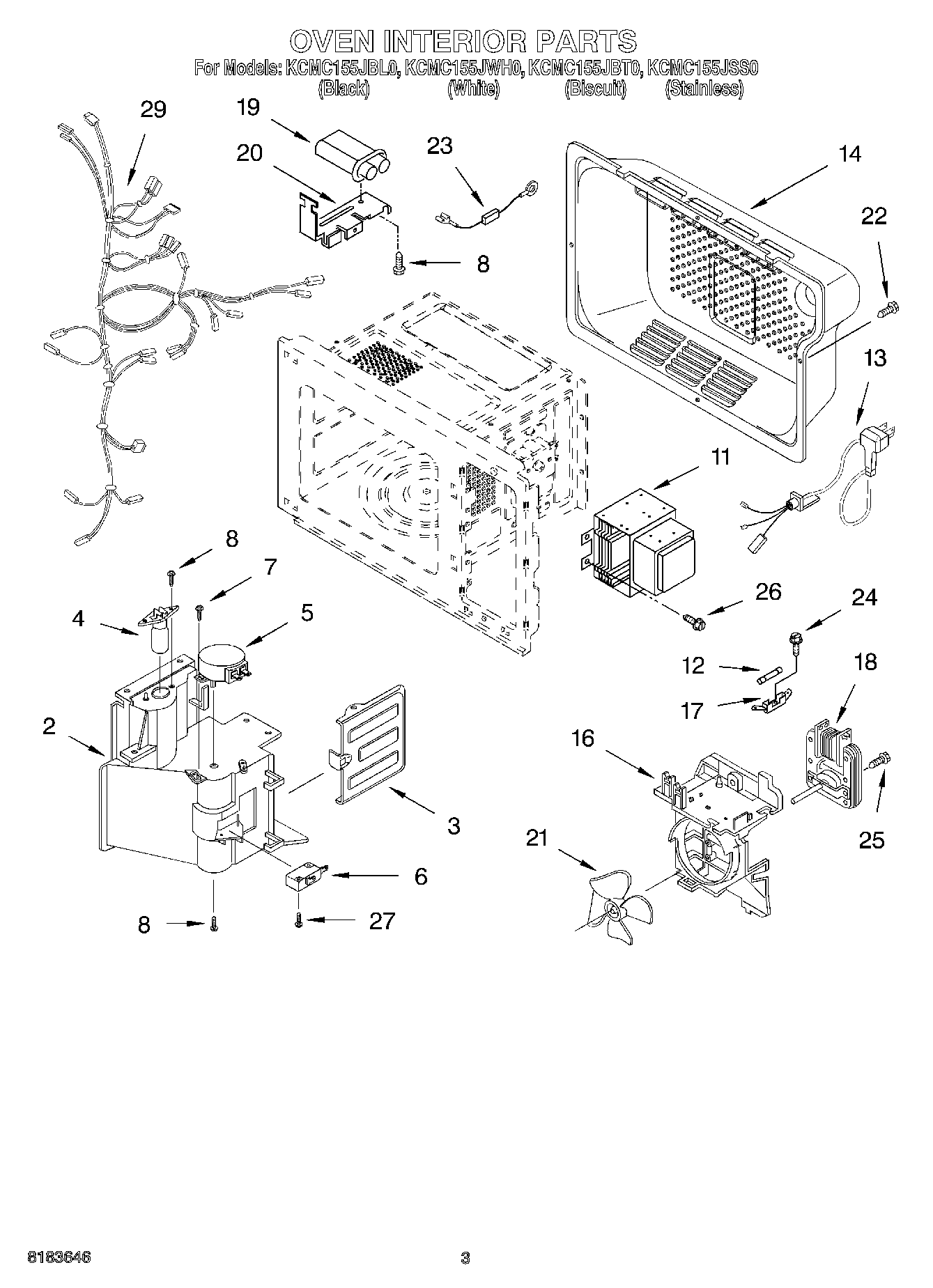

KCMC155JBT0 02 – OVEN INTERIOR

KCMC155JBT0 02 – OVEN INTERIOR

Written by

in

KCMC155JBT0 02 – OVEN INTERIOR

Products

PositionProduct
2Air Duct
3Bracket, Damper
4WP8183592 Whirlpool Microwave Lamp Bulb Assembly
5Motor, Stirrer
64392027 Whirlpool Microwave Primary Switch
7Screw
8Screw
11W10859575 Whirlpool Magnetron
12WP8183507 Whirlpool Microwave Fuse
13Power Cord
14Cover, Back
16Guide, Suction
17BLOCK-FUSE
18Motor, Fan
19Capacitor, H.V.
20Bracket, H.V.C.
21Blower Fan
22W11380570 Whirlpool Microwave Screw
23WP8205489 Whirlpool Microwave Voltage Wire
24Screw
25Screw
264344826 Whirlpool Refrigerator Screw
27Screw
29Harness, Main
