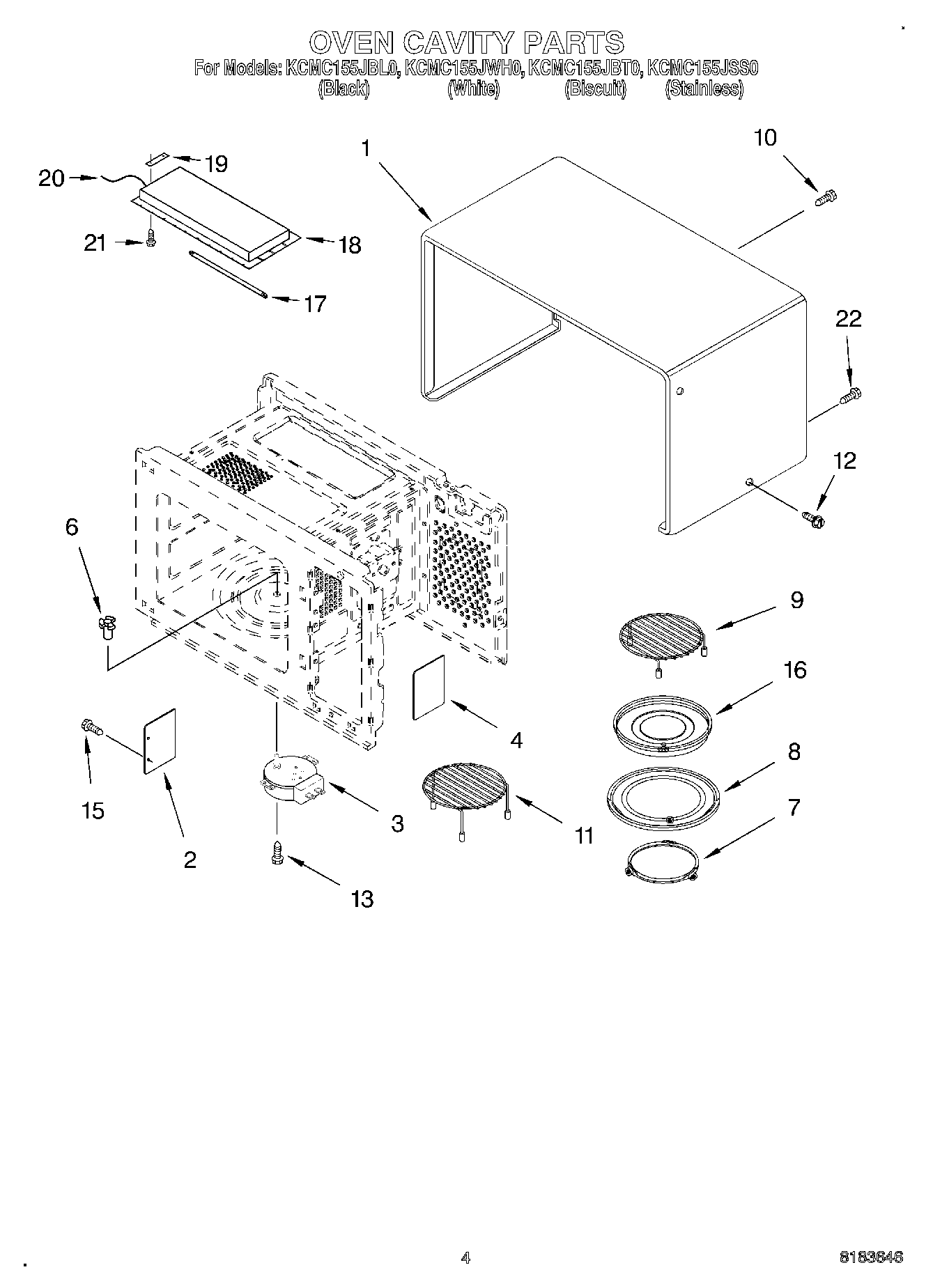

KCMC155JBT0 03 – OVEN CAVITY

Products

Position	Product
1	Outer Case (Stainless)
1	Outer Case (Biscuit)
1	Outer Case (White)
1	Outer Case (Black)
2	Canopy
3	Motor, Turntable
4	Glass, Lamp
6	Turntable Shaft
7	Ring Assembly
8	WP8172138 Whirlpool Microwave Cook Tray
9	Rack
10	W11380570 Whirlpool Microwave Screw
11	Rack, Broil
13	Screw
15	WP3196557 Whirlpool Screw
16	Pan, Drip
17	Heater
18	Cover, Heater
19	Connector
20	Lead Wire
21	4344826 Whirlpool Refrigerator Screw
22	Screw
