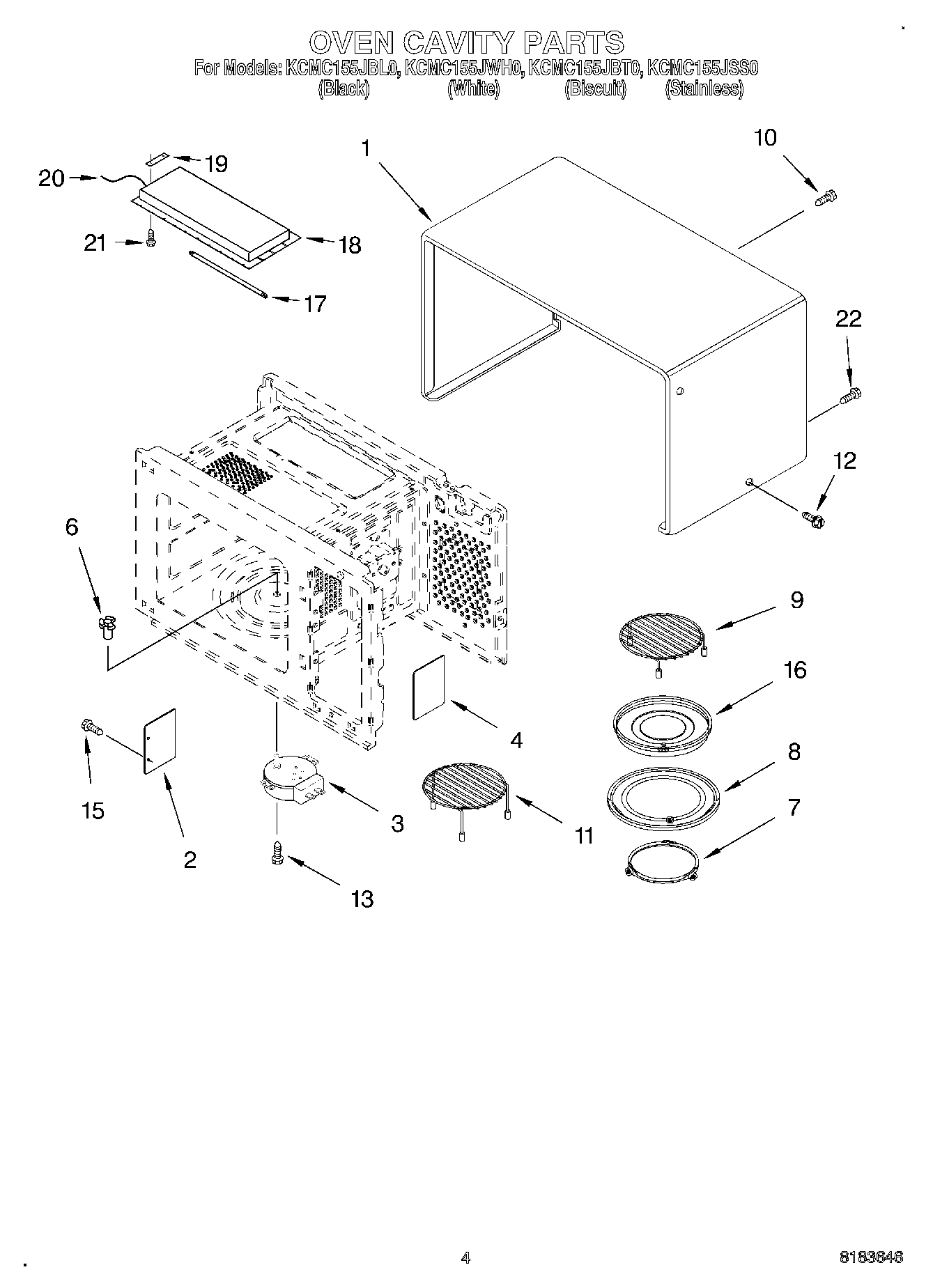

KCMC155JWH0 03 – OVEN CAVITY

Products

PositionProduct
1Outer Case (Stainless)
1Outer Case (Biscuit)
1Outer Case (White)
1Outer Case (Black)
2Canopy
3Motor, Turntable
4Glass, Lamp
6Turntable Shaft
7Ring Assembly
8WP8172138 Whirlpool Microwave Cook Tray
9Rack
10W11380570 Whirlpool Microwave Screw
11Rack, Broil
13Screw
15WP3196557 Whirlpool Screw
16Pan, Drip
17Heater
18Cover, Heater
19Connector
20Lead Wire
214344826 Whirlpool Refrigerator Screw
22Screw
