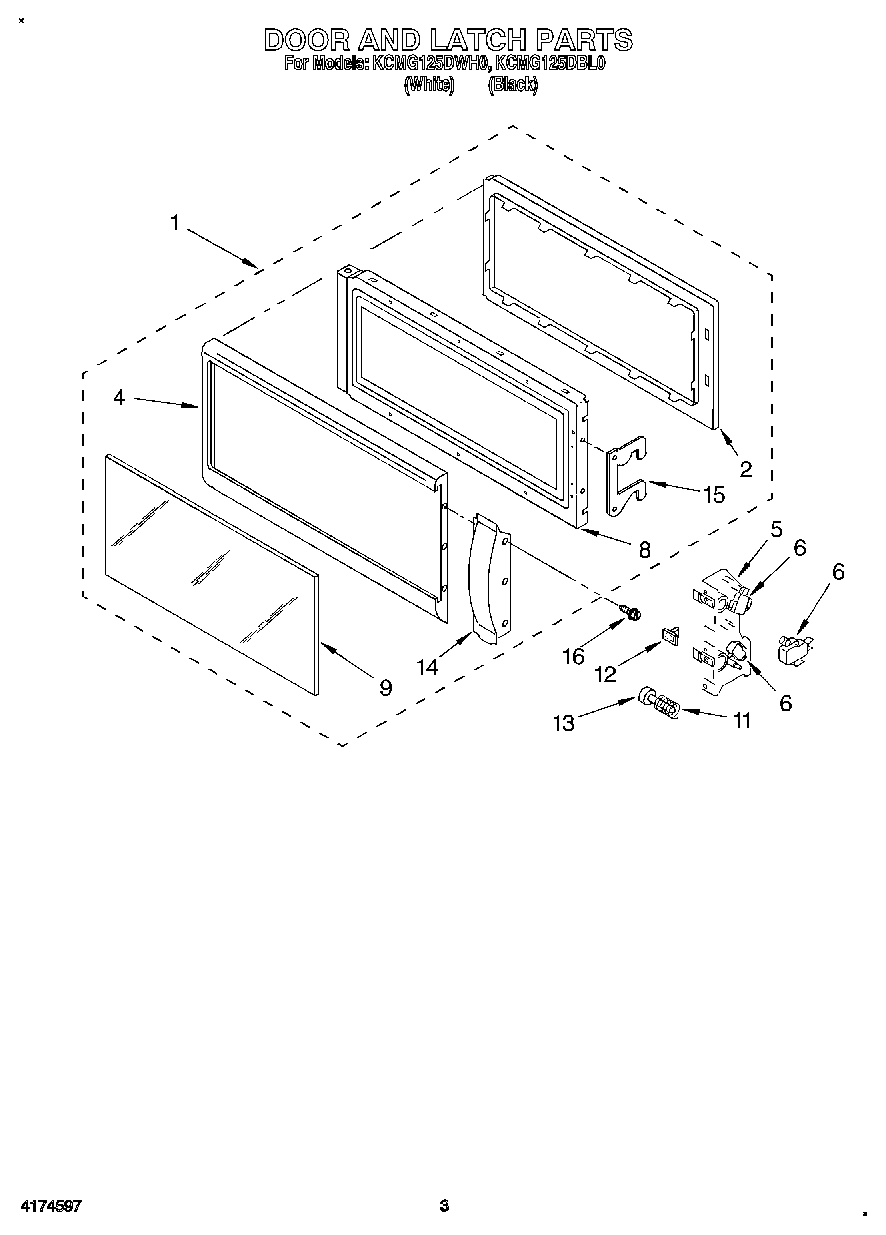

KCMG125DBL0 03 – DOOR AND LATCH

Products

Position	Product
1	Door, Complete (Black Model)
1	Door, Complete (White Model)
2	Choke Cover
4	Outer Frame (White Model)
4	Outer Frame (Black Model)
5	Latch Board
6	Micro Switch
8	Inner Frame
9	Outer Glass (White Model)
9	Outer Glass (Black Model)
11	Spring
12	Block, Slide
13	Cylinder
14	Handle, Door (Black Model)
15	Hook, Lock
16	Screw (Black Model)
16	461967825321 Whirlpool Microwave Screw
