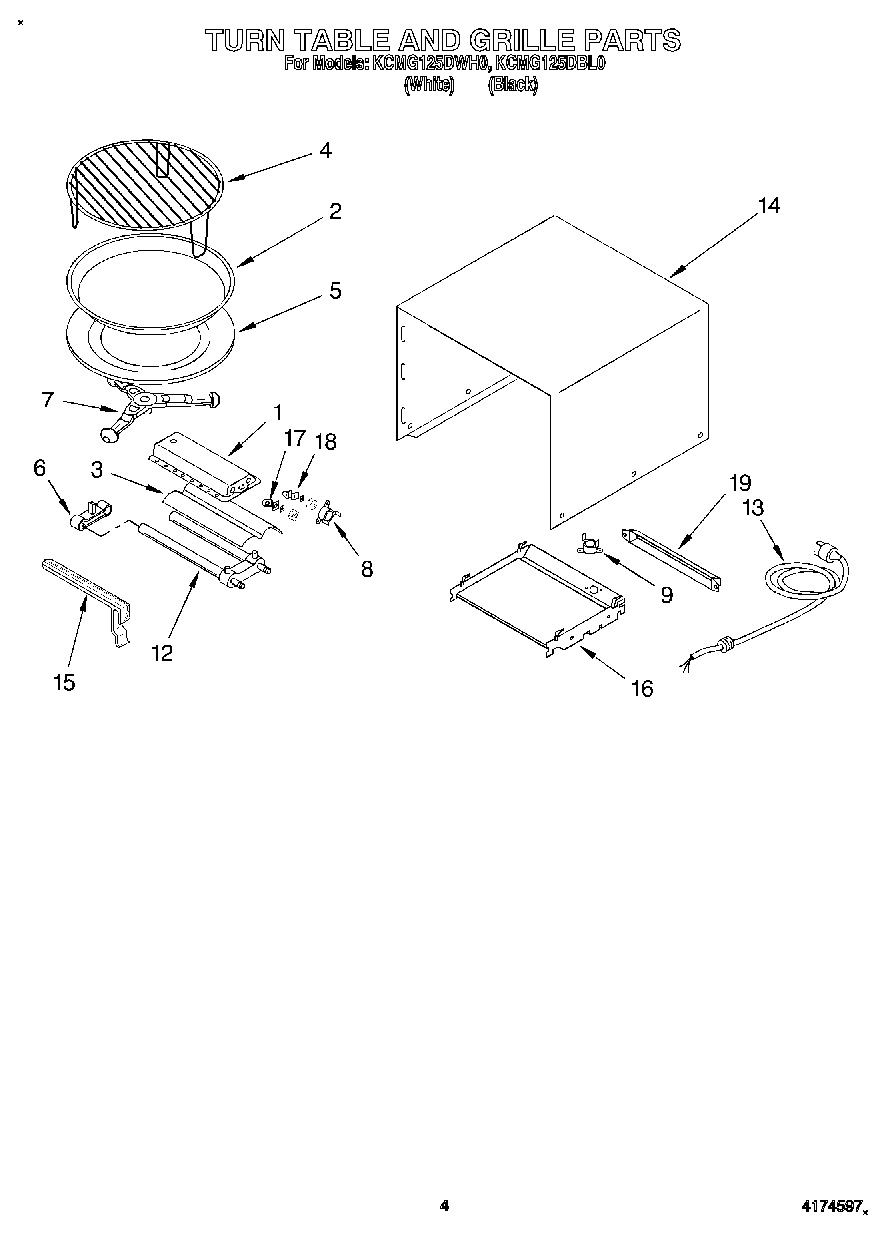

KCMG125DWH0 04 – TURN TABLE AND GRILLE
Written by
in
KCMG125DWH0 04 – TURN TABLE AND GRILLE
Products
Position
Product
1
Chamber, Reflector
2
WPW10120480 Whirlpool Crisper Pan
3
Reflector
4
Rack
5
W10818723 Whirlpool Cook Tray Glass
6
Support, Tube
7
Support, Turntable
8
Thermostat
9
Thermostat
12
Q Tube Assembly
13
Power Cord
14
Cabinet, Outer (White Model)
14
Cabinet, Outer (Black Model)
15
W10851464 Whirlpool Microwave Handle Panel
16
Plate, Insulation
17
Plug, Ceramic
18
Bushing
19
Grill
←
