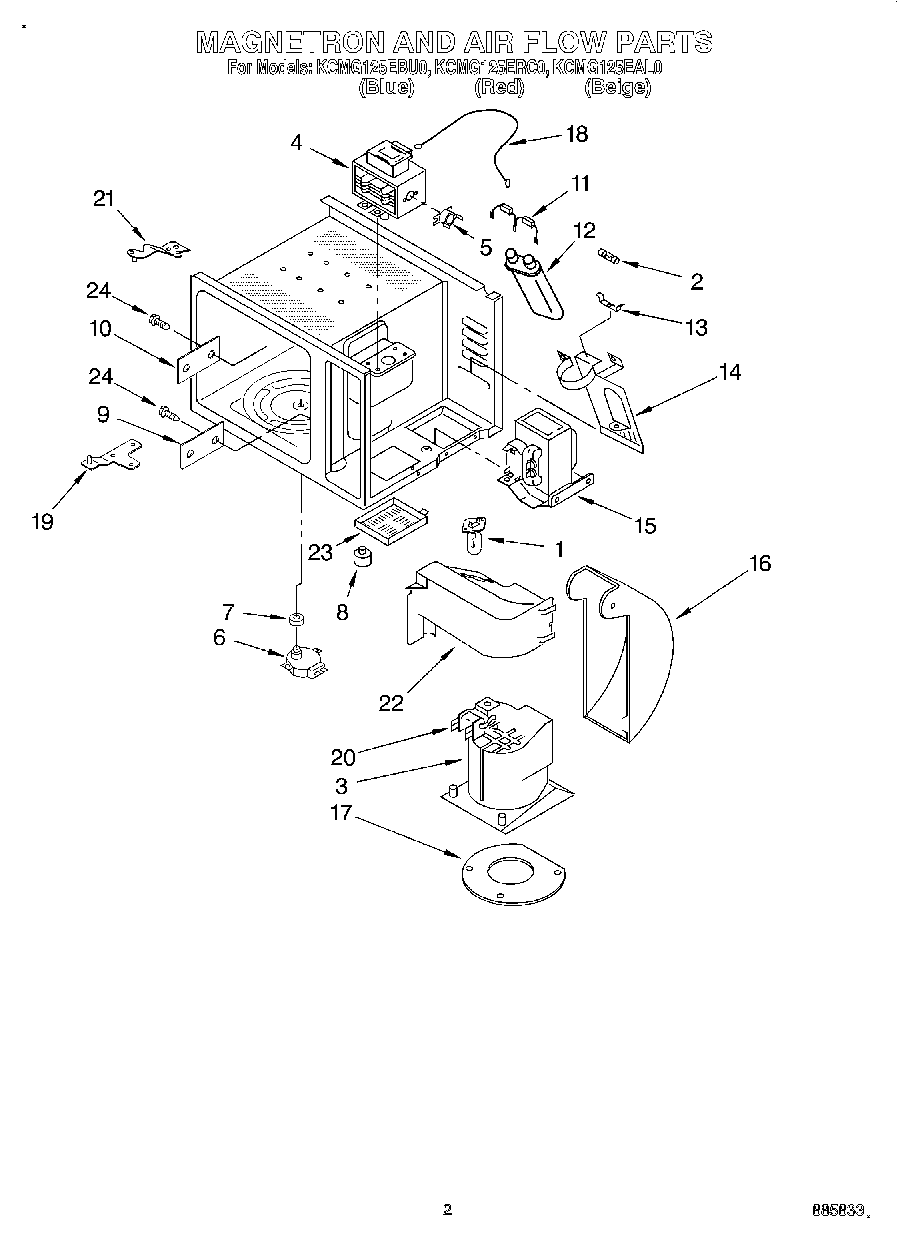

KCMG125EAL0 02 – MAGNETRON AND AIR FLOW, LITERATURE

Products

Position	Product
	Use And Care Guide
	Tech Sheet
	Cook Guide Label
	Cook Book
1	Lamp, Oven
2	Fuse
3	Cap, Fan
4	W10245183 Whirlpool Microwave Magnetron
5	Thermostat, Magnatron
6	Turntable
7	Ring, Rubber
8	Foot
9	Plate, Lower
10	Cover Plate, Upper
11	Diode
12	WP4375020 Whirlpool High Voltage Capacitor
13	W10245194 Whirlpool Microwave Fuse Block
14	Bracket, Capacitor
15	WP4375286 Whirlpool Microwave Transformer
16	Duct, Inlet
17	Cap, Bottom
18	Wire Harness
19	Hinge, Lower
20	MOTOR-FAN
21	Hinge, Upper
22	Duct, Air
23	Cover, Inlet
24	Screw
