KCMG125ERC0 02 – MAGNETRON AND AIR FLOW, LITERATURE

Products

PositionProduct
Use And Care Guide
Tech Sheet
Cook Guide Label
Cook Book

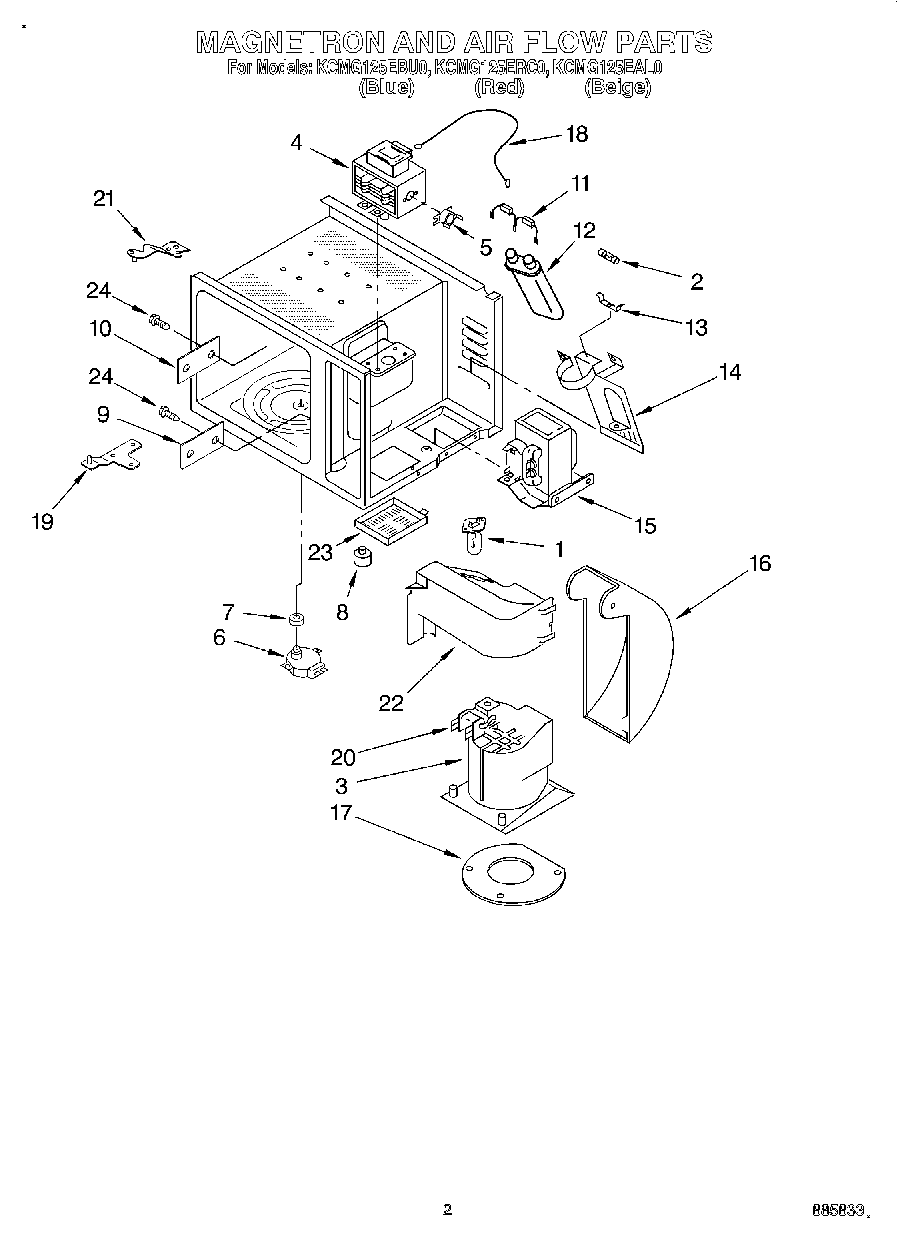

1Lamp, Oven
2Fuse
3Cap, Fan
4W10245183 Whirlpool Microwave Magnetron
5Thermostat, Magnatron
6Turntable
7Ring, Rubber
8Foot
9Plate, Lower
10Cover Plate, Upper
11Diode
12WP4375020 Whirlpool High Voltage Capacitor
13W10245194 Whirlpool Microwave Fuse Block
14Bracket, Capacitor
15WP4375286 Whirlpool Microwave Transformer
16Duct, Inlet
17Cap, Bottom
18Wire Harness
19Hinge, Lower
20MOTOR-FAN
21Hinge, Upper
22Duct, Air
23Cover, Inlet
24Screw
