KCMG125ERC0 03 – DOOR AND LATCH – Aparts

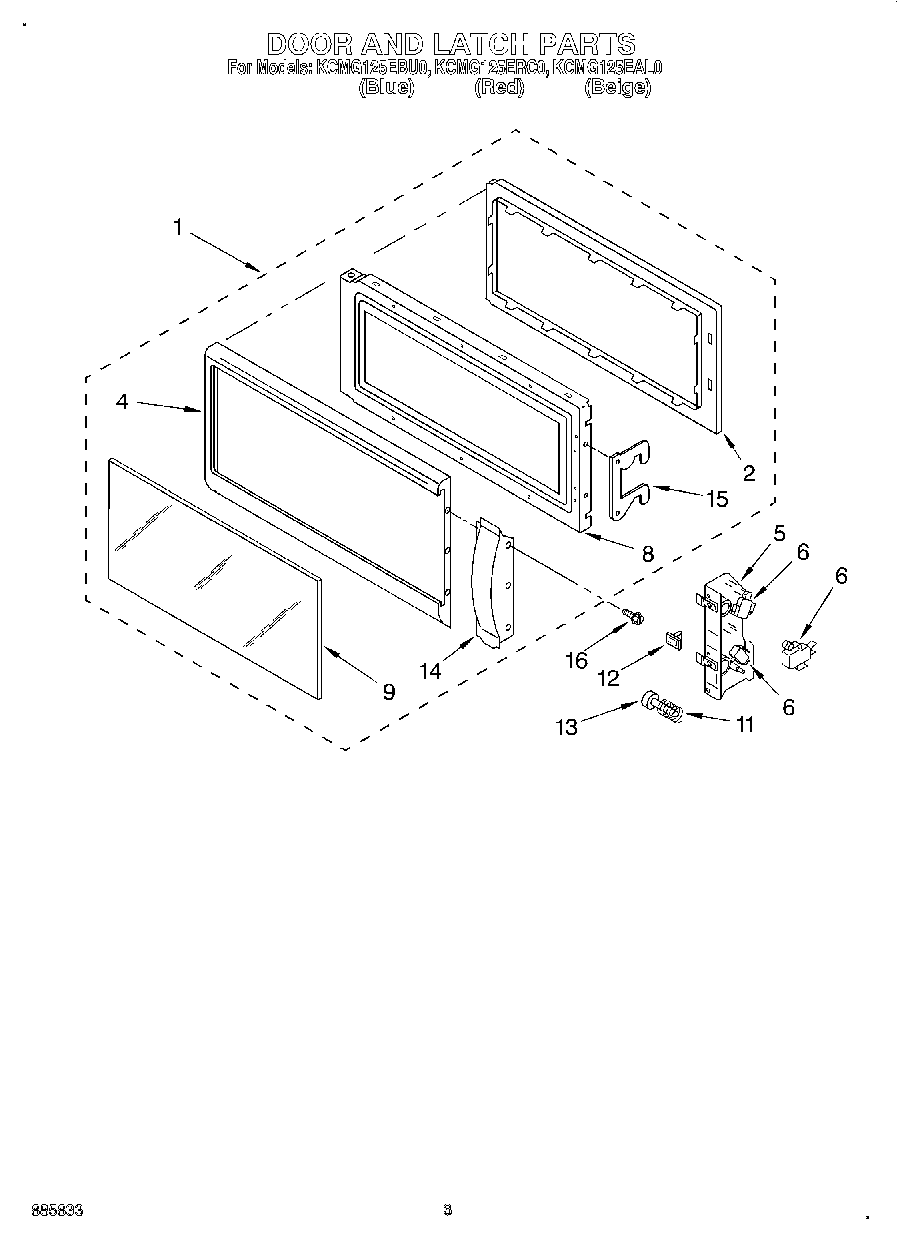

KCMG125ERC0 03 – DOOR AND LATCH

Products

Position	Product
1	Door, Complete (Blue Model)
1	Door, Complete (Red Model)
1	Door, Complete (Beige Model)
2	Choke Cover
4	Outer Frame (Red Model)
4	Outer Frame (Beige Model)
4	Outer Frame (Blue Model)
5	Latch Board
6	Micro Switch
8	Inner Frame
9	Outer Glass (Black Model)
9	Outer Glass (Beige)
9	Outer Glass (White Model)
11	Spring
12	Block, Slide
13	Cylinder
14	Handle, Door (Beige Model)
14	Handle, Door (Red Model)
14	Handle, Door (Blue Model)
15	Hook, Lock
16	Screw (Black Model)
16	461967825321 Whirlpool Microwave Screw
