KCMG125ERC0 04 – TURNTABLE AND GRILLE

KCMG125ERC0 04 – TURNTABLE AND GRILLE

Written by

in

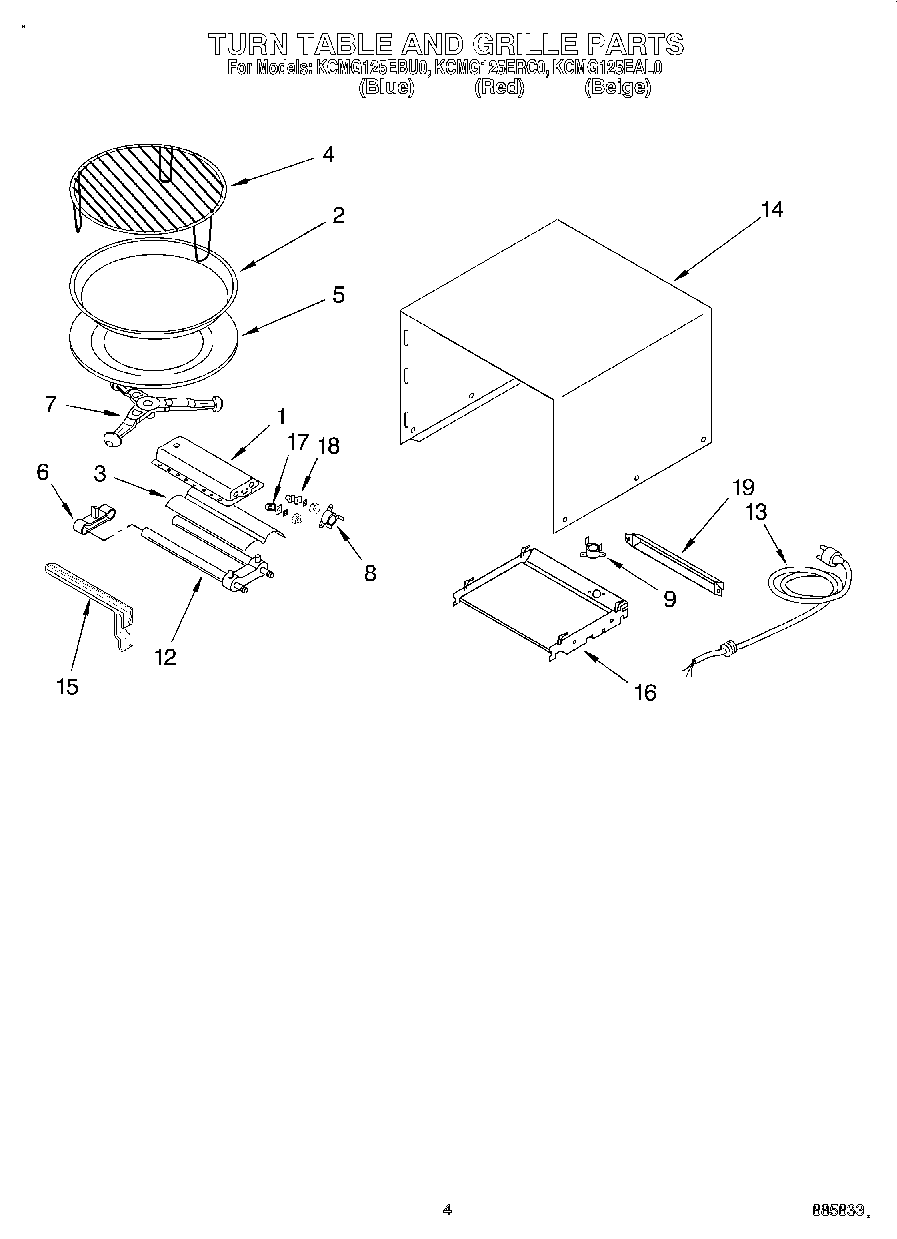

KCMG125ERC0 04 – TURNTABLE AND GRILLE

Products

PositionProduct
1Chamber, Reflector
2WPW10120480 Whirlpool Crisper Pan
3Reflector
4Rack
5W10818723 Whirlpool Cook Tray Glass
6Support, Tube
7Support, Turntable
8Thermostat
9Thermostat
12Q Tube Assembly
13Power Cord
14Cabinet, Outer (Blue Model)
14Cabinet, Outer (Red Model)
14Cabinet, Outer (Beige Model)
15W10851464 Whirlpool Microwave Handle Panel
16Plate, Insulation
17Plug, Ceramic
18Bushing
19Grill
