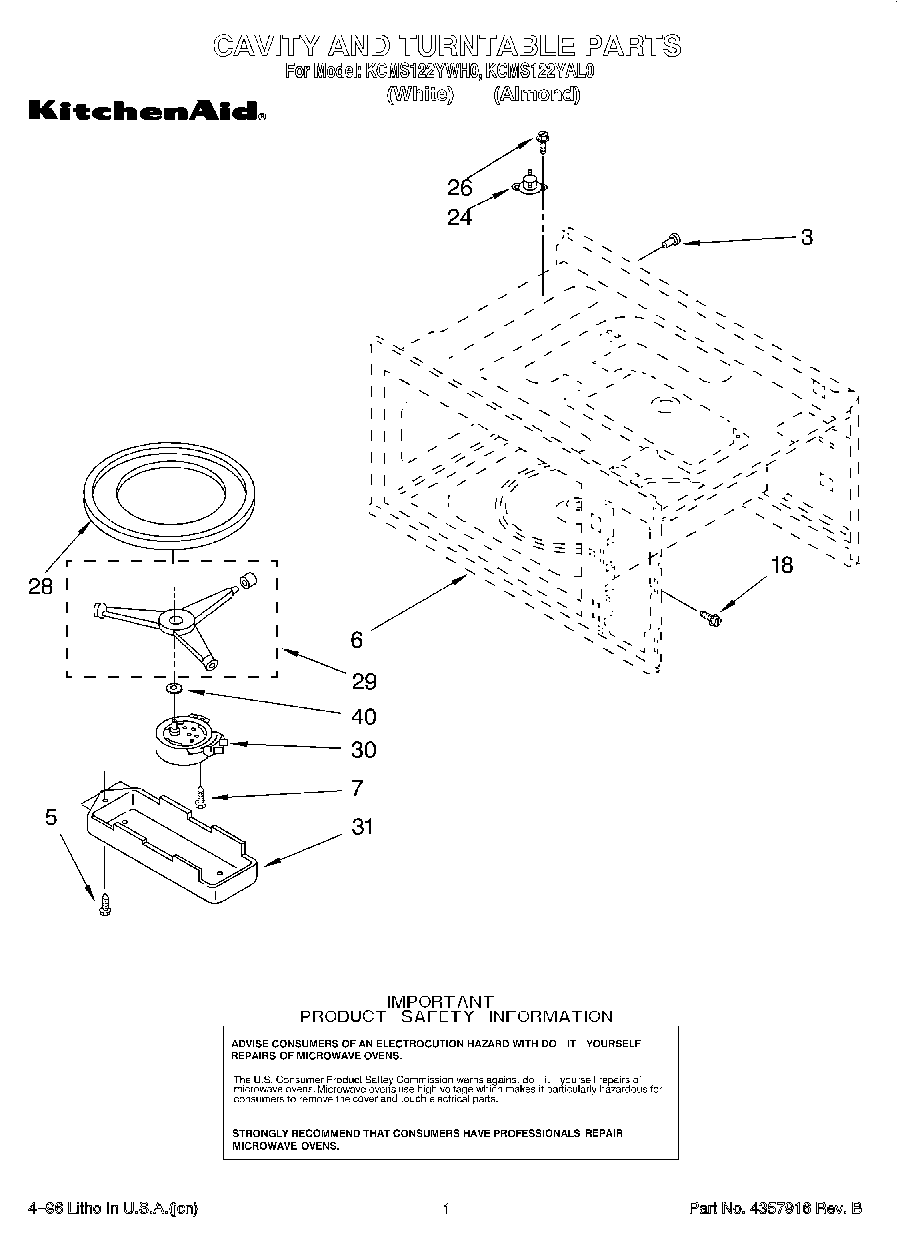

KCMS122YAL0 01 – CAVITY AND TURNTABLE

Written by

Products

Position	Product
3	Spacer
5	Screw
6	Cavity, Oven (Not a Serviceable Part)
7	Screw
18	SCREW
24	Fuse, Temp
26	Screw
28	WP8184775 Whirlpool Microwave Cooking Tray
29	Support, Turntable
30	Motor, Turntable
31	Cover, Motor
40	Gasket, Turntable
