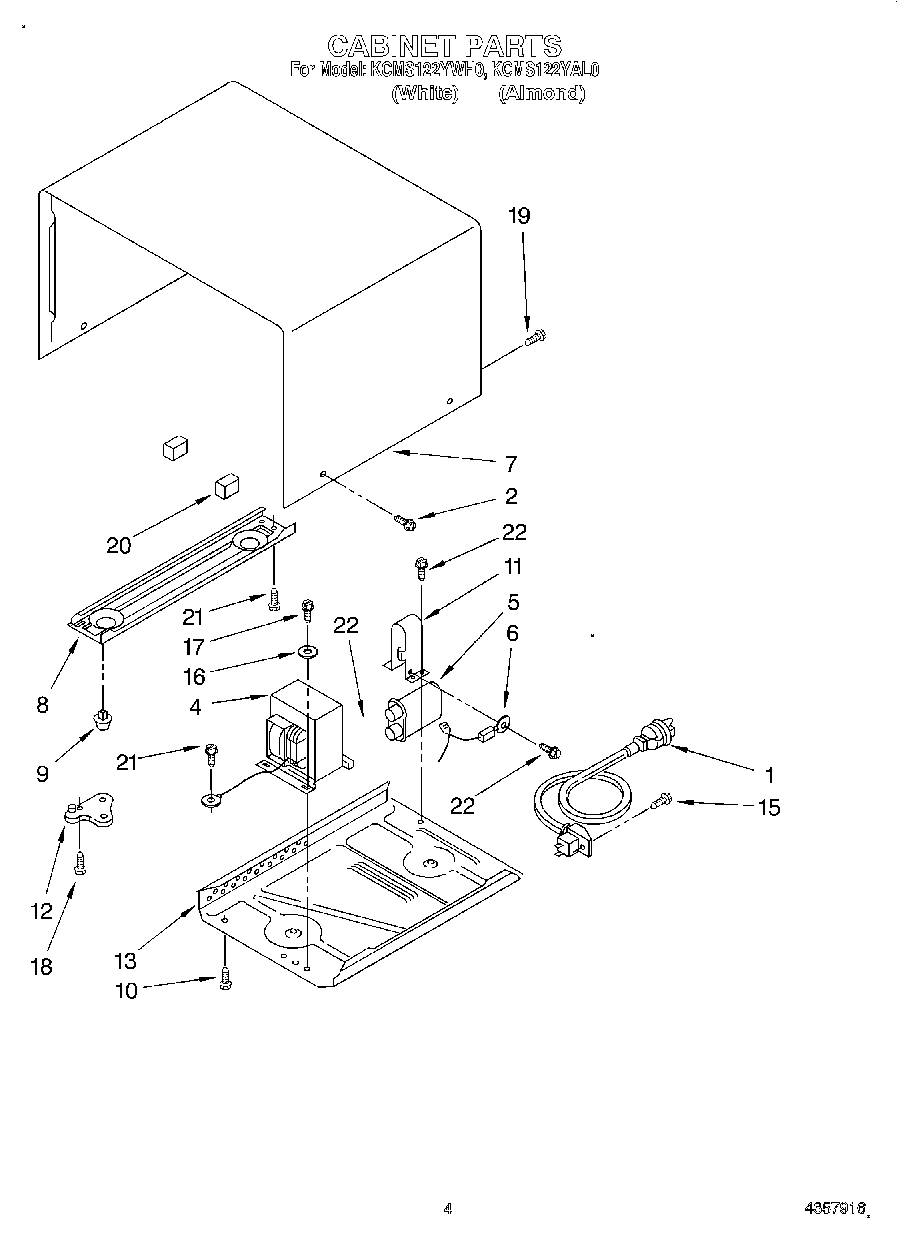

KCMS122YAL0 04 – CABINET

KCMS122YAL0 04 – CABINET

Written by

in

KCMS122YAL0 04 – CABINET

Products

PositionProduct
1Power Cord
2Screw
4Transformer
5Capacitor
6Rectifier
7Almond
7White
7Outer Cabinet
8Base Plate, Left Side
9Foot (4)
10Screw
11Bracket, Capacitor
12Hinge, Lower
13Base Plate, Right Side
15Screw
16Washer, Trans. Ground
17Screw
18Screw
19Screw
20Shield, Wire (2)
21Screw
22Screw
