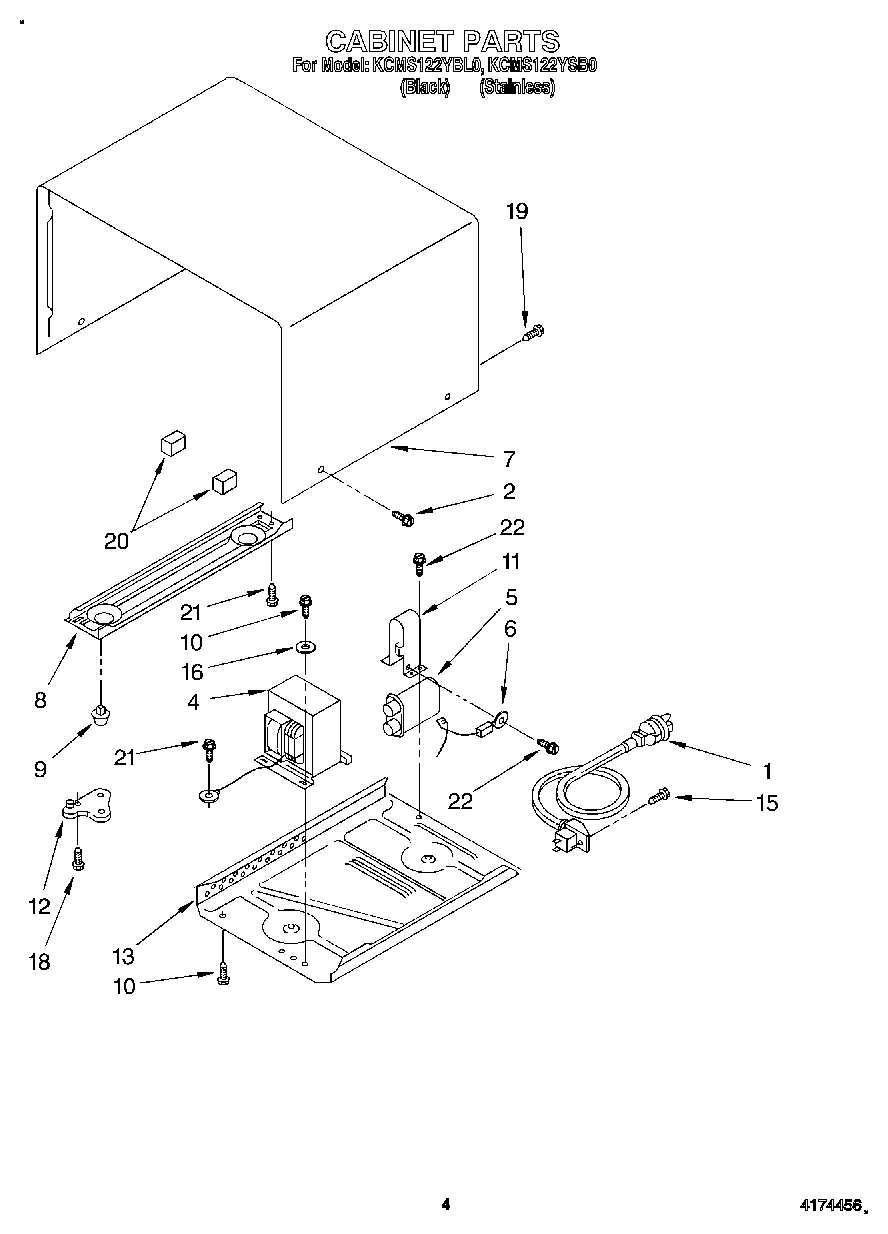

KCMS122YBL0 04 – CABINET

Written by

Products

Position	Product
1	Power Cord
2	Screw
2	Screw, 4 x 12 mm
4	Transformer
5	Capacitor
6	Rectifier
7	Outer Cabinet (Black Model)
7	Outer Cabinet (Stainless Model)
8	Base Plate, Left Side
9	Foot (4)
10	Screw
11	Bracket, Capacitor
12	Hinge, Lower
13	Base Plate, Right Side
15	Screw
16	Washer, Trans. Ground
18	Screw
19	Screw
20	Shield, Wire (2)
21	Screw
22	Screw
