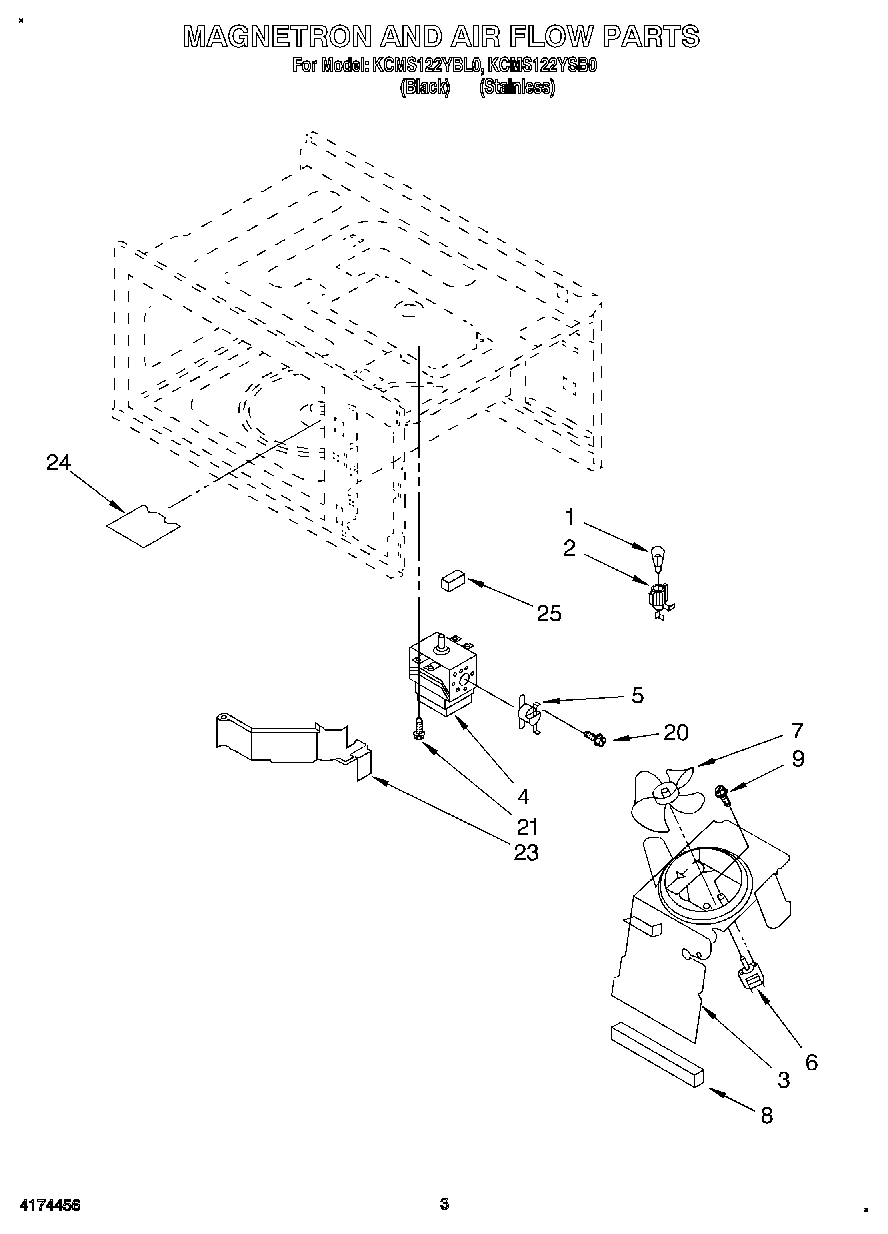

KCMS122YSB0 03 – MAGNETRON AND AIR FLOW
Products
| Position | Product |
|---|---|
| 1 | Lamp, Oven |
| 2 | Socket, Lamp |
| 3 | Duct, Fan |
| 4 | Magnetron |
| 5 | Fuse, Magnetron Temp |
| 6 | Motor, Fan |
| 7 | Blade, Fan |
| 8 | Cushion, Motor |
| 9 | Screw |
| 20 | Screw |
| 21 | Screw |
| 23 | Duct, Magnetron |
| 24 | Cover, Wave Guide |
| 25 | Shield, Magnetron |
