KCMS122YWH0 04 – CABINET – Aparts

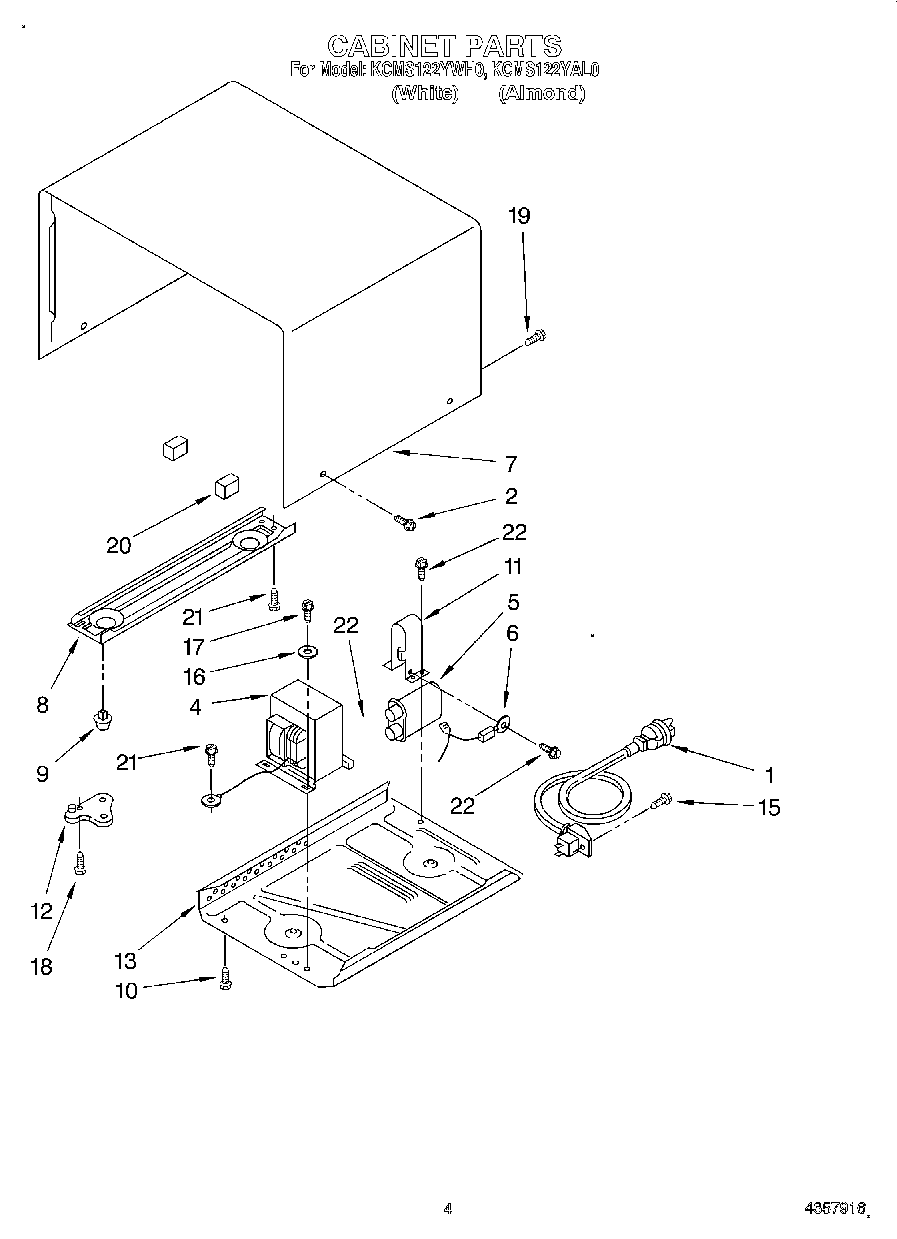

KCMS122YWH0 04 – CABINET

Products

Position	Product
1	Power Cord
2	Screw
4	Transformer
5	Capacitor
6	Rectifier
7	Almond
7	White
7	Outer Cabinet
8	Base Plate, Left Side
9	Foot (4)
10	Screw
11	Bracket, Capacitor
12	Hinge, Lower
13	Base Plate, Right Side
15	Screw
16	Washer, Trans. Ground
17	Screw
18	Screw
19	Screw
20	Shield, Wire (2)
21	Screw
22	Screw
