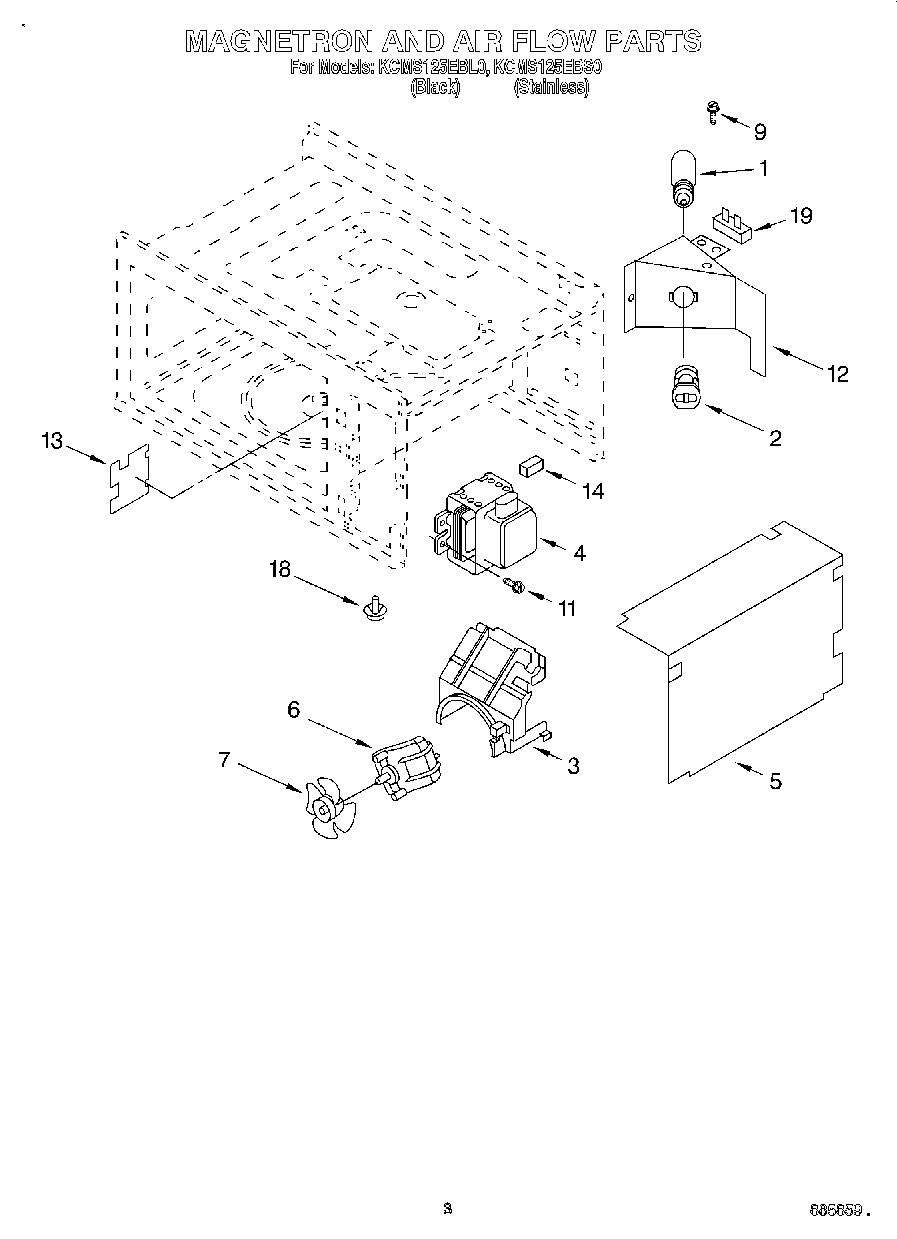

KCMS125EBL0 02 – MAGNETRON AND AIR FLOW
Products
| Position | Product |
|---|---|
| 1 | Lamp, Oven |
| 2 | Socket, Lamp |
| 3 | Duct, Fan |
| 4 | Magnetron |
| 5 | Barrier |
| 6 | Motor, Fan |
| 7 | Blade, Fan |
| 9 | Screw |
| 11 | Screw |
| 12 | Duct, Magnetron |
| 13 | Cover, Wave Guide |
| 14 | Cushion |
| 18 | Foot |
| 19 | Fuse, Temp |
KCMS125EBL0 02 – MAGNETRON AND AIR FLOW
| Position | Product |
|---|---|
| 1 | Lamp, Oven |
| 2 | Socket, Lamp |
| 3 | Duct, Fan |
| 4 | Magnetron |
| 5 | Barrier |
| 6 | Motor, Fan |
| 7 | Blade, Fan |
| 9 | Screw |
| 11 | Screw |
| 12 | Duct, Magnetron |
| 13 | Cover, Wave Guide |
| 14 | Cushion |
| 18 | Foot |
| 19 | Fuse, Temp |
