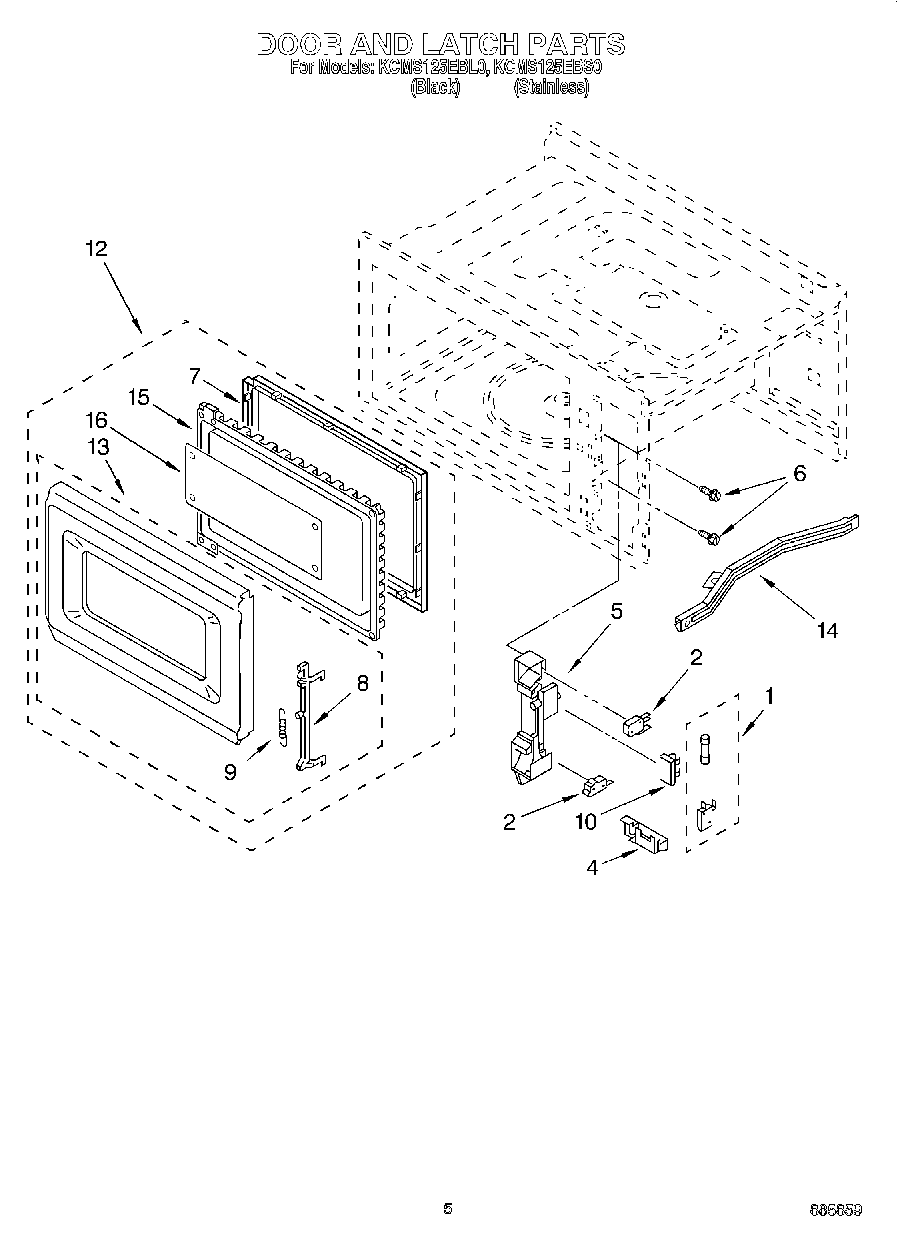

KCMS125EBS0 04 – DOOR AND LATCHadmin2025-04-26T12:35:54+00:00KCMS125EBS0 04 – DOOR AND LATCH
Products
| Position | Product |
|---|
| 1 | 4313105 Whirlpool Microwave Switch |
| 2 | 4392027 Whirlpool Microwave Primary Switch |
| 4 | Lever, Release |
| 5 | Latch Hook |
| 6 | SCREW |
| 7 | Choke Cover |
| 8 | Latch, Door |
| 9 | Spring, Latch |
| 10 | Holder, Fuse |
| 12 | Door, Complete (Stainless) |
| 12 | Door, Complete (Black) |
| 13 | Frame, Door (Stainless) |
| 13 | Frame, Door (Black) |
| 14 | Support |
| 15 | Panel, Door |
| 16 | Screen, Door |
