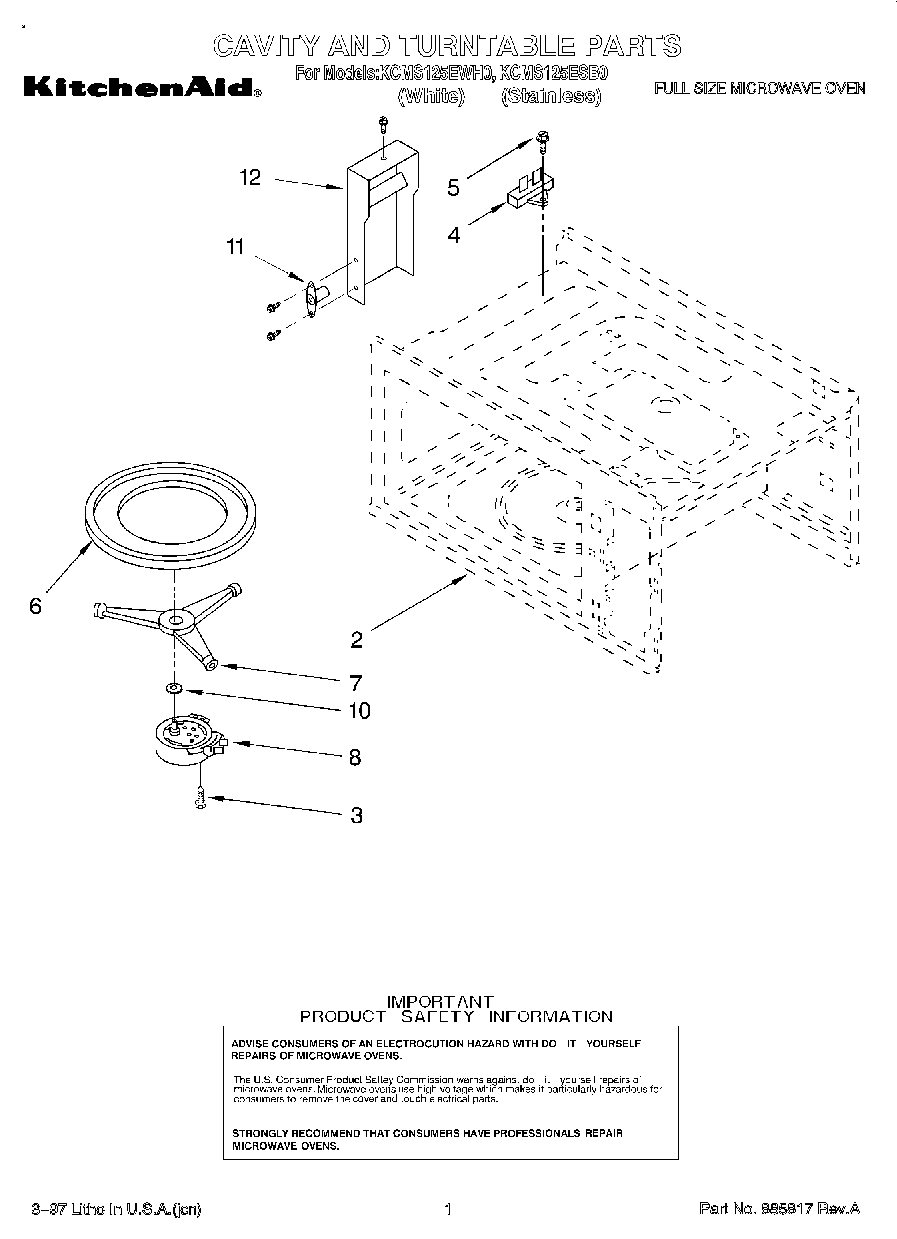

KCMS125ESB0 01 – CAVITY AND TURNTABLE, LIT/OPTIONAL

Written by

Products

Position	Product
	30“ Built-In Kit (White)
	27“ Built-In Kit (Stainless)
	24“ Built-In Kit (Stainless)
	30“ Built-In Kit (Stainless)
	Use & Care Guide
	Installation, instr.
	Tech Sheet
	24“ Built-In Kit (White)
	27“ Built-In Kit (White)
2	Cavity, Oven (Not a Serviceable Part)
4	Fuse, Temp
5	Screw
6	WP8184775 Whirlpool Microwave Cooking Tray
7	Support, Turntable
8	Motor, Turntable
10	Gasket, Turntable
11	Sensor
11	Screw
12	Cord Brown (1/2 Oz.)
12	SCREW
12	261900 Whirlpool Microwave Spray
12	Wire, 25` Roll (Black 14 Ga.)
12	Wire, 25` Roll (Red 14 Ga.)
12	Wire, 25“ Roll (White 14 GA.)
12	WP482338 Whirlpool Refrigerator Adhesive
12	242831 Whirlpool Oven Wire
12	WP261869 Whirlpool Microwave Paint
12	Wire (14 Ga. 150 c Blue)
12	Wire (14 Ga. 150 c Brown)
12	Wire (14 Ga. 150 c Green)
12	Wire (14 Ga. 150 c Orange)
12	Wire (14 Ga. 150 c Yellow)
12	Wire (12 Ga. 150 c Black)
12	18 Ga. 80~c Rating (Red)
12	Wire (14 Ga. 200 c Brown)
12	1
12	WPL 591014
12	Duct, Sensor
