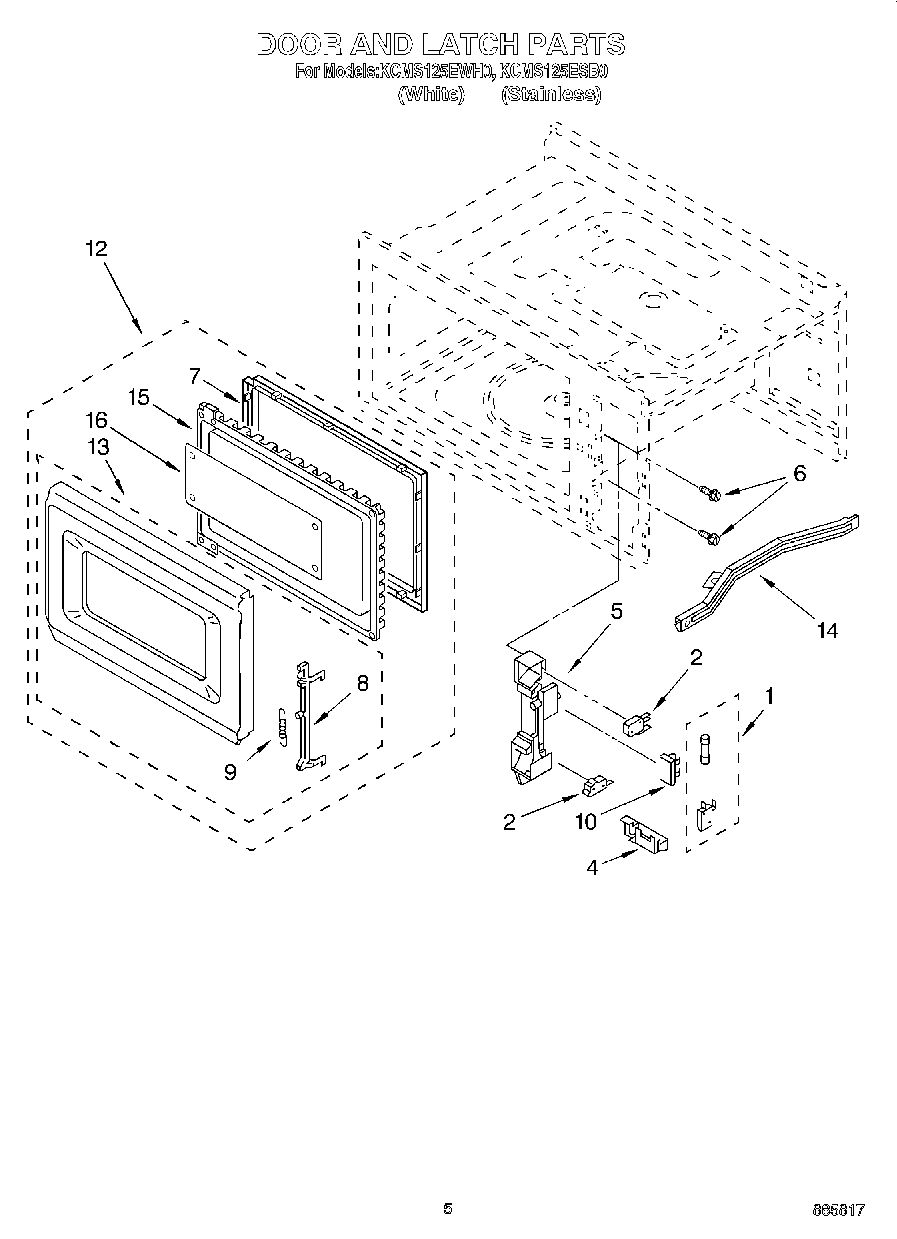

KCMS125ESB0 04 – DOOR AND LATCH

Written by

Products

Position	Product
1	4313105 Whirlpool Microwave Switch
2	4392027 Whirlpool Microwave Primary Switch
4	Latch Lever
5	Latch Hook
6	SCREW
7	Choke Cover
8	Latch, Door
9	Spring, Latch
10	Holder, Fuse
12	Door, Complete (Stainless)
12	Door, Complete (White)
13	Frame, Door (Stainless)
13	Frame, Door (White)
14	Support
15	Panel, Door
16	Screen, Door
