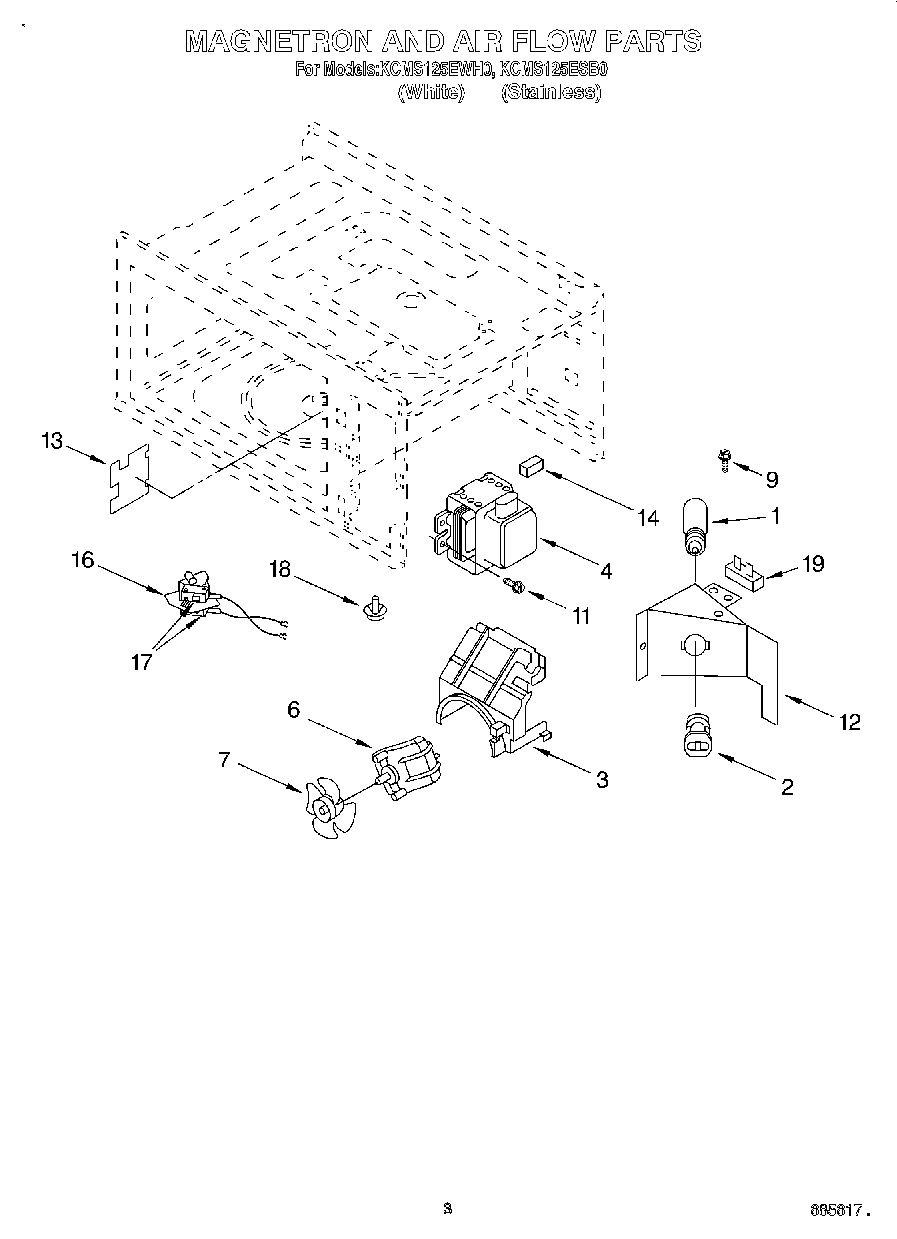

KCMS125EWH0 02 – MAGNETRON AND AIR FLOW

Written by

Products

Position	Product
1	Lamp, Oven
2	Socket, Lamp
3	Duct, Fan
4	Magnetron
6	Motor, Fan
7	Blade, Fan
9	Screw
11	Screw
12	Duct, Magnetron
13	Cover, Wave Guide
14	Cushion
16	Adapter, Service
17	4392027 Whirlpool Microwave Primary Switch
18	Foot
19	Fuse, Temp
