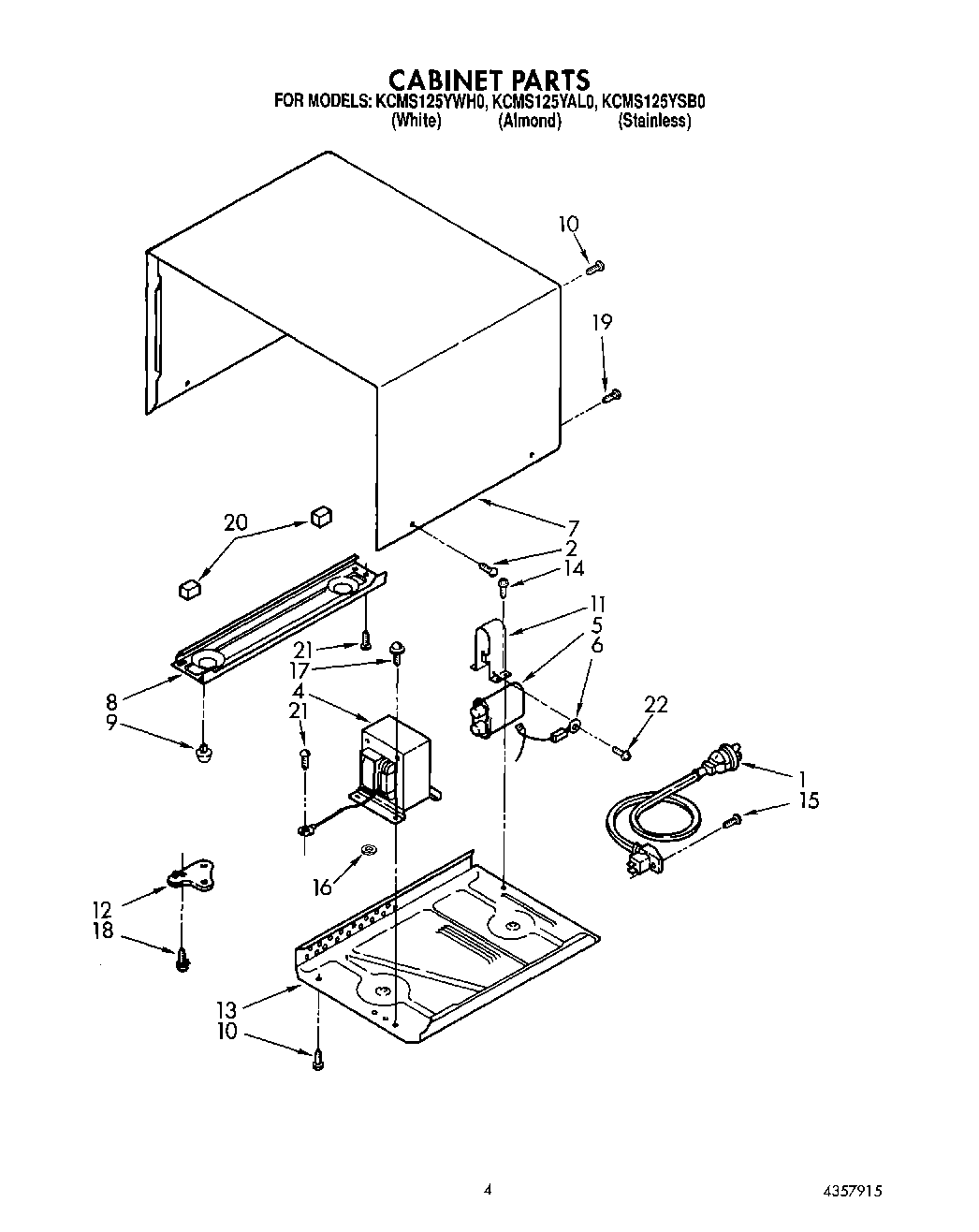

KCMS125YAL0 03 – CABINET

Written by

Products

Position	Product
1	Power Cord
2	Screw
4	Transformer
5	Capacitor
6	Rectifier
7	Almond
7	White
7	Outer Cabinet (Stainless Model)
8	Base Plate, Left Side
9	Foot (4)
10	Screw
11	Bracket, Capacitor
12	Hinge, Lower
13	Base Plate, Right Side
14	Screw
15	Screw
16	Washer, Trans. Ground
17	Screw
18	Screw
19	Screw
20	Shield, Wire (2)
21	Screw
22	Screw
