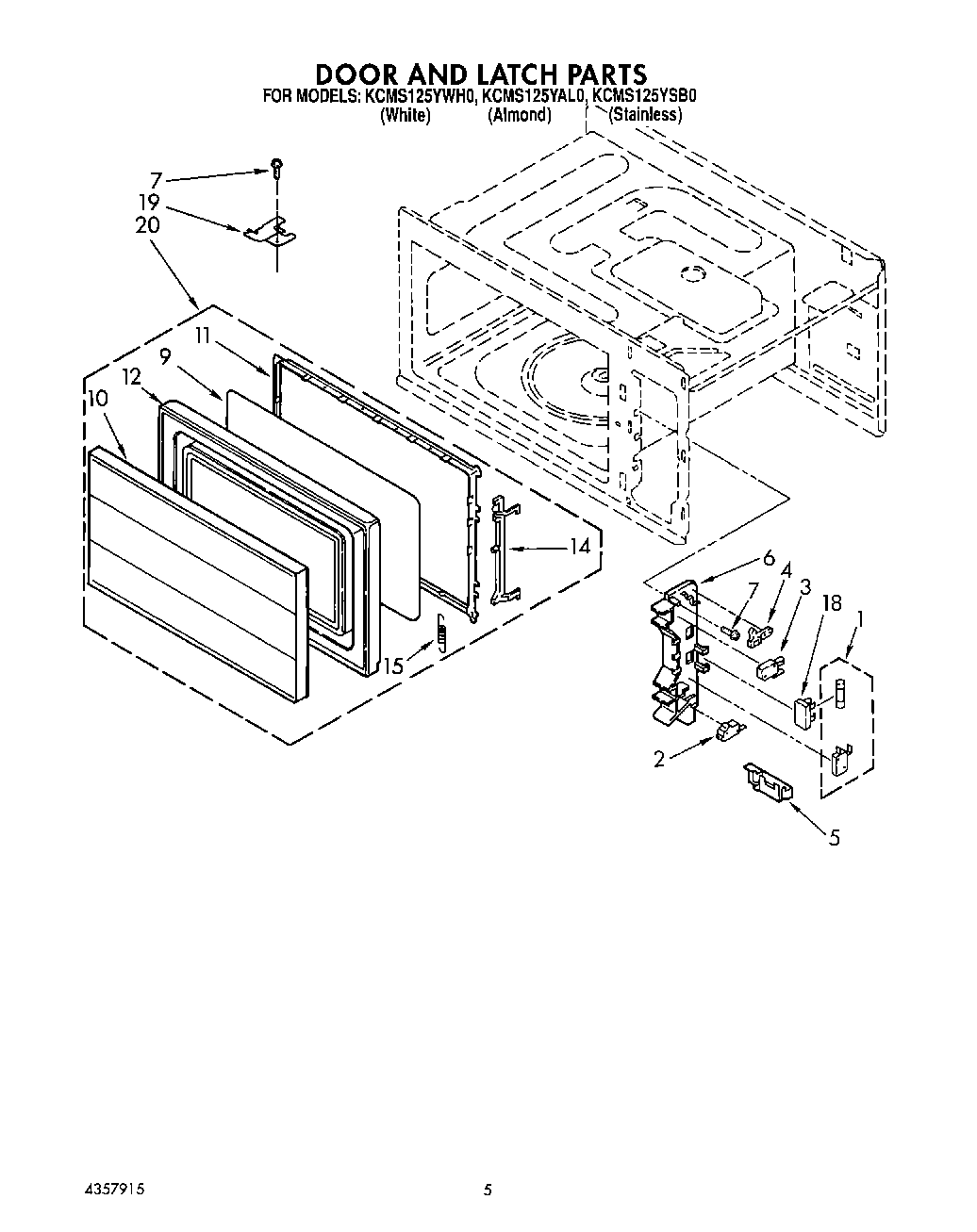

KCMS125YAL0 04 – DOOR AND LATCHadmin2025-04-26T12:35:17+00:00KCMS125YAL0 04 – DOOR AND LATCH
Products
| Position | Product |
|---|
| 1 | Switch and Fuse Assembly |
| 3 | 4392027 Whirlpool Microwave Primary Switch |
| 4 | Hook, Lever |
| 5 | Latch Lever |
| 6 | Latch Hook |
| 7 | SCREW |
| 9 | Seal, Door (Not a Serviceable Part) |
| 10 | Screen, Door (Stainless Model) |
| 10 | Screen, Door (White) |
| 10 | Screen, Door (Almond) |
| 11 | Choke Cover |
| 12 | Frame, Door (Not Serviceable) |
| 14 | Latch, Door |
| 15 | Spring, Latch |
| 18 | Holder, Fuse |
| 19 | Hinge, Upper |
| 20 | Door, Complete (Almond) |
| 20 | Door, Complete (White) |
| 20 | Door, Complete (Stainless) |
