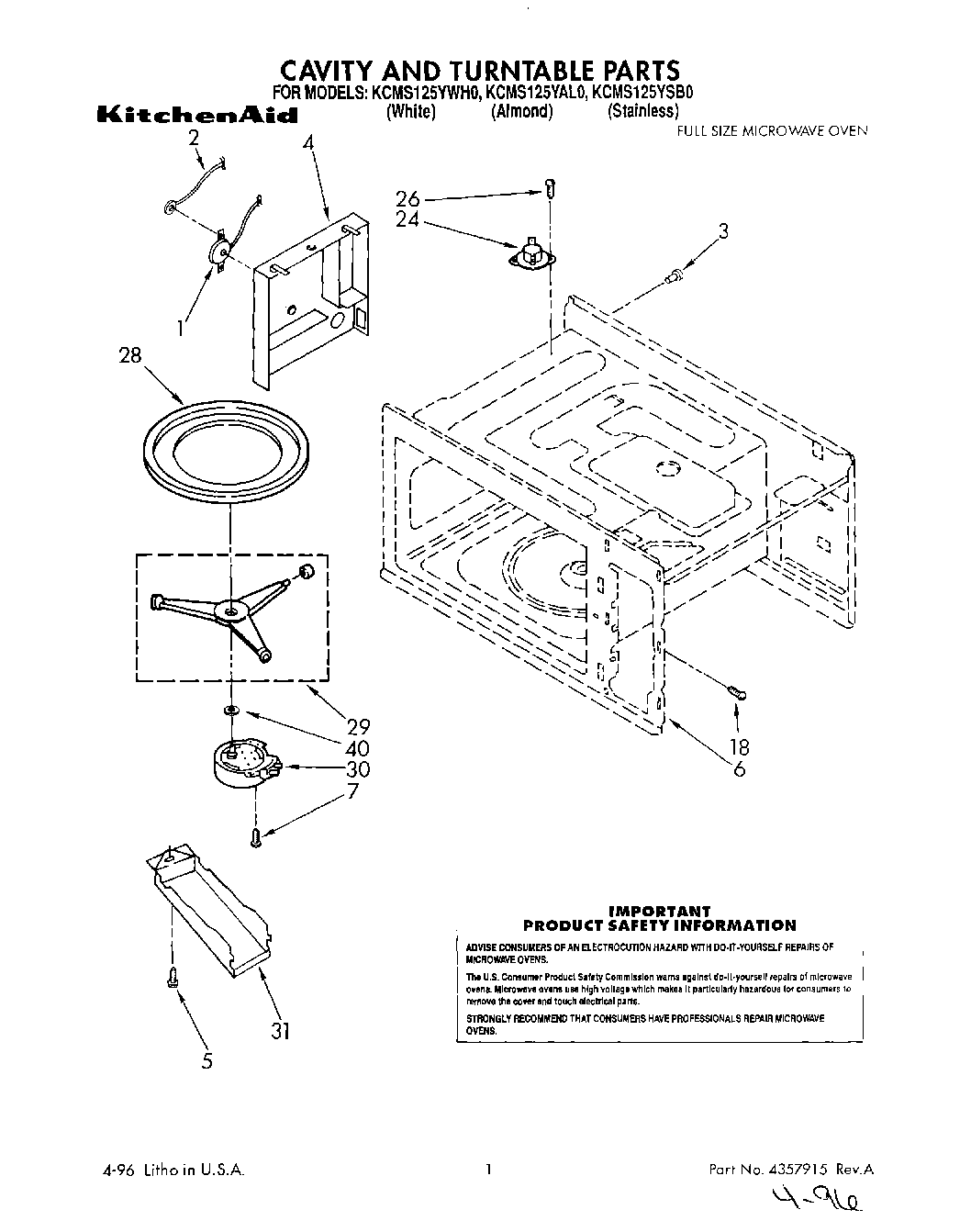

KCMS125YSB0 01 – CAVITY AND TURNTABLE, LIT/OPTIONAL

Products

Position	Product
	Trim, White
	Trim, Almond
	Trim, Gray
	Cookbook Microwave
	Tech Sheet
	List, Repair Parts
1	Sensor, Absolute Humidity
2	Wire, Ground (Sensor)
3	Spacer
4	Duct, Sensor
5	Screw
6	Cavity, Oven (Not a Serviceable Part)
7	Screw
18	SCREW
24	Fuse, Temp
26	Screw
28	WP8184775 Whirlpool Microwave Cooking Tray
29	Support, Turntable
30	Motor, Turntable
31	Cover, Motor
40	242831 Whirlpool Oven Wire
40	WP482338 Whirlpool Refrigerator Adhesive
40	WP261869 Whirlpool Microwave Paint
40	Wire, 25`` Roll (White 14 GA.)
40	Wire, 25` Roll (Red 14 Ga.)
40	Wire, 25` Roll (Black 14 Ga.)
40	Wire (14 Ga. 150 c Blue)
40	Cord Brown (1/2 Oz.)
40	Wire (14 Ga. 150 c Brown)
40	Wire (14 Ga. 200 c Brown)
40	1
40	WPL 591014
40	261900 Whirlpool Microwave Spray
40	Wire (12 Ga. 150 c Black)
40	Gasket, Turntable
40	Wire (14 Ga. 150 c Yellow)
40	Wire (14 Ga. 150 c Orange)
40	Wire (14 Ga. 150 c Green)
40	18 Ga. 80~c Rating (Red)
