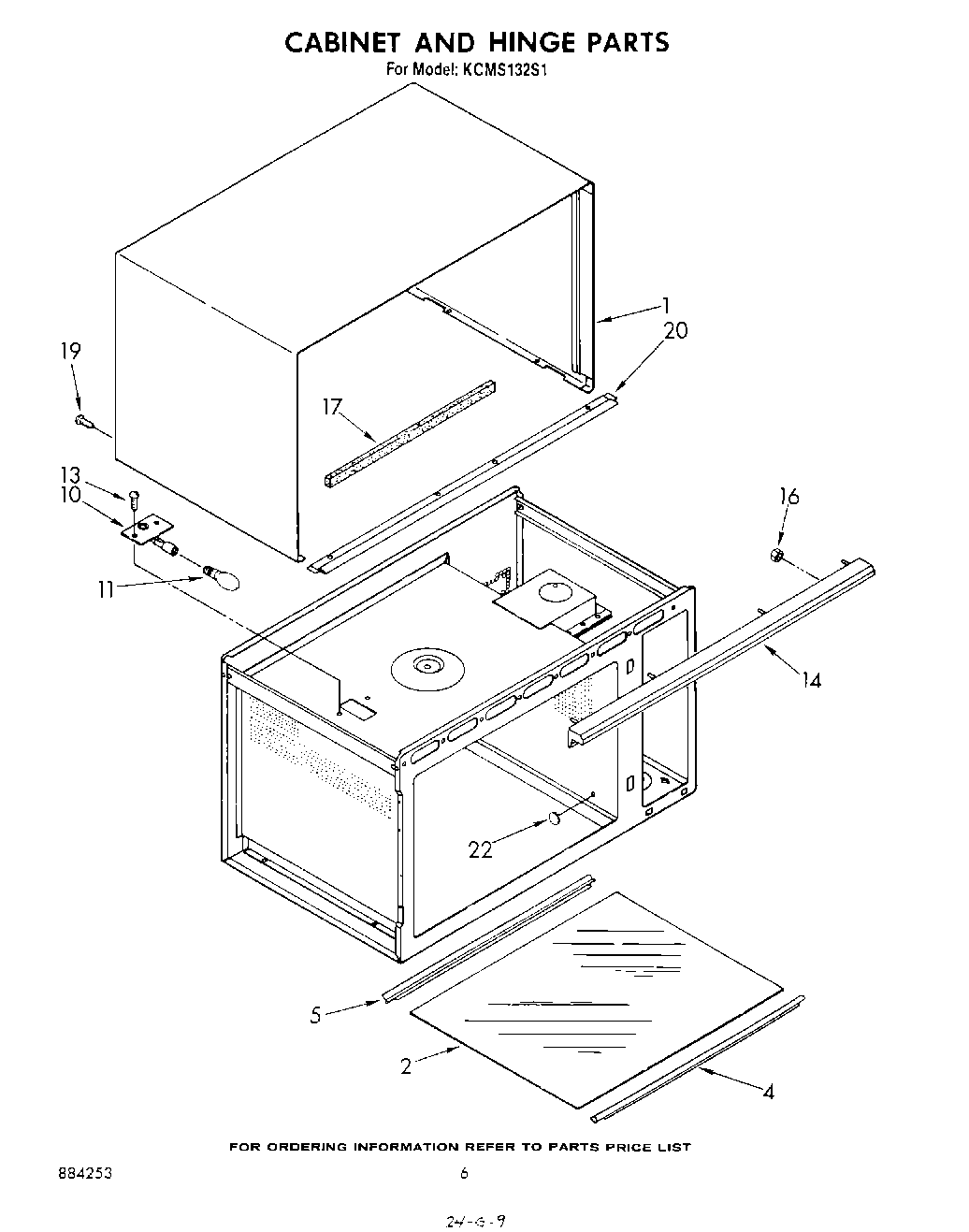

KCMS132S1 04 – CABINET AND HINGEadmin2025-04-26T12:35:52+00:00KCMS132S1 04 – CABINET AND HINGE ProductsPositionProduct1Wrapper, Cabinet2Shelf, Microwave (Install with Silastic 482338)4Trim, Shelf (Front)5Trim, Shelf (Rear)10Snap-In Socket11WP3395618 Whirlpool Light Bulb13screw14Grille, Air16Nut (3)17Seal, Foam19WP488729 Whirlpool Refrigerator Door Screw20Trim, Wrapper Lower22Plug, Hole (4)
