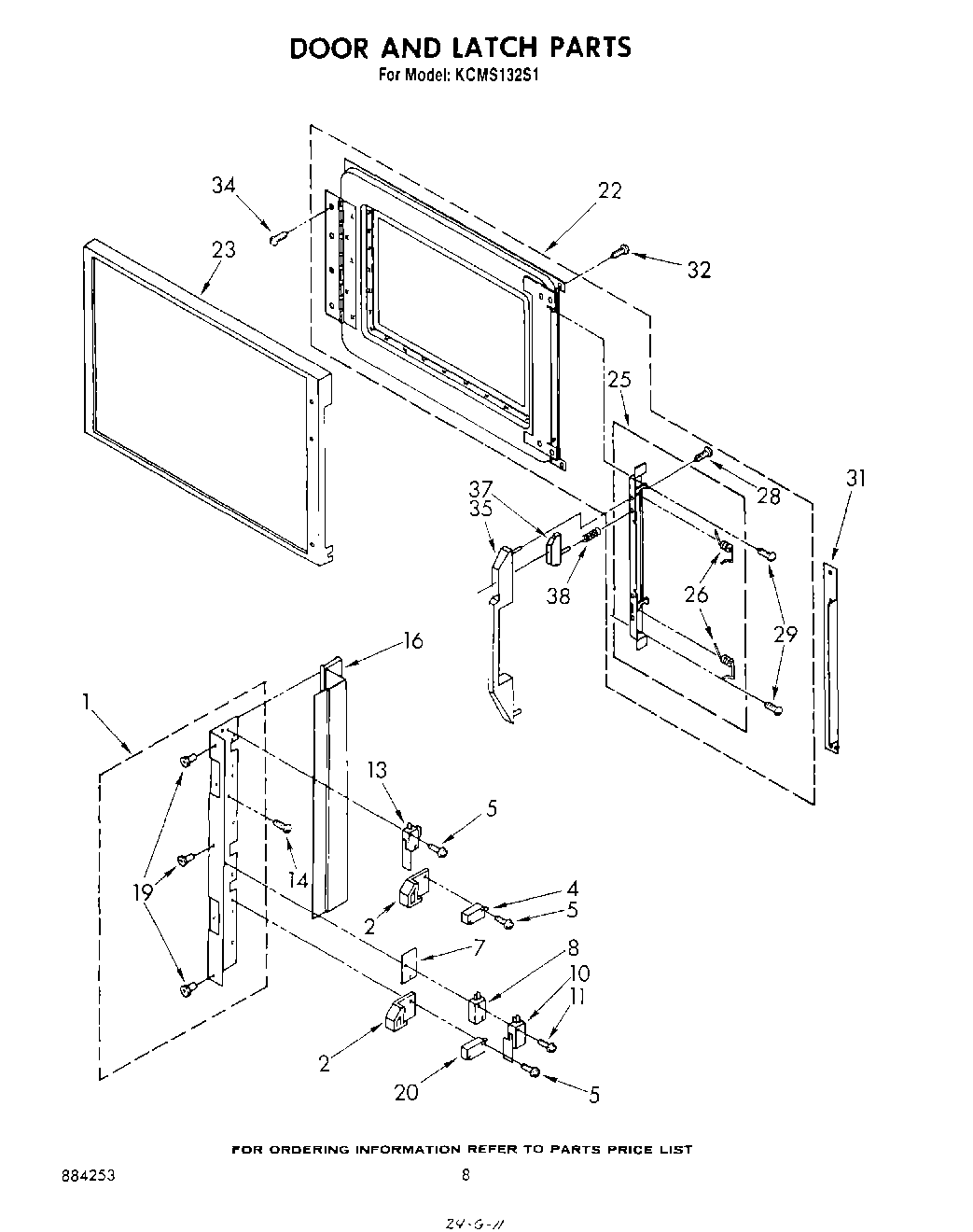

KCMS132S1 06 – DOOR AND LATCH

Products

Position	Product
1	Bracket, Catch
2	Catch (2)
5	WPL 312717
7	Insulator
8	Spring
8	Switch
8	Switch (Alt.)
10	Switch, Light Monitor (Alt.)
10	Switch, Light Monitor (Alt.)
10	Switch, Light/ Monitor
11	Screw, 4-40 x 10 (2)
13	Switch, Miniature
14	WPL 309080
16	shield
19	Rivet, Pop (3)
20	814037 Whirlpool Microwave Switch
22	Door, Inner
23	Frame, Door
25	Latch Assembly
26	Spring, Torsion (2)
28	303776 Whirlpool Dishwasher Screw
29	Screw (2)
31	End Cap
32	Screw, 8-22 (5)
34	WPW10068250 Whirlpool Dishwasher Screw
35	Handle, Door
37	313611 Whirlpool Microwave Door Button
38	Rear Top Burner-Lt. or Rt. (Inc`s 64 & 65)
