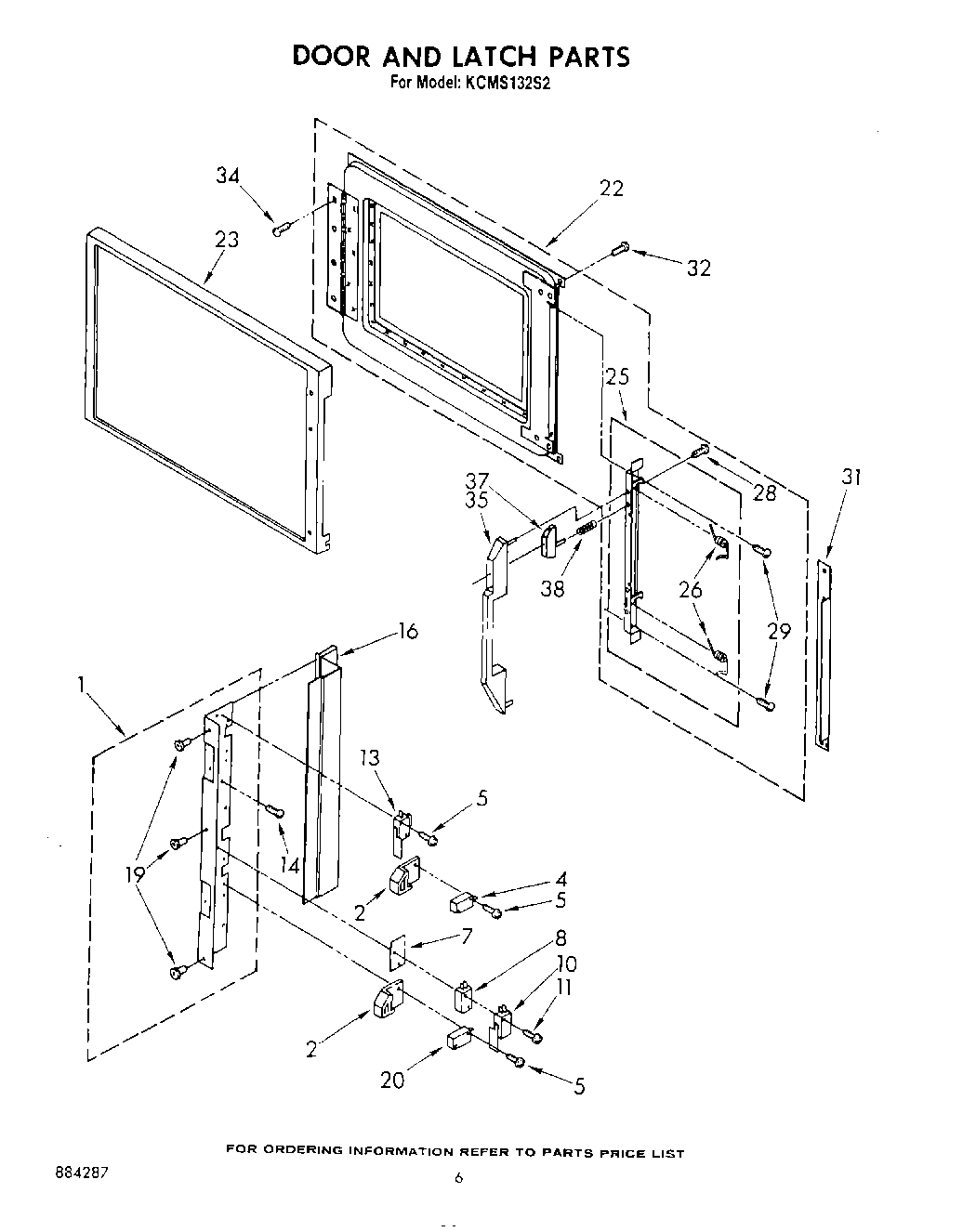

KCMS132S2 06 – DOOR AND LATCH , LITERATURE AND OPTIONAL

Products

Position	Product
	Guide, Use & Care
	Tech Sheet
	WPL LIT3147005
	WPL LIT884287
1	Bracket, Catch
2	Catch (2)
5	WPL 312717
7	Insulator
8	Spring
8	Switch (Alt.)
8	Switch
10	Switch, Light Monitor (Alt.)
10	Switch, Light/ Monitor
10	Switch, Light Monitor (Alt.)
11	Screw, 4-40 x 10 (2)
13	Switch, Miniature
14	WPL 309080
16	shield
19	Rivet, Pop (3)
20	814037 Whirlpool Microwave Switch
22	Door, Inner
23	Frame, Door
25	Latch Assembly
26	Spring, Torsion (2)
28	303776 Whirlpool Dishwasher Screw
29	Screw (2)
31	End Cap
32	Screw, 8-22 (5)
34	WPW10068250 Whirlpool Dishwasher Screw
35	Handle, Door
37	313611 Whirlpool Microwave Door Button
38	WP482338 Whirlpool Refrigerator Adhesive
38	Rear Top Burner-Lt. or Rt. (Inc`s 64 & 65)
38	Wire, 25“ Roll (White 14 GA.)
38	Wire, 25` Roll (Red 14 Ga.)
38	WP261869 Whirlpool Microwave Paint
38	Built-in Kits (30“)
38	Wire, 25` Roll (Black 14 Ga.)
38	24“ Built-In Kit
38	27“built-in Kit
38	Wall Mount Kit
38	242831 Whirlpool Oven Wire
38	Wire (14 Ga. 150 c Blue)
38	261900 Whirlpool Microwave Spray
38	WPL 832985
38	WPL 591014
38	1
38	Wire (14 Ga. 200 c Brown)
38	18 Ga. 80~c Rating (Red)
38	Wire (12 Ga. 150 c Black)
38	Wire (14 Ga. 150 c Yellow)
38	Wire (14 Ga. 150 c Orange)
38	Wire (14 Ga. 150 c Green)
38	Paint, Cord Brown Spray (13 Oz.)
38	Wire (14 Ga. 150 c Brown)
38	Cord Brown
