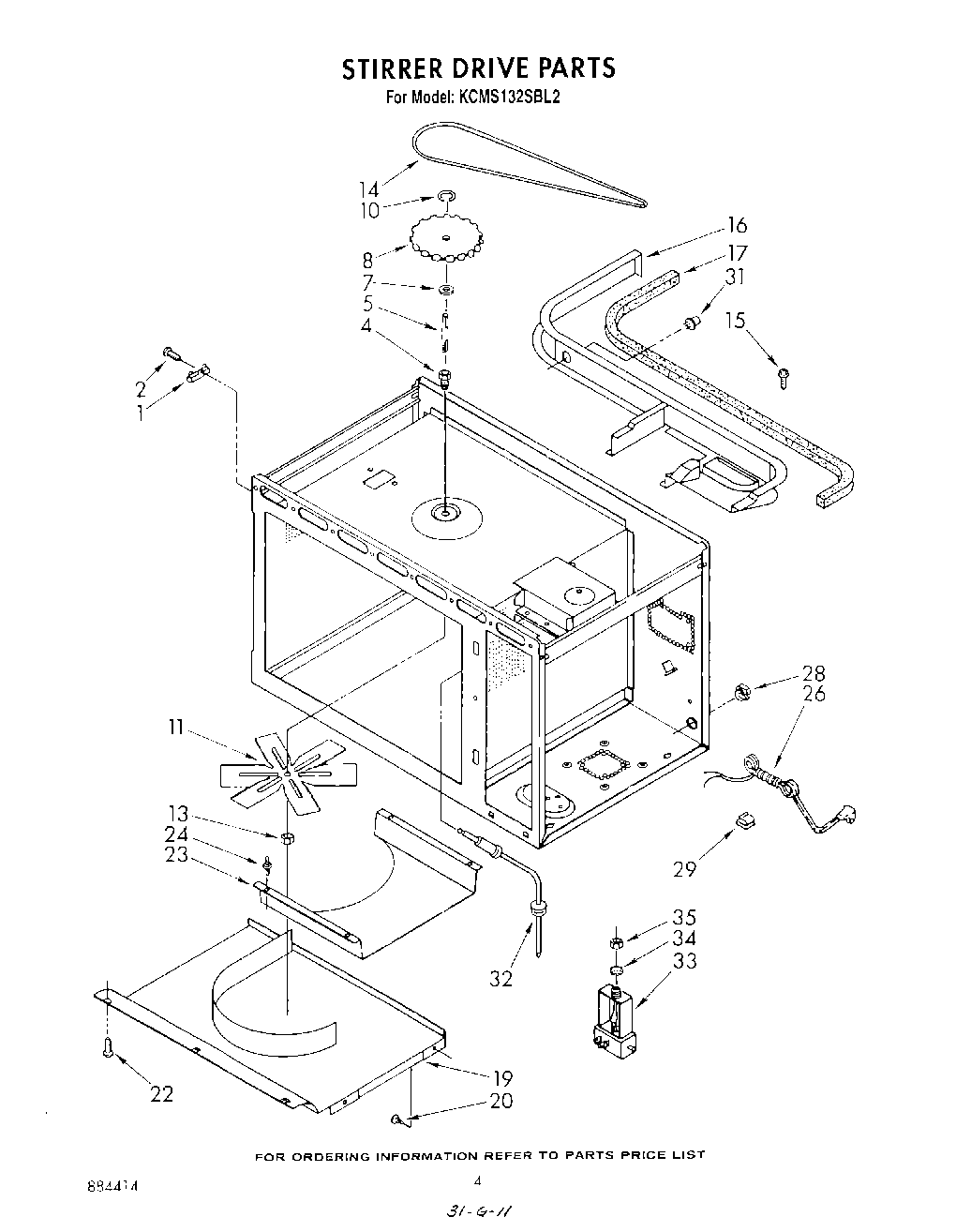

KCMS132SBL2 04 – STIRRER DRIVE

KCMS132SBL2 04 – STIRRER DRIVE

Written by

in

KCMS132SBL2 04 – STIRRER DRIVE

Products

PositionProduct
1Fuse, Thermal
2screw
4Bushing, Stirrer
5Shaft, Stirrer
7Washer, Nylon
8Pulley, Stirrer Blade
10“E“ Ring
11Stirrer Blade
13WP487939 Whirlpool Refrigerator Nut
14WP313646 Whirlpool Microwave Drive Belt
15Fastener (2)
16Baffle, Air
17Seal, Foam
17Seal, Foam
19Silicone Rubber Gasket
20Fastener (4)
22screw, 8-32 x 1/2 (3)
23Plate, Tuning
24Support (4)
26Power, Cord (Alt.)
26Power, Cord (Alt.)
26Power, Cord
28Strain Relief, Bushing
29Clip
31Sensor, Gas
31Screw
32(Alt.)
33Jack, Probe
34Washer, Internal Lock
35Nut
