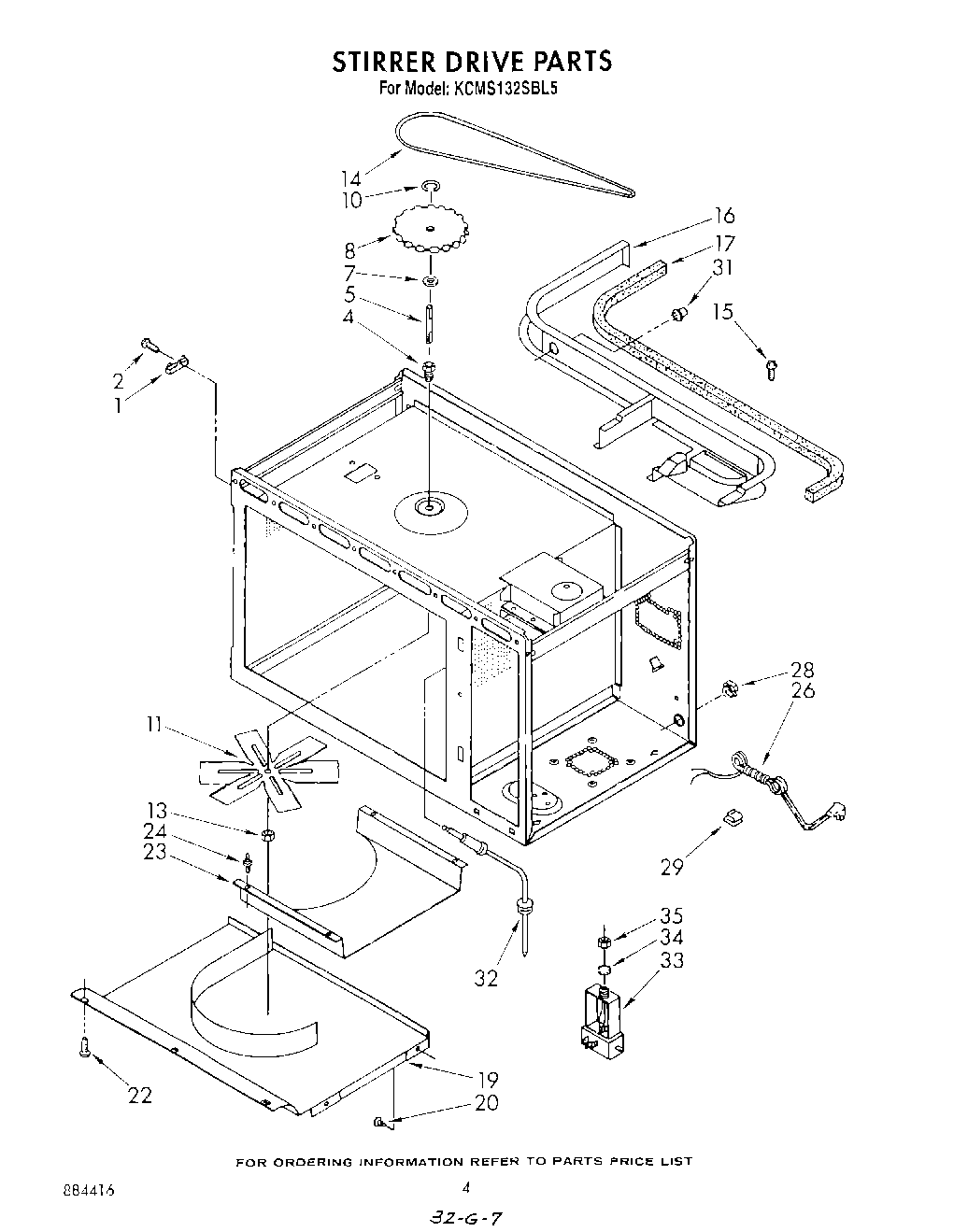

KCMS132SBL5 04 – STIRRER DRIVE

Products

Position	Product
1	Fuse, Thermal
2	screw
4	Bushing, Stirrer
5	Shaft, Stirrer
7	Washer, Nylon
8	Pulley, Stirrer Blade
10	“E“ Ring
11	Stirrer Blade
13	WP487939 Whirlpool Refrigerator Nut
14	WP313646 Whirlpool Microwave Drive Belt
15	Fastener (2)
16	Baffle, Air
17	Seal, Foam
17	Seal, Foam
19	Silicone Rubber Gasket
20	Fastener (4)
22	screw, 8-32 x 1/2 (3)
23	Plate, Tuning
24	Support (4)
26	Power, Cord
26	Power, Cord (Alt.)
26	Power, Cord (Alt.)
28	Strain Relief, Bushing
29	Clip
31	Screw
31	Sensor, Gas
32	(Alt.)
33	Probe Jack
34	Washer, Internal Lock
35	Harness, Wire (Main)
35	Connector
35	Nut
