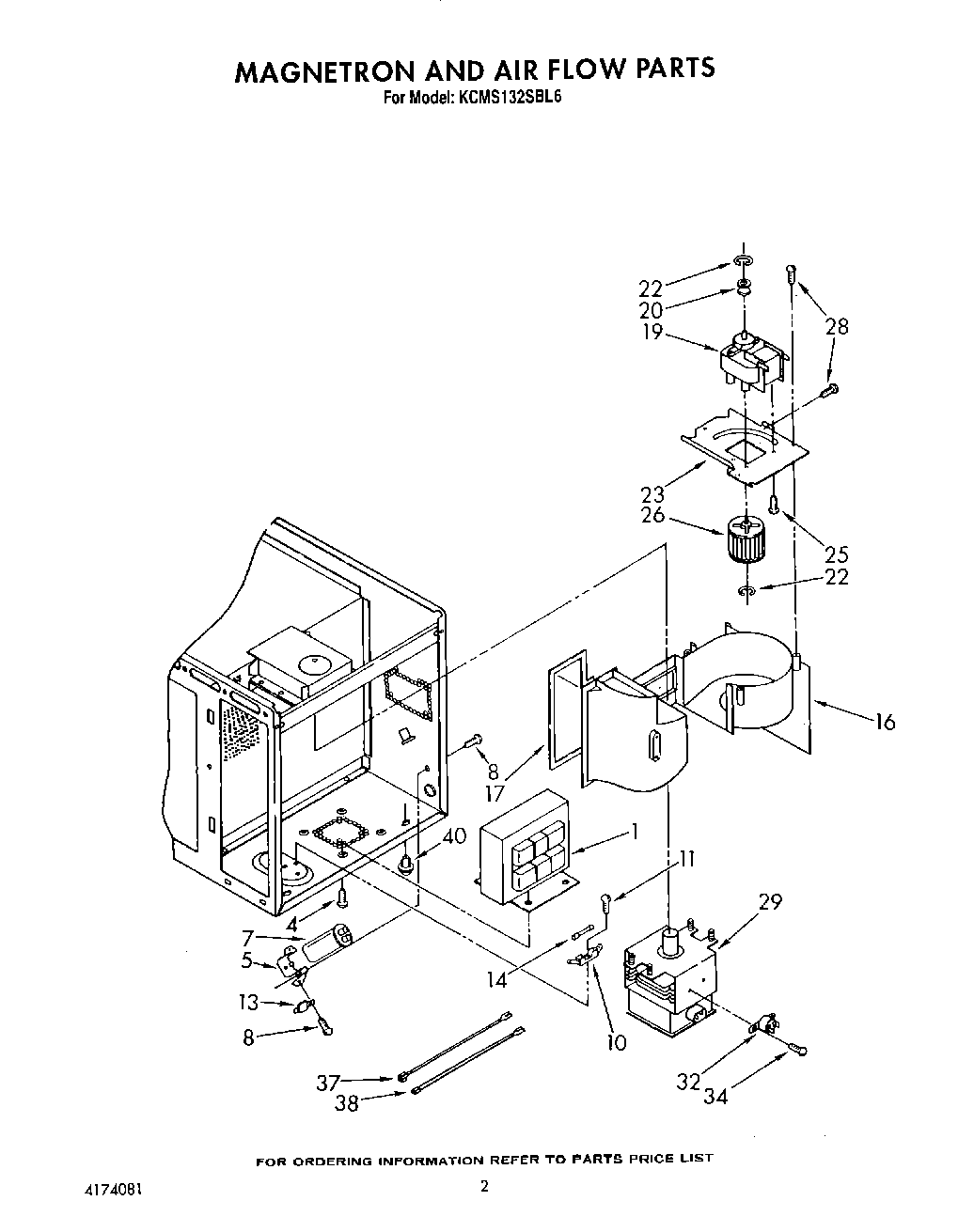

KCMS132SBL6 02 – MAGNETRON AND AIR FLOW, LIT/OPTIONAL

KCMS132SBL6 02 – MAGNETRON AND AIR FLOW, LIT/OPTIONAL

Written by

in

KCMS132SBL6 02 – MAGNETRON AND AIR FLOW, LIT/OPTIONAL

Products

PositionProduct
Repair Parts List
WPL LIT3147571
Tech Sheet
Guide, Use & Care
Guide, Auto Cook
WPL LIT3147005
1Transformer
4Screw, 10-32 x 1/2 Hex Washer W/Ground Ring (10)
5Bracket, Capacitor
7Capacitor
10Fuse Holder
11Screw
13Rectifier, High Voltage
14Fuse (15 Amp)
16Air Duct (Horizontal)
17Seal, Air Duct
19Transmotor
20Pulley, Motor
22“E“ Ring
23Bracket, Motor
25WP486579 Whirlpool Air Conditioner Screw
26Wheel, Blower
29Magnetron
32Thermal Protector
34Screw, 11-16 x 1/2 Double Load Space Thread (5)
34Screw, 6A x 3/8 (2)
34screw
37Jumper, High Voltage Gray 8-11/16“
38Jumper, High Voltage Red (6-5/16“)
40Foot, Base (4)
