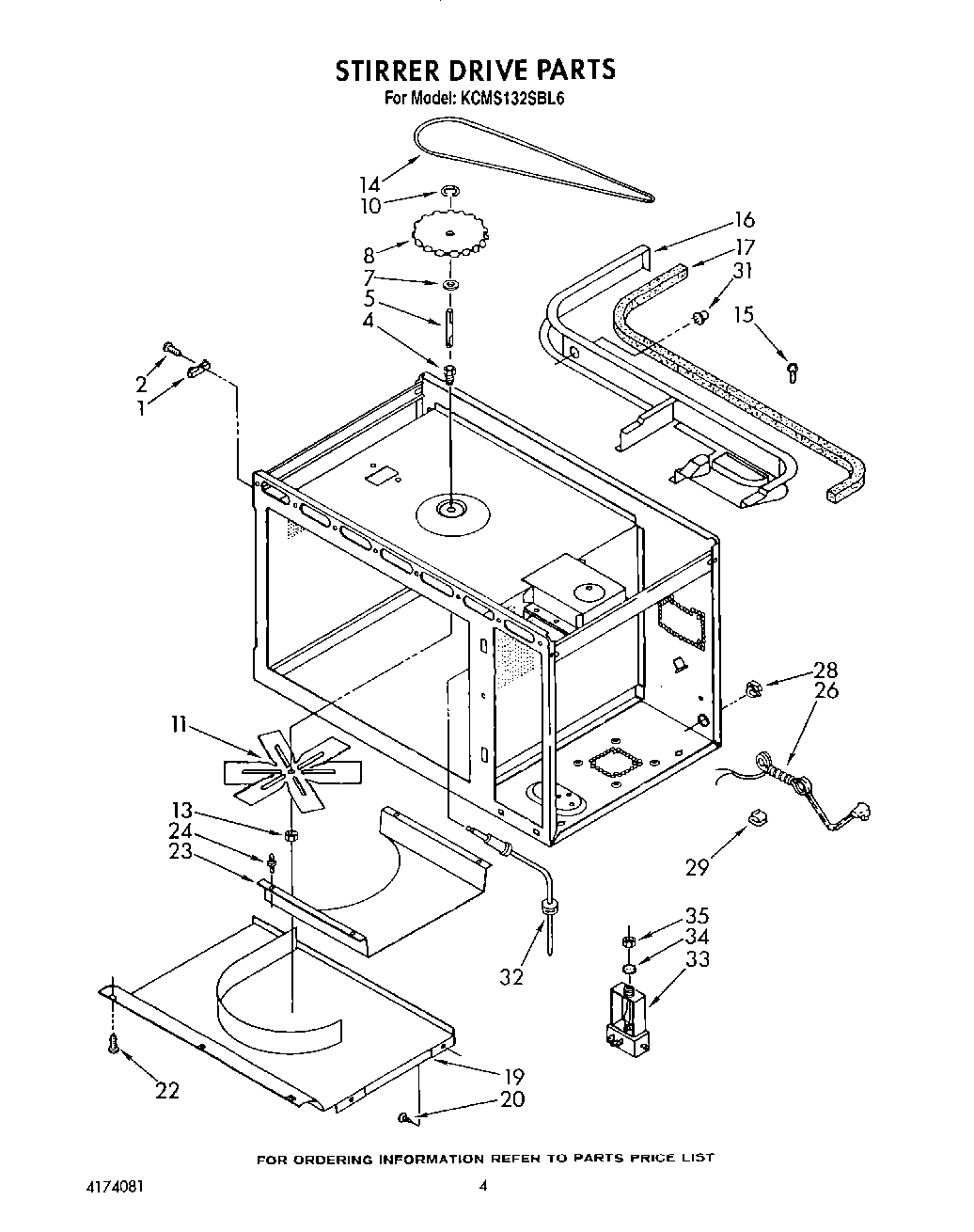

KCMS132SBL6 04 – STIRRER DRIVE

Products

Position	Product
1	Fuse, Thermal
4	Bushing, Stirrer
5	Shaft, Stirrer
7	Washer, Nylon
8	Pulley, Stirrer Blade
10	“E“ Ring
11	Stirrer Blade
13	WP487939 Whirlpool Refrigerator Nut
14	WP313646 Whirlpool Microwave Drive Belt
15	Fastener (2)
16	Baffle, Air
17	Seal, Foam
17	Seal, Foam
19	Silicone Rubber Gasket
20	Fastener (4)
22	screw, 8-32 x 1/2 (3)
23	Plate, Tuning
24	Support (4)
26	Power, Cord
28	Strain Relief, Bushing
29	screw
29	Clip
31	Sensor, Gas
31	Screw
32	(Alt.)
33	Probe Jack
33	Screw 8-32 X 1/2
34	Washer, Internal Lock
35	Nut
