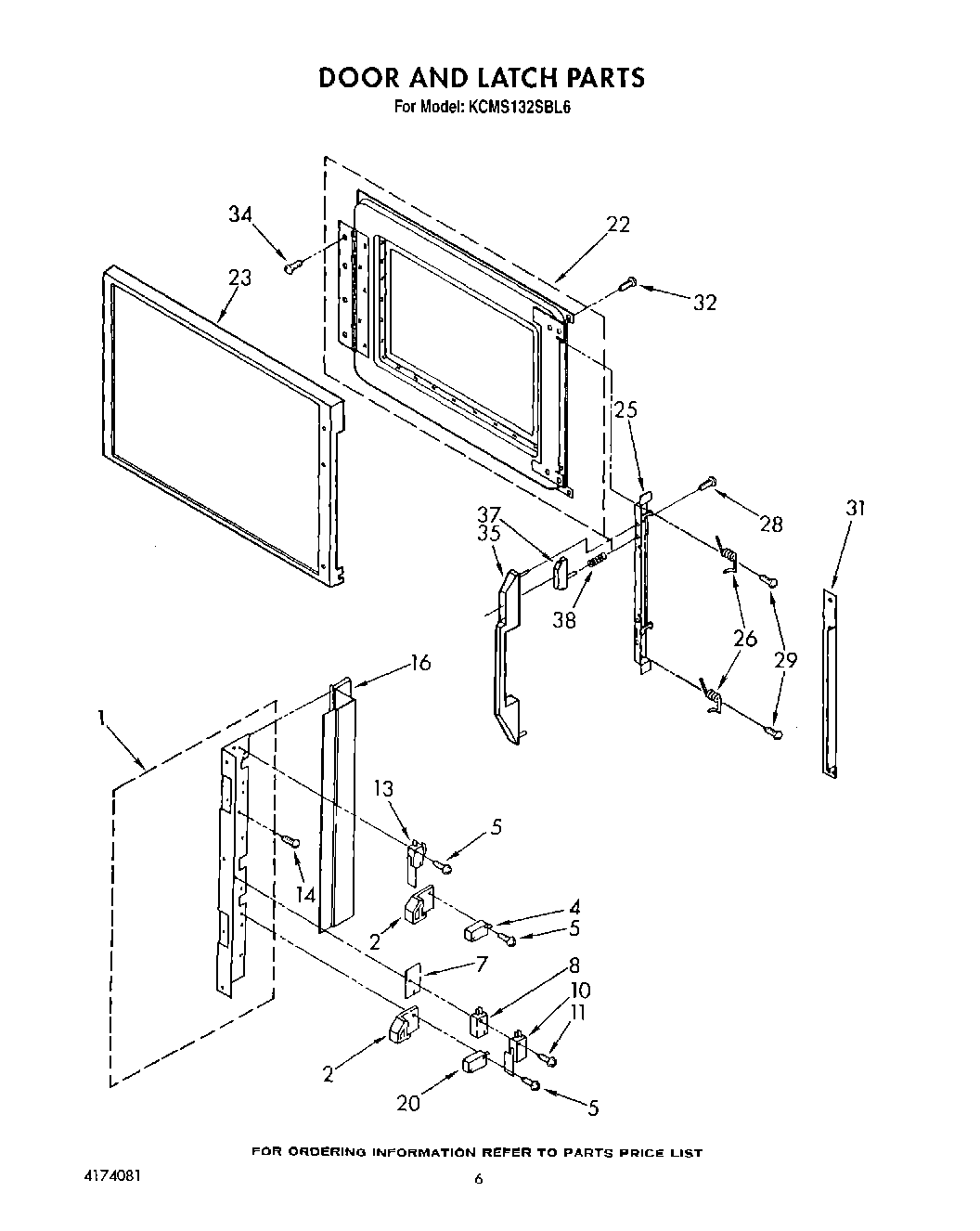

KCMS132SBL6 05 – DOOR AND LATCH

Products

Position	Product
1	Bracket, Catch
2	Catch (2)
7	Insulator
8	Switch
10	Switch, Light/ Monitor
11	Screw, 4-40 x 10 (2)
13	WPL 312717
13	Switch, Miniature
14	WPL 309080
16	Fastener (4)
16	Shield
20	814037 Whirlpool Microwave Switch
22	Door, Inner
23	Frame, Door
25	Latch Assembly
26	Spring, Torsion (2)
28	303776 Whirlpool Dishwasher Screw
29	Screw (2)
31	End Cap
34	WPW10068250 Whirlpool Dishwasher Screw
35	Handle, Door
37	313611 Whirlpool Microwave Door Button
38	Screw, 8-22 (5)
38	Rear Top Burner-Lt. or Rt. (Inc`s 64 & 65)
